Y900B/7 890-960MHz Yagi Antenna 10dBi | GSM 900MHz Directional Antenna N-Female 200W

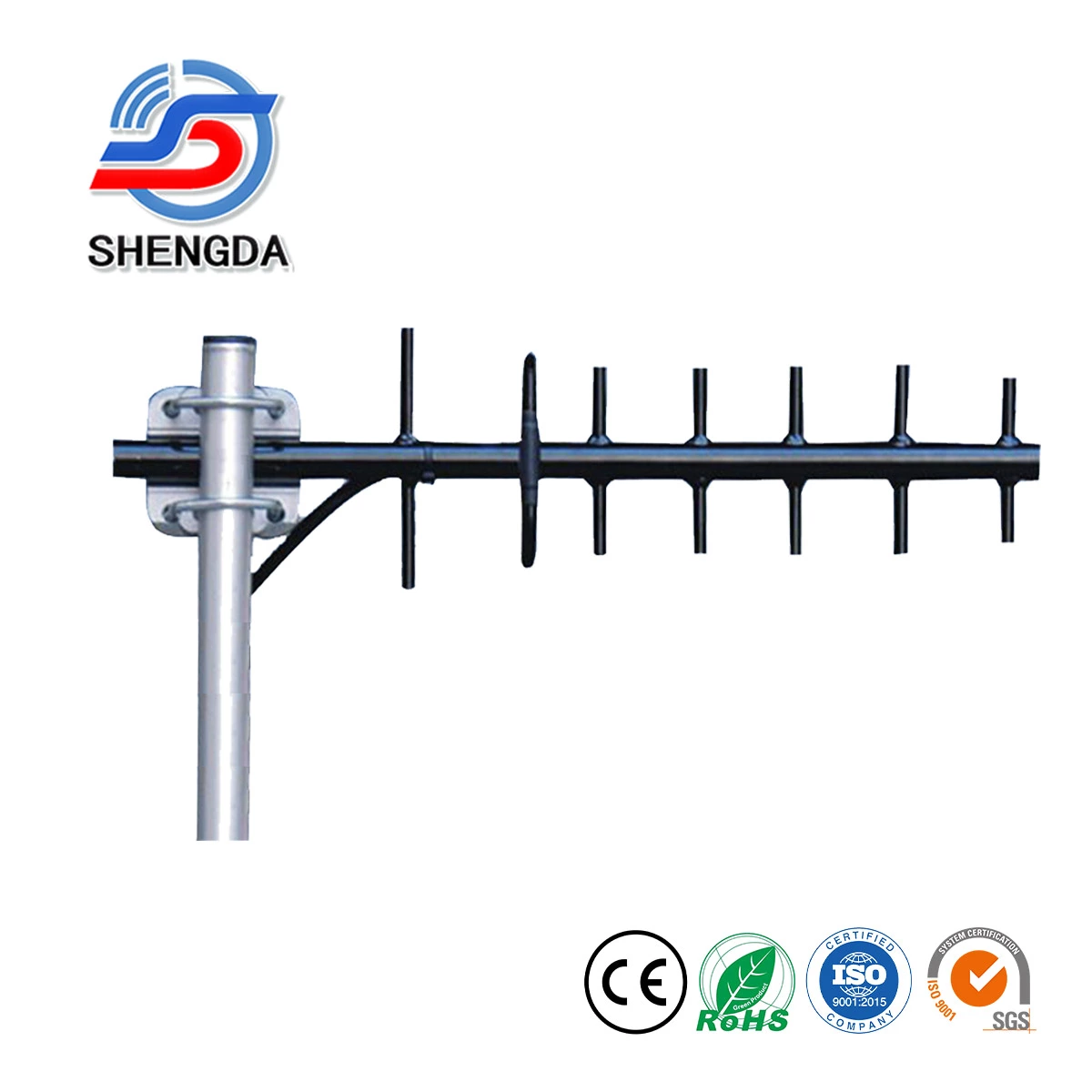

The SHENGDA Y900B/7 is a high-performance directional Yagi antenna designed for 890–960MHz GSM and UHF communication systems. With 10dBi gain, 50 Ohm impedance, and low signal loss performance, it delivers focused signal transmission for extended coverage and improved link stability.
Featuring an N-Female connector, 200W power handling, and durable copper and aluminum construction, this 630mm antenna is ideal for base stations, signal enhancement, and point-to-point wireless applications.
- Model No.
- Y900B/7
- Type
- Yagi Antenna
- Place of Origin
- China
- Frequency Range
- 890-960MHZ
- Gain
- 10dBi
- Connector
- N-Female

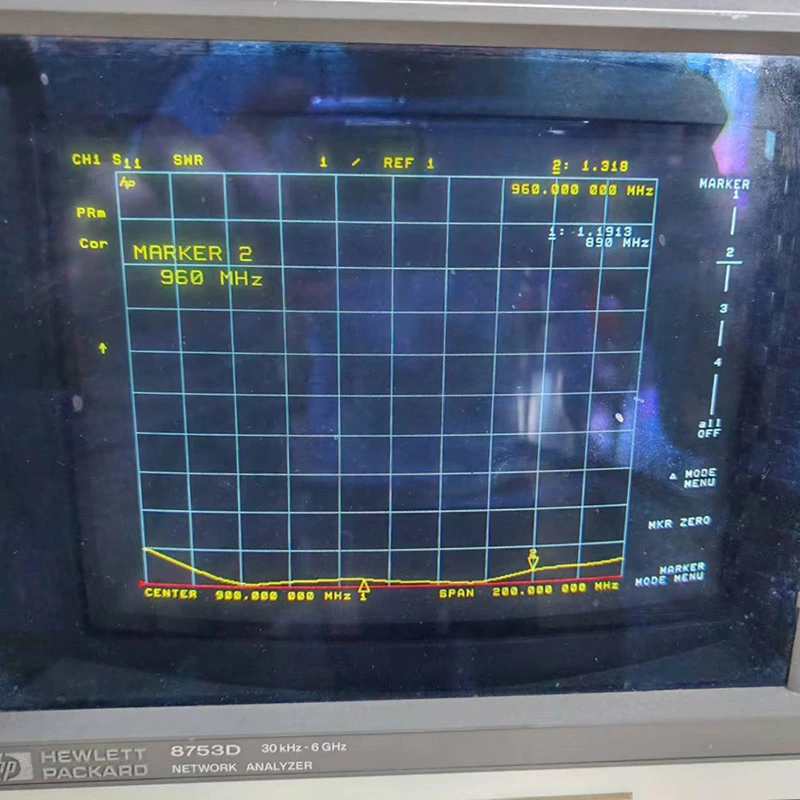

- V.S.W.R
- Less than 1.5
- Element
- 7 elements
- Accept OEM
- yes
- Length
- 630mm
- Material
- Alloyed weld
Product Overview:
The Y900B/7 is engineered for directional communication in the 890–960MHz frequency band, commonly used in GSM 900 systems and UHF wireless networks. Its optimized Yagi structure concentrates signal energy in a specific direction, improving transmission distance and reducing interference from surrounding signals.

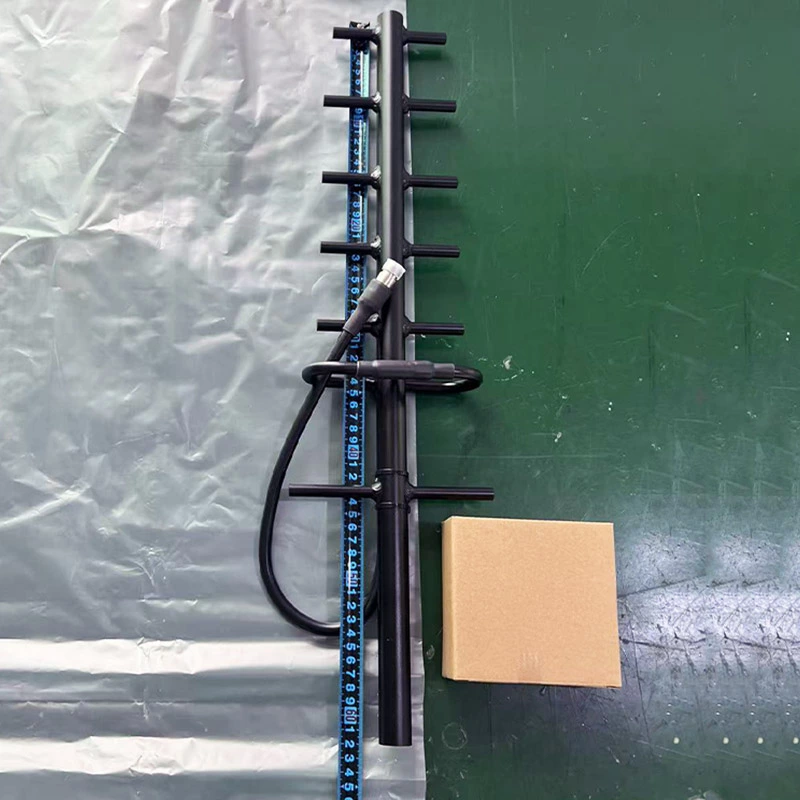

With a compact 630mm length, this antenna offers a balance between high gain performance and installation flexibility.
Electrical Specifications:
-
Frequency Range: 890–960 MHz
-
Gain: 10 dBi
-
Impedance: 50 Ohm
-
Maximum Input Power: 200W
-
Polarization: Vertical
-
Radiation Pattern: Directional
The focused radiation pattern enhances long-distance communication while maintaining signal stability.
Mechanical Specifications：
-

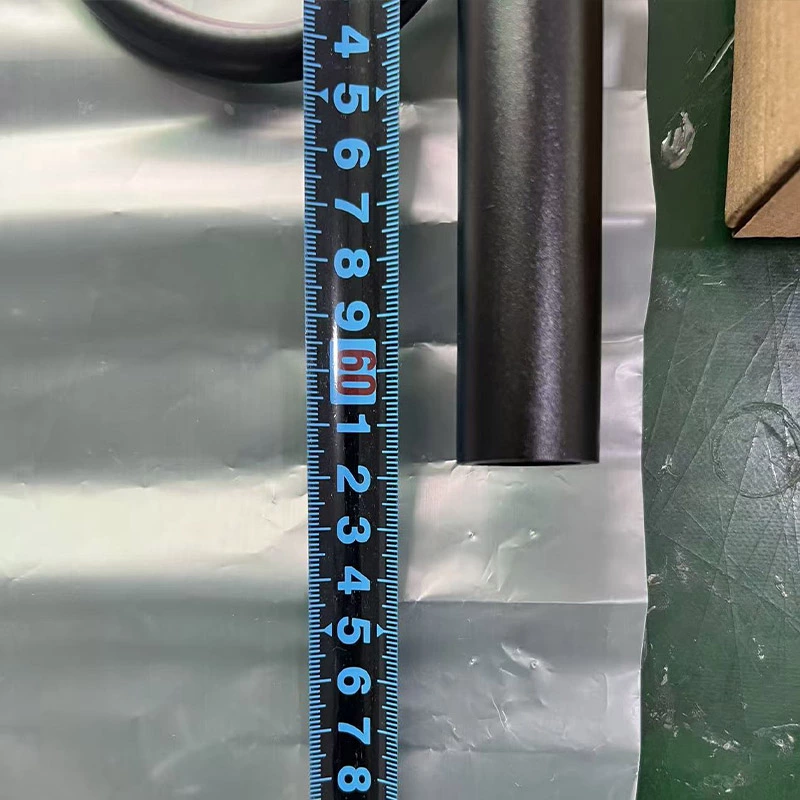

Height: 630 mm
-

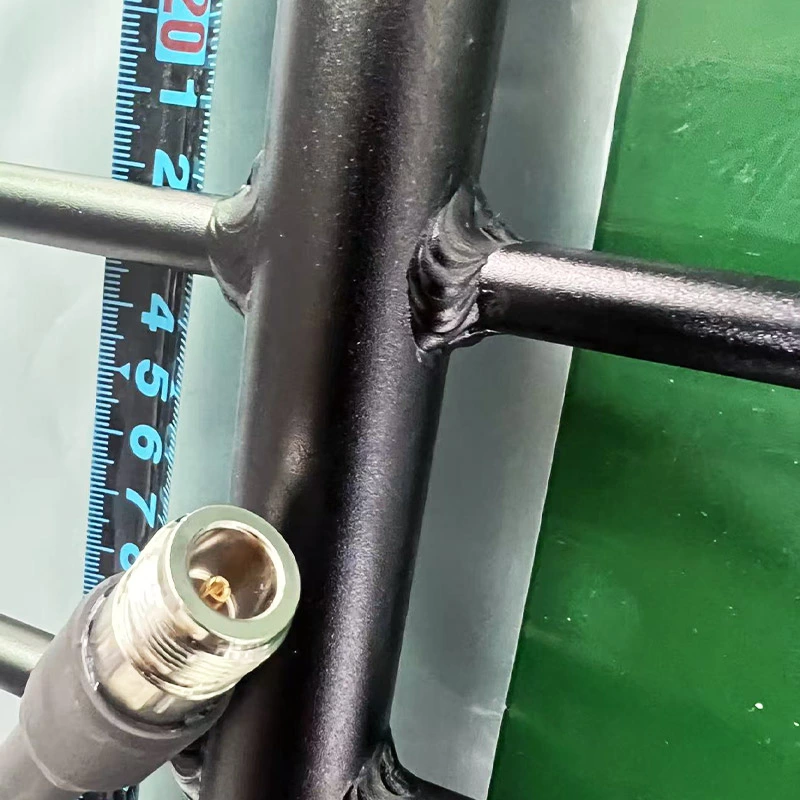

Connector Type: N-Female
-
Material: Copper (CU) & Aluminum (AL)
-
Operating Temperature: -50°C to 80°C
The combination of copper and aluminum materials ensures excellent conductivity, corrosion resistance, and structural durability for outdoor installations.

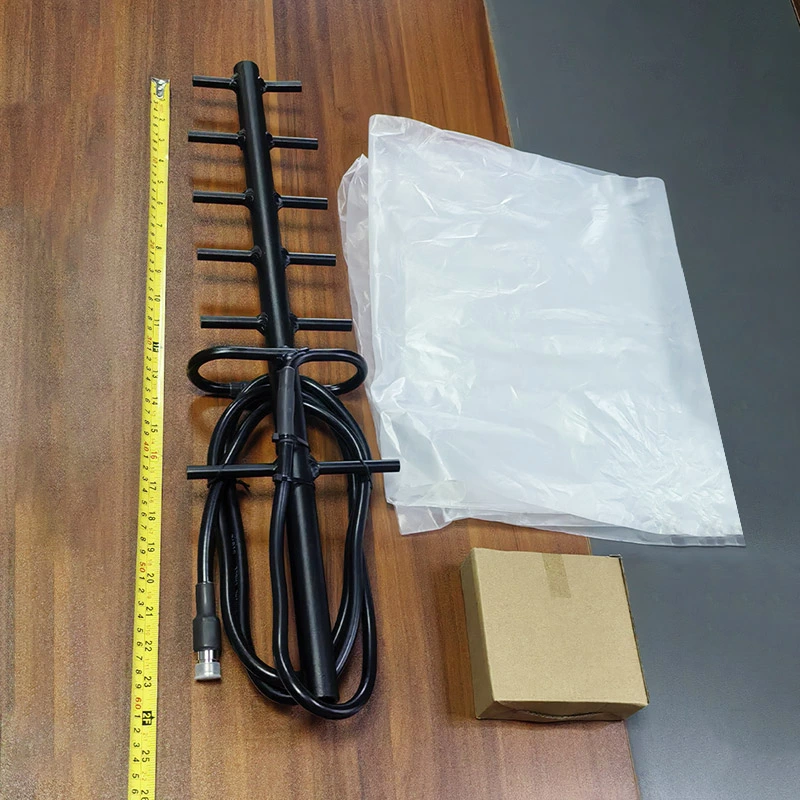

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
