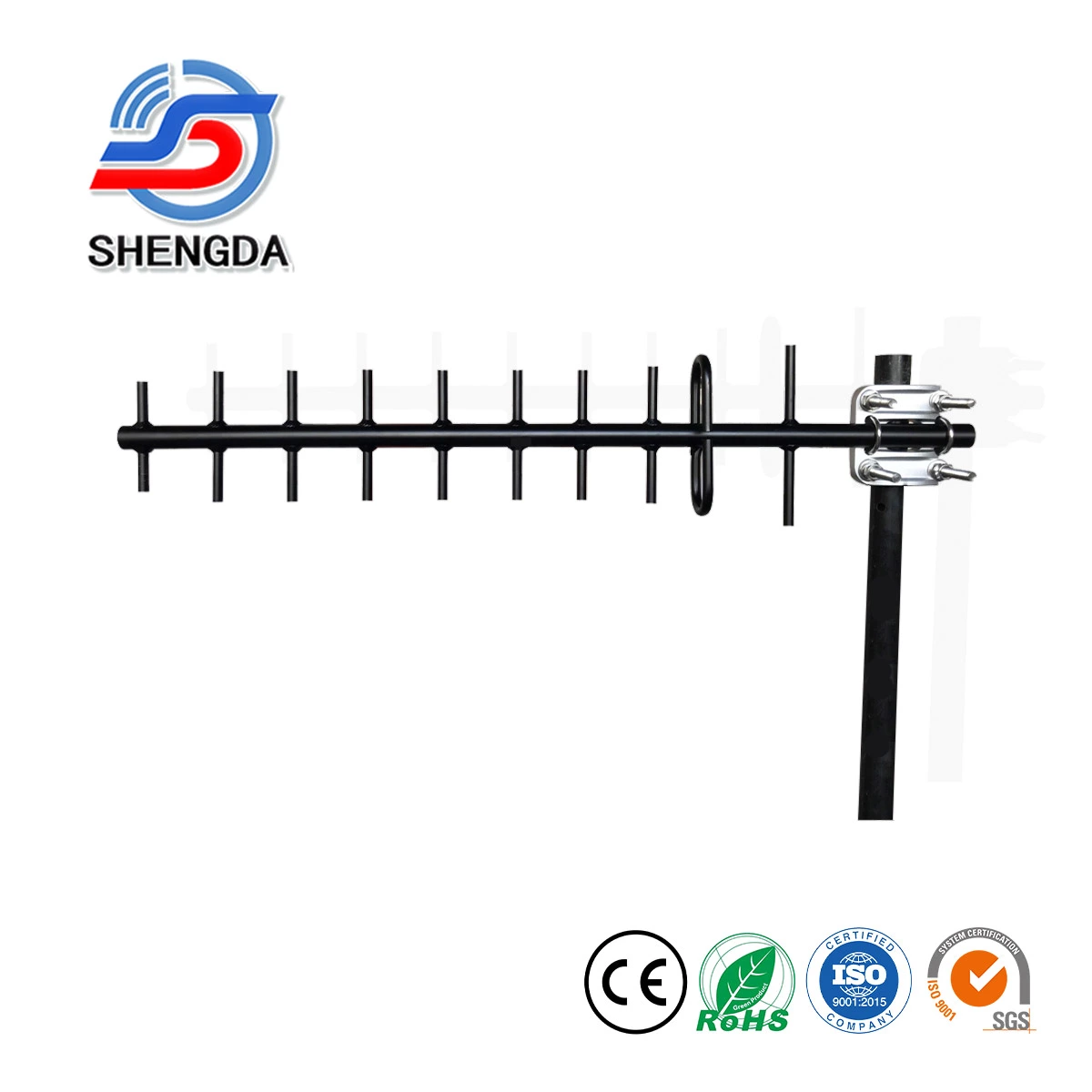

Y400B-10 400-470MHz 10 Element Yagi Antenna 12dBi | UHF Directional Base Station Antenna with N-Female & LMR400 Cable
This 400–470MHz UHF Yagi antenna features a 10-element directional design delivering 12dBi high gain for long-range signal transmission. With low VSWR (<1.5), 200W power handling, and 50 Ohm impedance, it ensures efficient and stable communication performance.
Equipped with an N-Female connector and 0.5m LMR400 low-loss cable, this 980mm antenna is ideal for base stations, repeater systems, point-to-point links, and industrial wireless applications.
- Model No.
- Y400B-10
- Type
- Yagi Antenna
- Place of Origin
- China
- Frequency Range
- 400-470MHz
- Gain
- 12dBi
- Connector
- N-Female
- V.S.W.R
- Less than 1.5
- Element
- 10 elements
- Accept OEM
- yes
- Length
- 980mm
- Material
- Aluminium Alloy Weld
Product Overview:
This high-gain UHF Yagi antenna is engineered for directional communication within the 400–470MHz frequency band. Featuring a 10-element optimized structure, it delivers 12dBi gain for enhanced signal strength and extended transmission distance.
Its directional radiation pattern focuses energy toward a specific direction, improving signal coverage and reducing interference from unwanted sources.
Electrical Specifications:
-
Frequency Range: 400–470 MHz
-
Gain: 12 dBi
-
VSWR: < 1.5
-
Impedance: 50 Ohm
-
Maximum Power: 200W
-
Polarization: Vertical
Low VSWR ensures minimal signal reflection and efficient power transmission, improving overall communication stability.
Mechanical Specifications：
-
Antenna Length: 980 mm
-
Weight: 1.3 kg
-

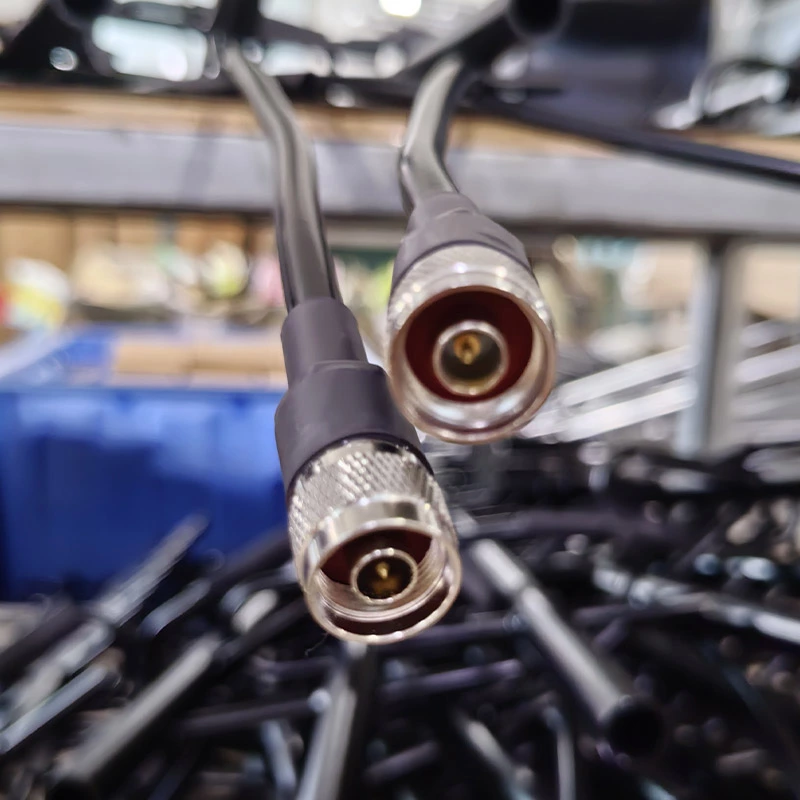

Connector: N-Female
-
Cable: 0.5m LMR400 (Low-Loss Cable)
-
Color: Black
-
Operating Temperature: -40°C to 80°C
The antenna structure is designed for outdoor durability, supporting stable performance in harsh environmental conditions.

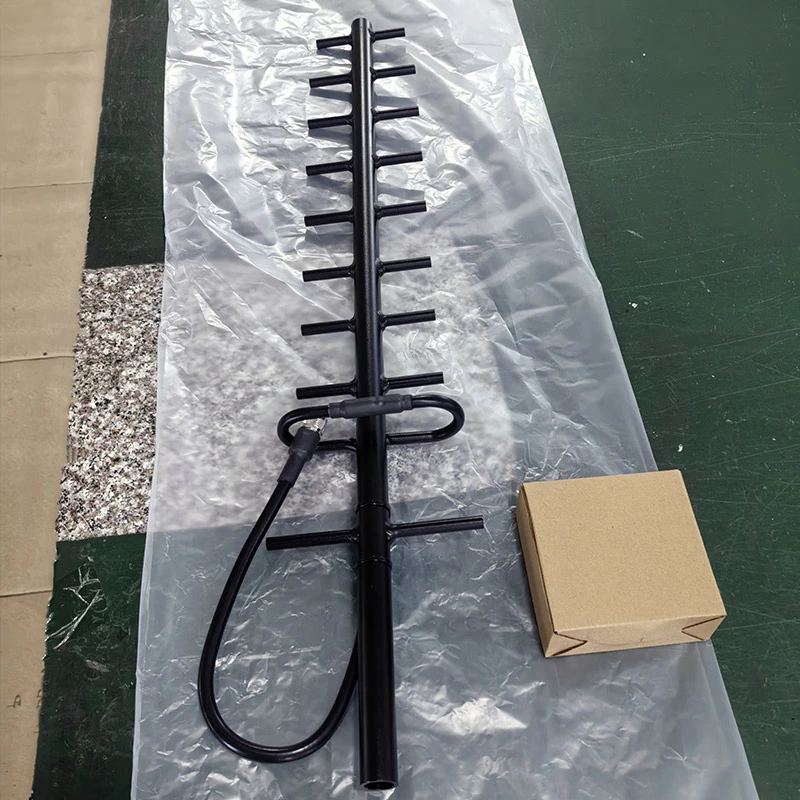

- part of antenna is individual packed in PE/PVC Bag.

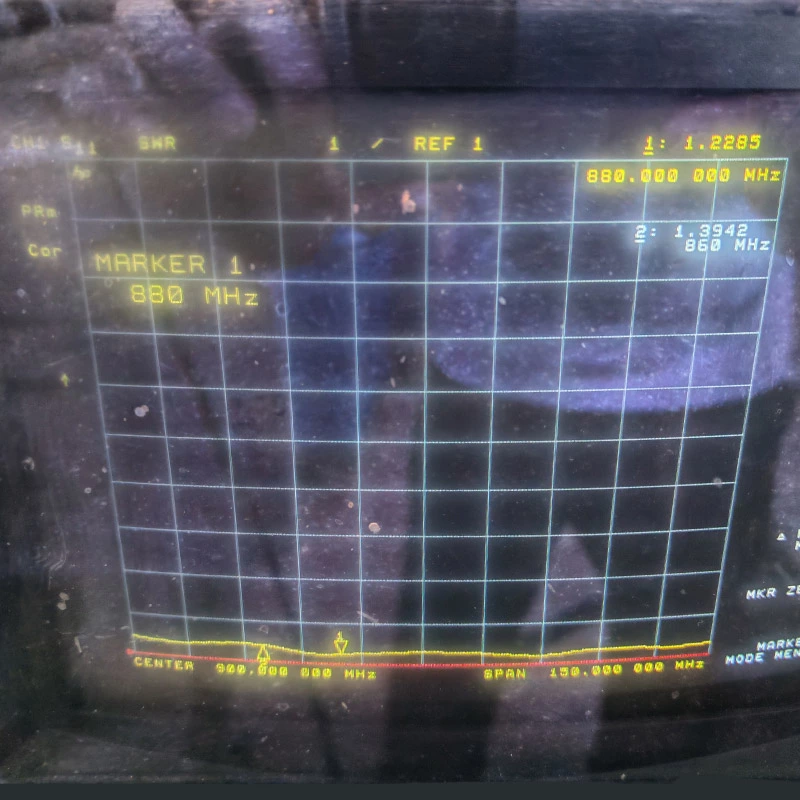

- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
