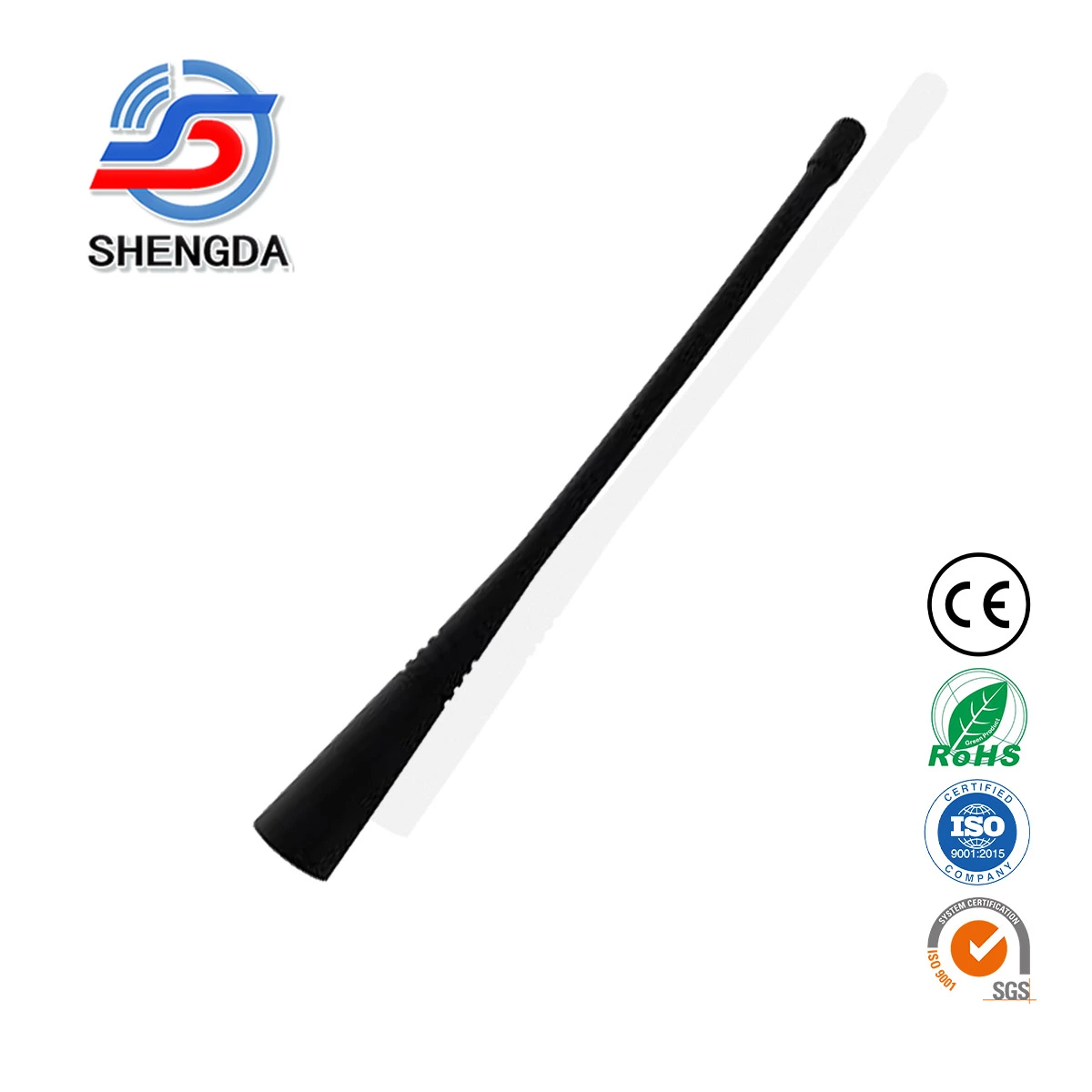

SD-VX160L 400-520MHz Handheld Antenna | 160mm 2.15dBi Vertical SMA-Male
The SHENGDA SD-VX160L is a compact 160 mm handheld antenna designed for 400-520 MHz UHF communication. With a gain of 2.15 dBi, vertical polarization, and low VSWR (≤1.5), it provides reliable and stable signal performance for mobile and portable radios.
Equipped with an SMA-Male connector and screw installation, the SD-VX160L is suitable for handheld radios in professional, industrial, or field communication applications. Its durable construction ensures consistent performance during outdoor operations.
- Model No.
- SD-VX160L
- Type
- Walkie Talkie Antenna
- Place of Origin
- China
- Frequency Range
- 400-520MHz
- Gain
- 2.15dBi
- Connector
- SMA-Male
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 16cm
Product Overview
The SD-VX160L is engineered for handheld UHF radios, offering vertical polarization and omni-directional radiation for consistent communication coverage. Its compact 160 mm length makes it lightweight and portable, ideal for field operations, mobile radios, and emergency communication devices.
Electrical Specifications
-
Frequency Range: 400-520 MHz
-
Gain: 2.15 dBi
-
Impedance: 50 Ohm
-
VSWR: ≤1.5
-
Polarization: Vertical
-
Radiation Pattern: Omni-directional
Mechanical Specifications
-

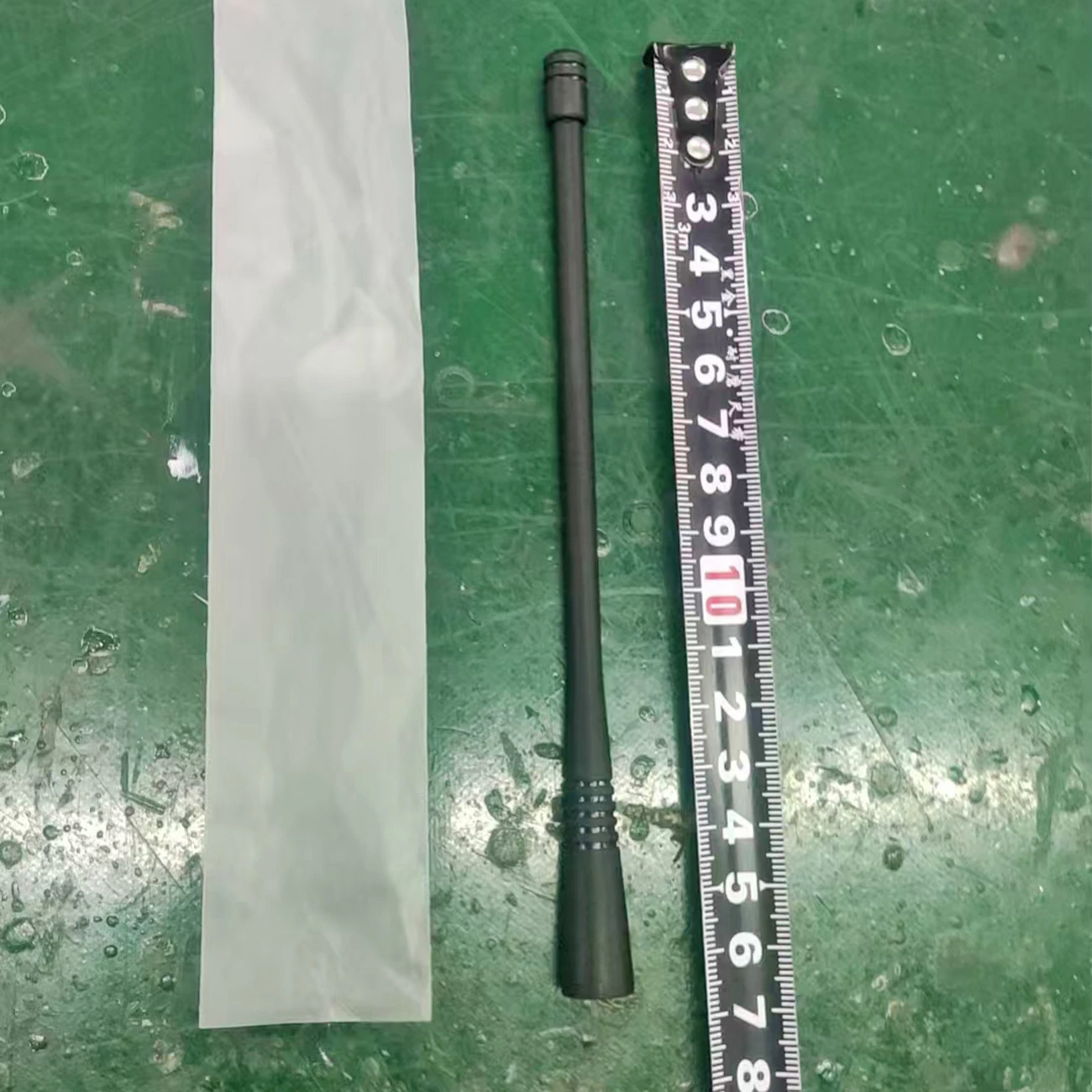

Length: 160 mm
-
Connector: SMA-Male
-
Installation Type: Screw Mount
-
Construction: Durable for handheld use

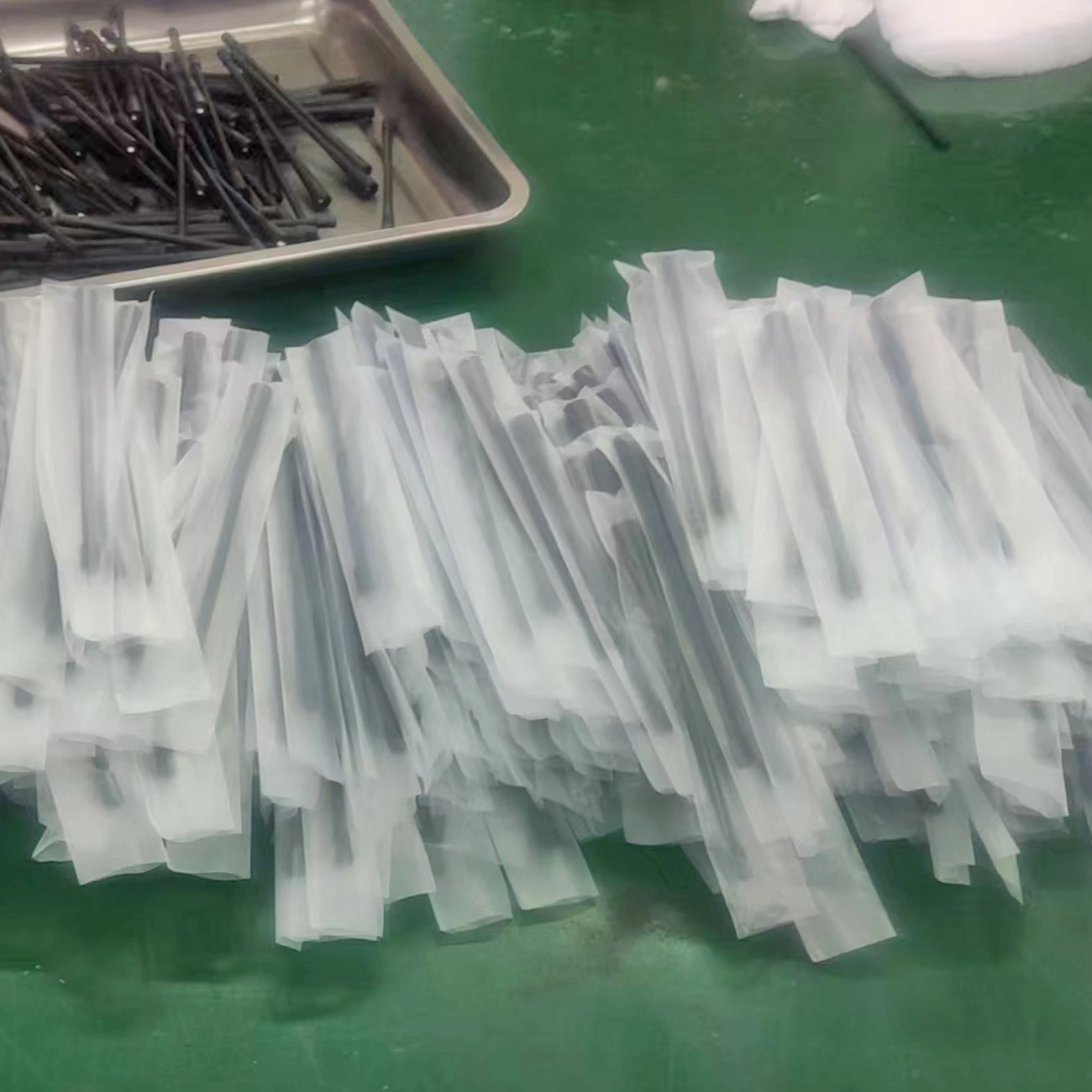

- part of antenna is individual packed in PE/PVC Bag.

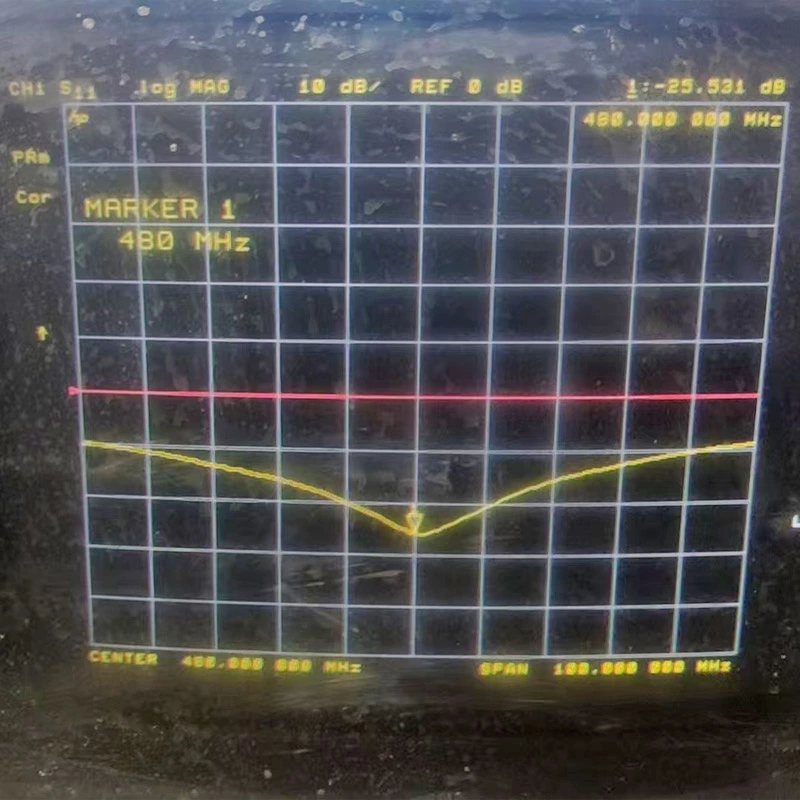

- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
