MC200SP 136-174MHz VHF Mobile Antenna 3.4dBi PL259 100W Stainless Steel Vehicle Radio Antenna
MC200SP is a high-performance VHF mobile antenna operating at 136–174MHz, designed for vehicle-mounted radio systems. With 3.4dBi gain, low VSWR (<1.5), and 100W power handling, it delivers stable omni-directional communication for commercial and professional radio applications.
Built with stainless steel construction and equipped with a PL259 connector, this 1410mm antenna ensures durability, signal stability, and reliable outdoor performance.
- Model No.
- MC200SP
- Type
- Combination Antenna
- Place of Origin
- China
- Frequency Range
- 136-174MHz
- Gain
- 3.4dBi

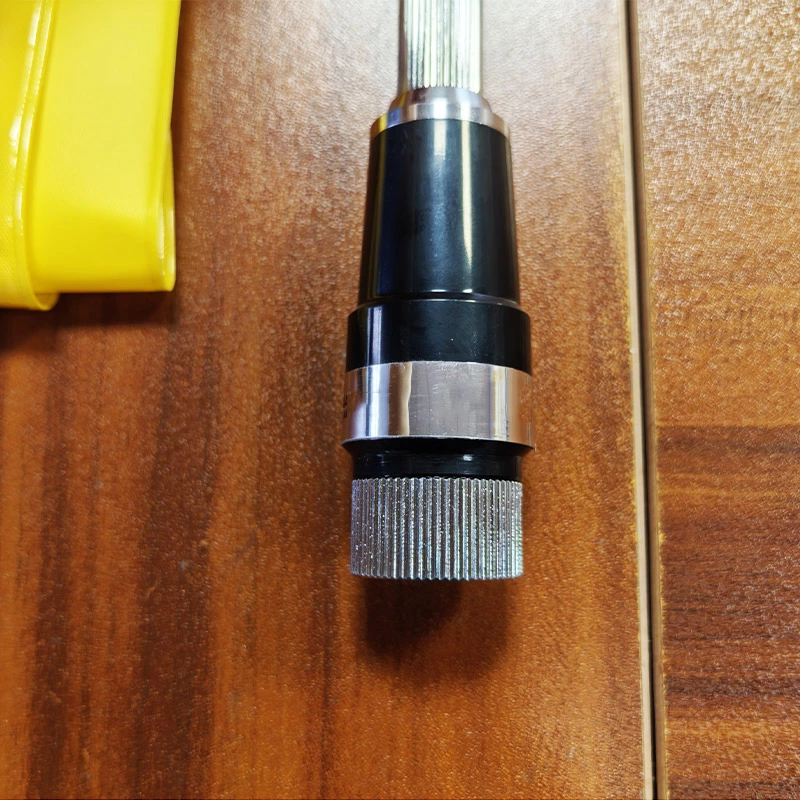

- Connector
- PL259
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Color
- Black
- Length
- 1410mm
- Material
- Stainless Steel
Optimized VHF Coverage
The MC200SP is engineered for full VHF band coverage from 136MHz to 174MHz, supporting:
-
Commercial VHF mobile radios
-
Transportation and fleet communication
-
Public safety vehicles
-
Industrial site communication
Its tuned internal structure ensures consistent signal efficiency across the entire frequency band.
Electrical Performance
-
Frequency: 136–174MHz
-
Gain: 3.4dBi
-
VSWR: <1.5
-
Impedance: 50 Ohm
-
Maximum Input Power: 100W
-
Polarization: Vertical
-
Radiation: Omni-directional
Low VSWR reduces signal reflection and improves transmission efficiency, ensuring clearer and more stable communication.
Mechanical Structure
-

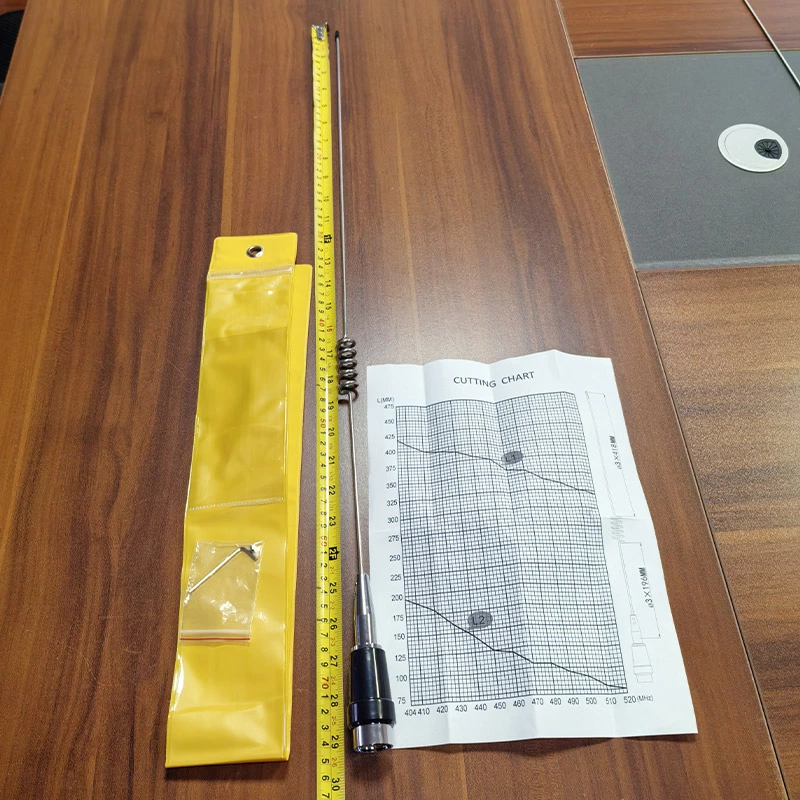

Antenna Length: 1410mm
-
Weight: 0.15kg
-
Material: Stainless Steel
-
Color: Black
-
Operating Temperature: -40℃ to 80℃
The stainless steel whip structure provides strong durability, corrosion resistance, and flexibility, making it suitable for long-term outdoor vehicle installation.

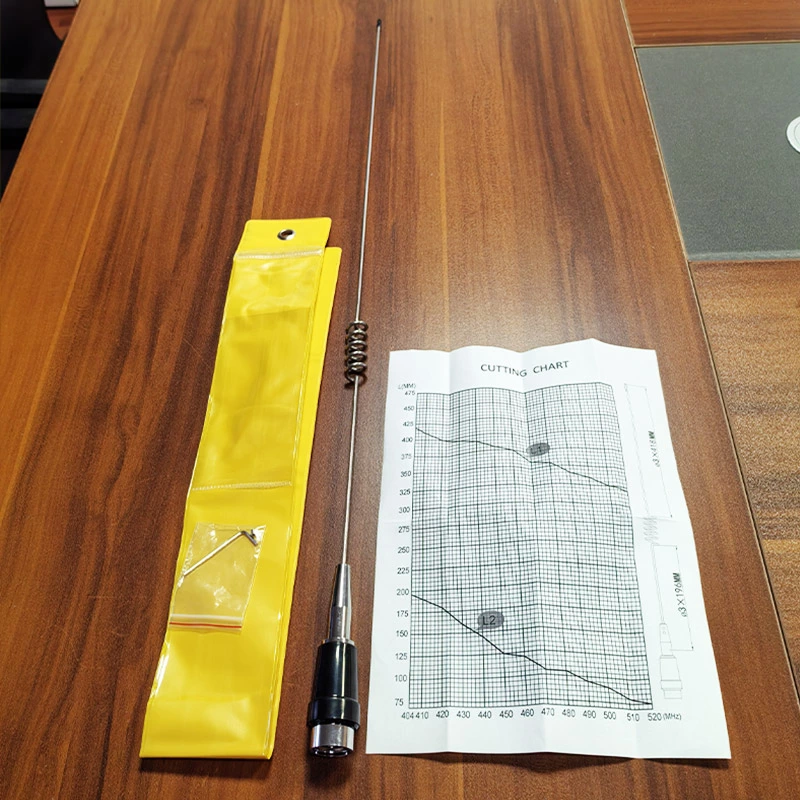

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
