MC200 340-520MHz UHF Mobile Antenna | 3.4dBi PL259 Vehicle Radio Antenna 50Ω Omni Directional
MC200 is a wideband UHF mobile antenna covering 340–520MHz, designed for vehicle-mounted radio communication systems. With 3.4dBi gain, low VSWR (<1.5), and 50Ω impedance, it delivers stable omni-directional signal performance across public safety and commercial UHF bands.
Featuring a PL259 connector, 57cm compact length, and durable construction, the MC200 is ideal for mobile radios, fleet communication, and outdoor vehicle applications.
- Model No.
- MC200
- Type
- Combination Antenna
- Place of Origin
- China
- Frequency Range
- 340-520MHz
- Gain
- 3.4dBi
- Connector
- PL259
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Color
- Black
- Length
- 57cm
- Material
- Stainless Steel
Wideband UHF Coverage
The MC200 supports a broad frequency range from 340MHz to 520MHz, making it compatible with:
-
UHF commercial radio systems
-
Public safety communication bands
-
Private security and logistics radios
-
Industrial and site communication networks
Its wideband capability reduces the need for multiple antennas across different UHF segments.
Electrical Performance
-
Frequency Range: 340–520 MHz
-
Gain: 3.4 dBi
-
VSWR: < 1.5
-
Impedance: 50 Ohm
-
Radiation Pattern: Omni-directional
-
Maximum Input Power: 50W
-
Connector: PL259

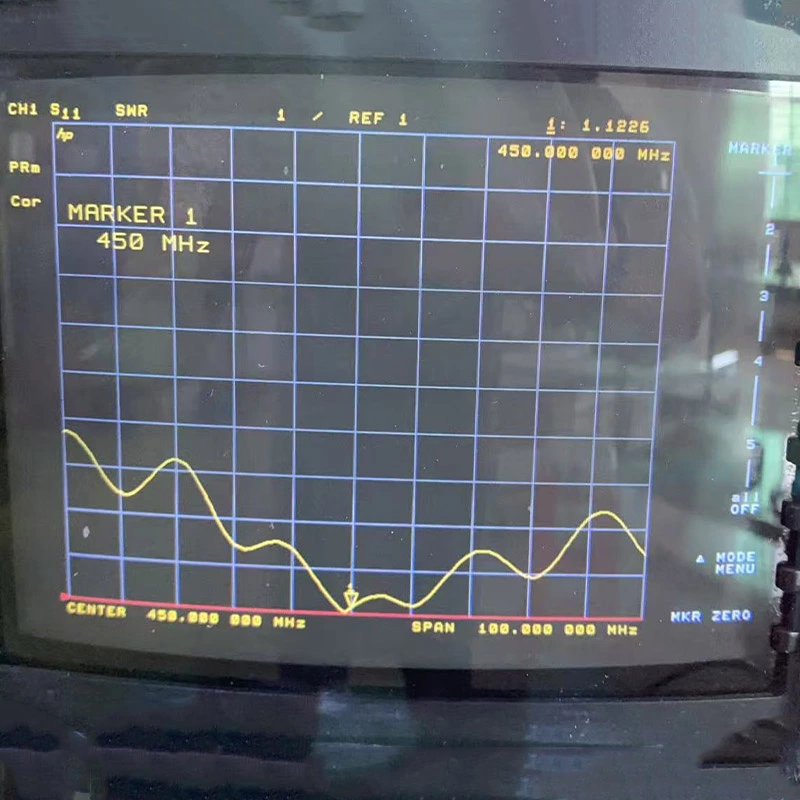

Low VSWR ensures efficient power transfer and minimal signal reflection, improving transmission clarity and communication reliability.
Mechanical Structure
-

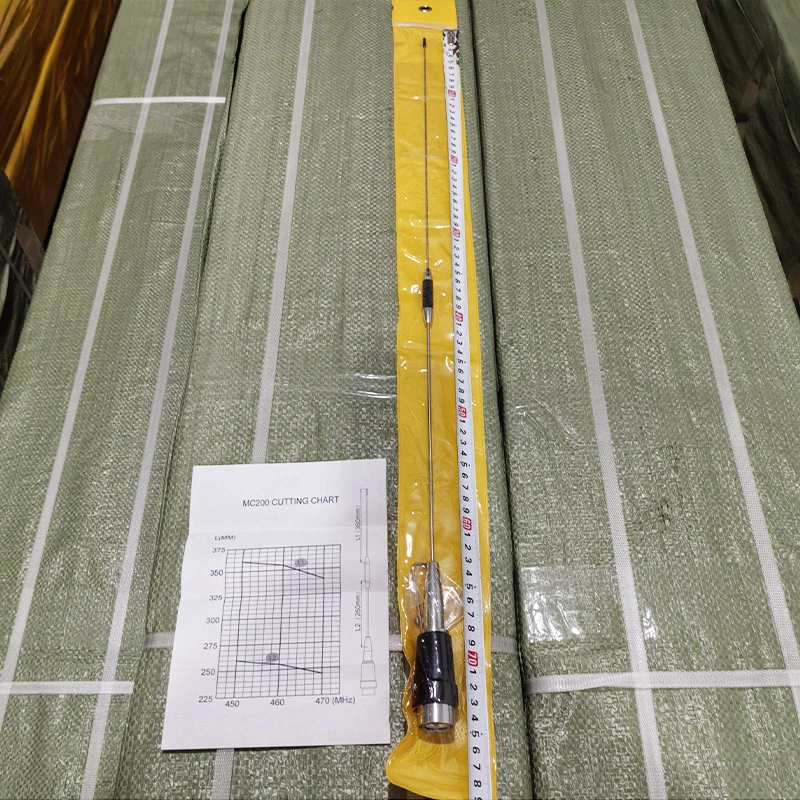

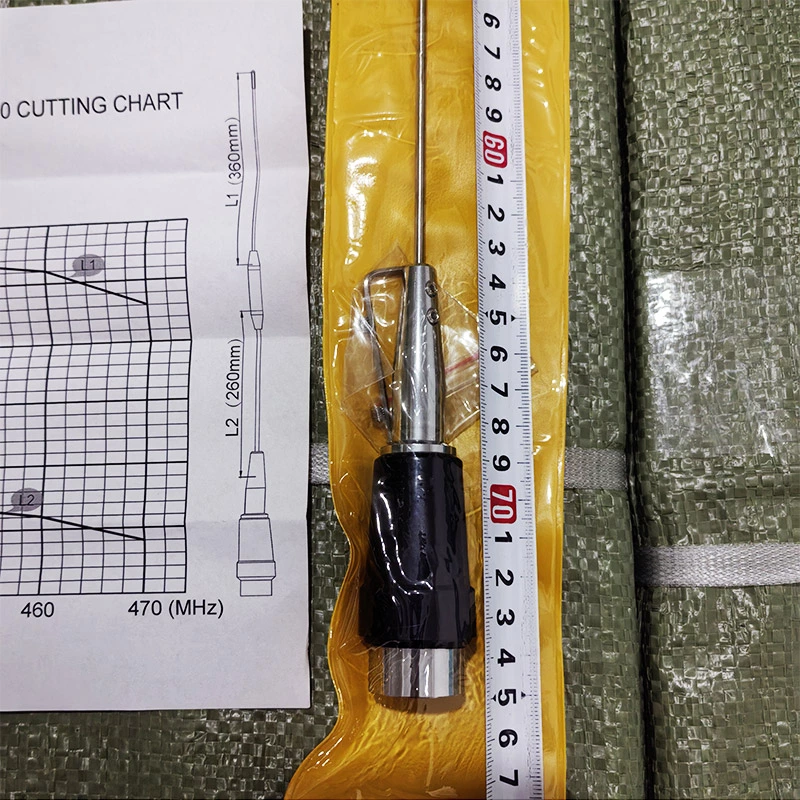

Length: 57 cm
-
Weight: 0.2 kg
-
Operating Temperature: -40℃ to 80℃
The lightweight yet durable structure allows easy installation on vehicle mounts while maintaining stable performance in harsh outdoor environments.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
