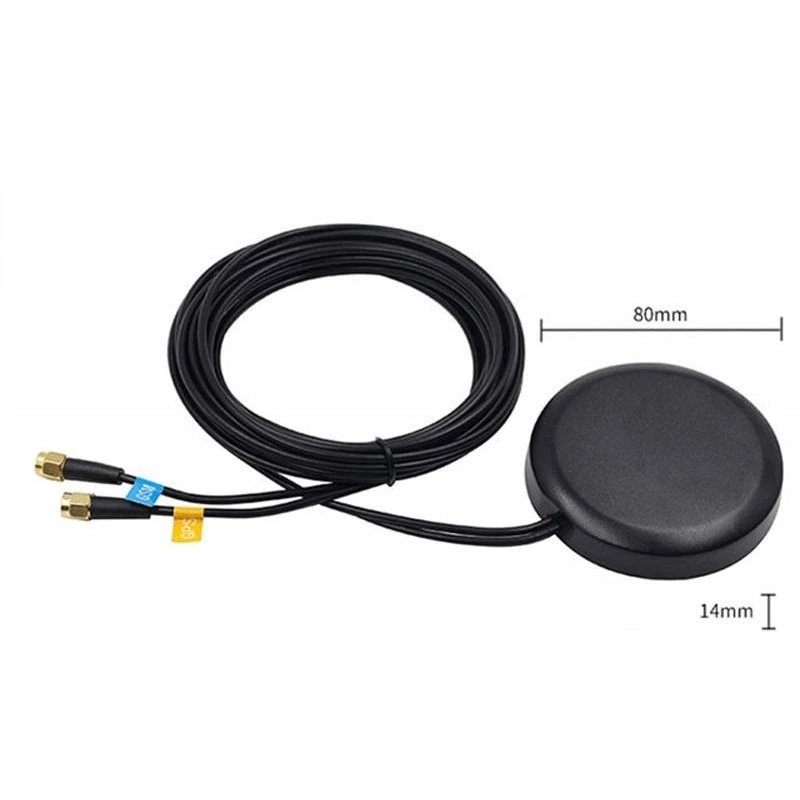

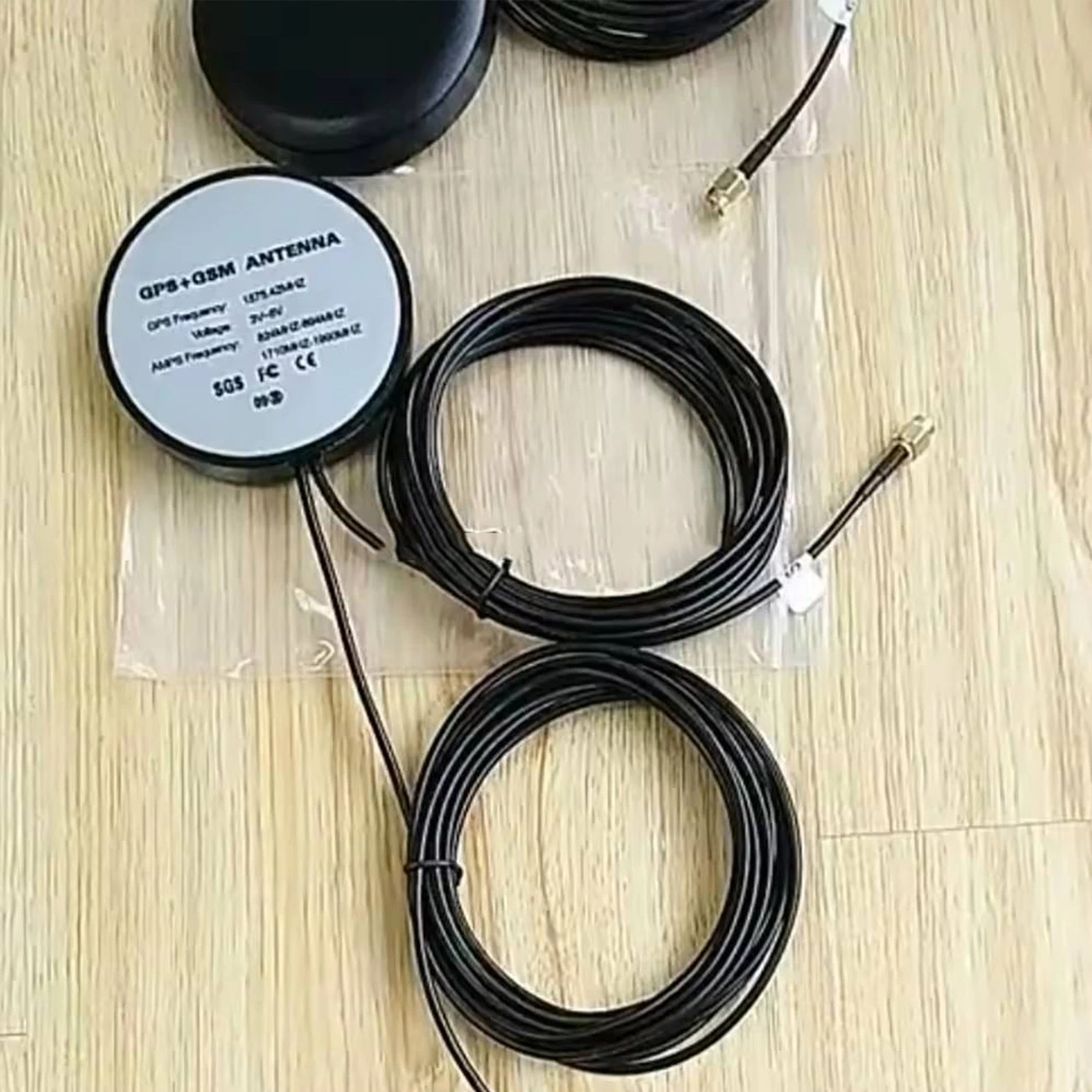

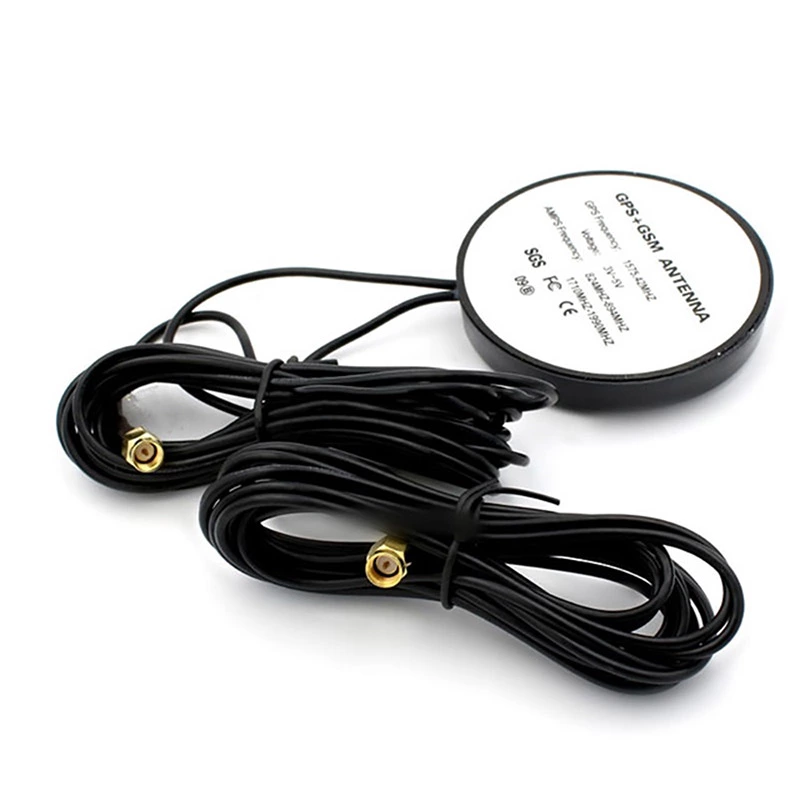

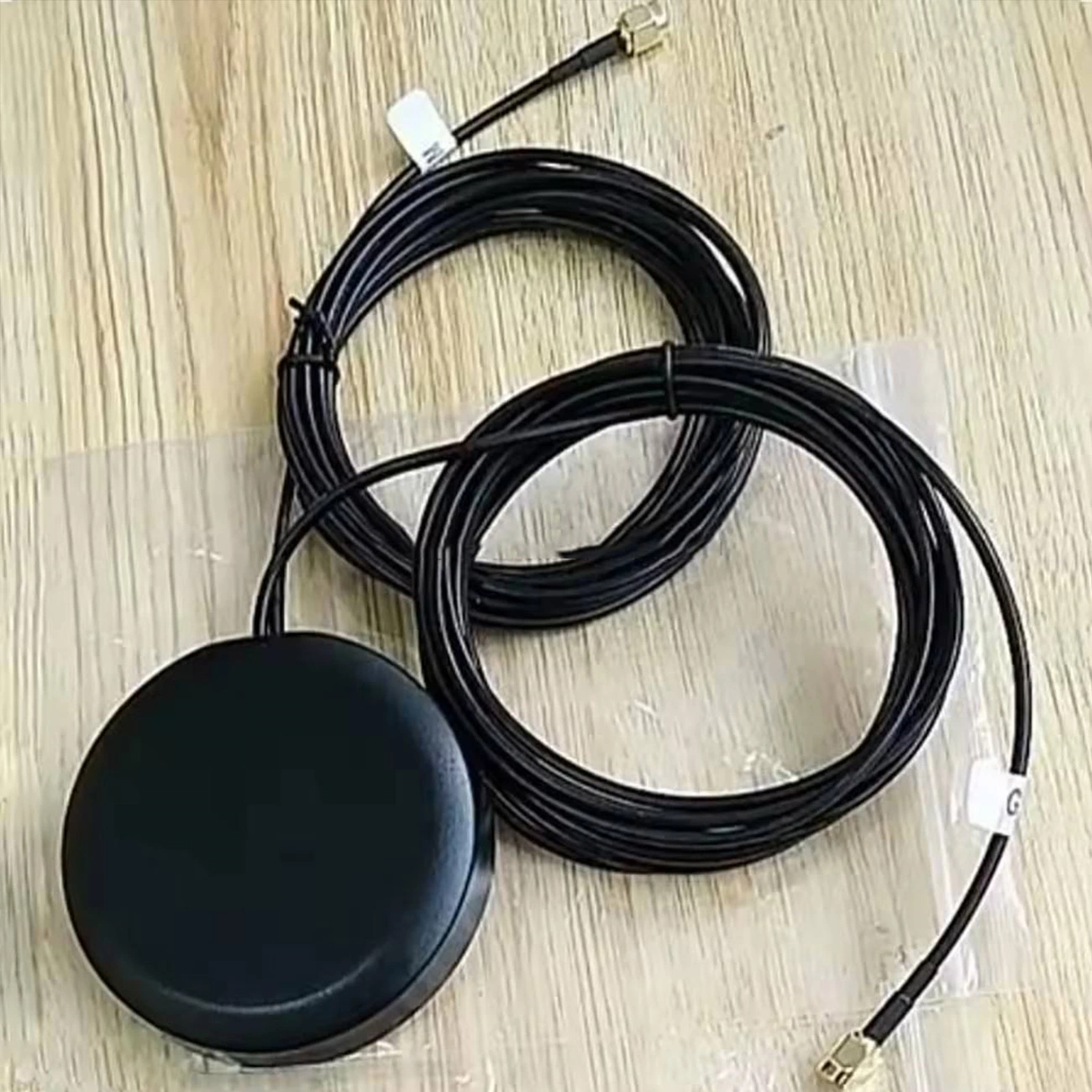

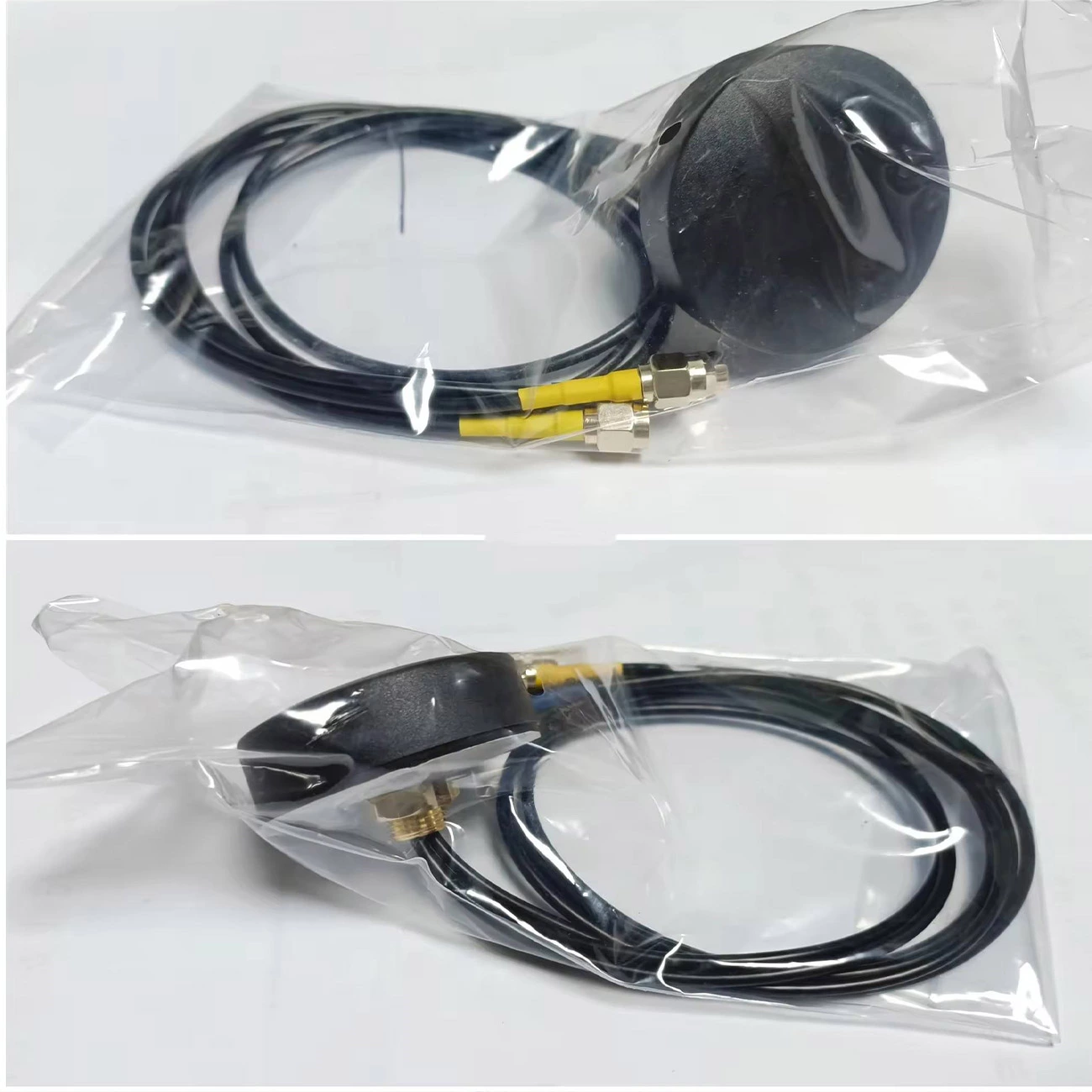

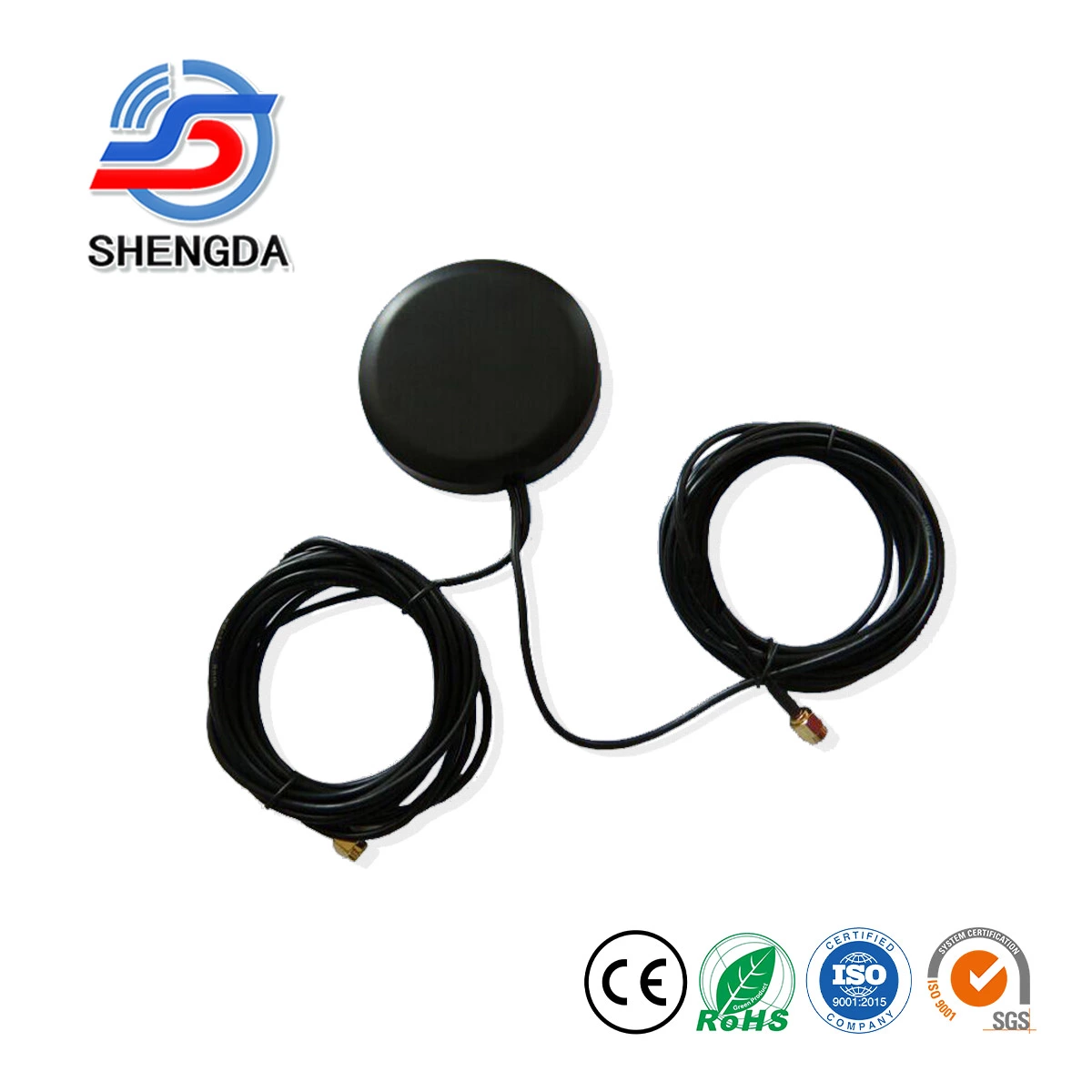

GSM Combo Antenna GPS003 Navigation 28dBi High Gain GNSS LTE GSM WIFI 4G MIMO Aerial Antenna Active

Technical Highlights:

The GPS003 Navigation Combo Antenna is a multi-band, high-gain active signal receiving device designed for multi-scenario applications. With "full-band coverage, strong signal capture, and high adaptability" as its core advantages, it comprehensively addresses the dual needs for accurate navigation and positioning as well as stable multi-network communication in various scenarios. This antenna not only supports signal reception of multiple GNSS systems (GPS, BDS, Glonass) to achieve high-precision positioning, but also is compatible with mainstream communication frequency bands such as LTE, GSM, WIFI, and 4G. Combined with MIMO (Multiple-Input Multiple-Output) technology and 28dBi high-gain performance, it can simultaneously ensure the accuracy of navigation and the stability of communication. As an active antenna, it is equipped with a built-in signal amplification module, which can actively enhance navigation and communication signals even in areas with weak signals or complex electromagnetic environments (such as urban high-rise areas and remote suburbs). Adopting a universal structural design, the product is suitable for multiple scenarios including vehicle-mounted, outdoor operations, security monitoring, and smart home. It can be quickly integrated without targeted modifications, serving as an all-in-one signal solution that combines "navigation + multi-band communication".

Application Scenarios：

1. Noise Figure: ≤1.2dB for the GNSS band and ≤2.0dB for the communication band. The low-noise amplification design minimizes noise interference while enhancing signals, ensuring the accuracy of navigation and positioning as well as the purity of communication signals.
2. Protection Level: IP66 protection rating, which provides complete dustproof performance and resistance to heavy rain erosion. It is suitable for scenarios such as outdoor and vehicle-mounted applications where dust and rain are easily encountered, preventing performance degradation caused by environmental factors.
3. Operating Voltage: DC 5V-12V wide-voltage power supply, compatible with vehicle-mounted 12V DC systems, battery power supplies for outdoor equipment, and household 220V-to-DC power supplies. No additional power converter is required, making it suitable for power supply environments in multiple scenarios.
4. Operating Current: ≤20mA for the GNSS module and ≤30mA for the communication module. The low-power design avoids increasing the power supply load of the equipment, and is particularly suitable for outdoor portable equipment and battery-powered smart terminals.
5. Operating Temperature Range: -40℃~+85℃, which can cope with extreme low temperatures (such as outdoor environments in northern winter) and high-temperature exposure (such as vehicle-mounted environments in summer), ensuring stable operation around the clock and across all regions.

Transport

We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.

You can either use our freight forwarding service or arrange it yourself. It all depends on you.

Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
