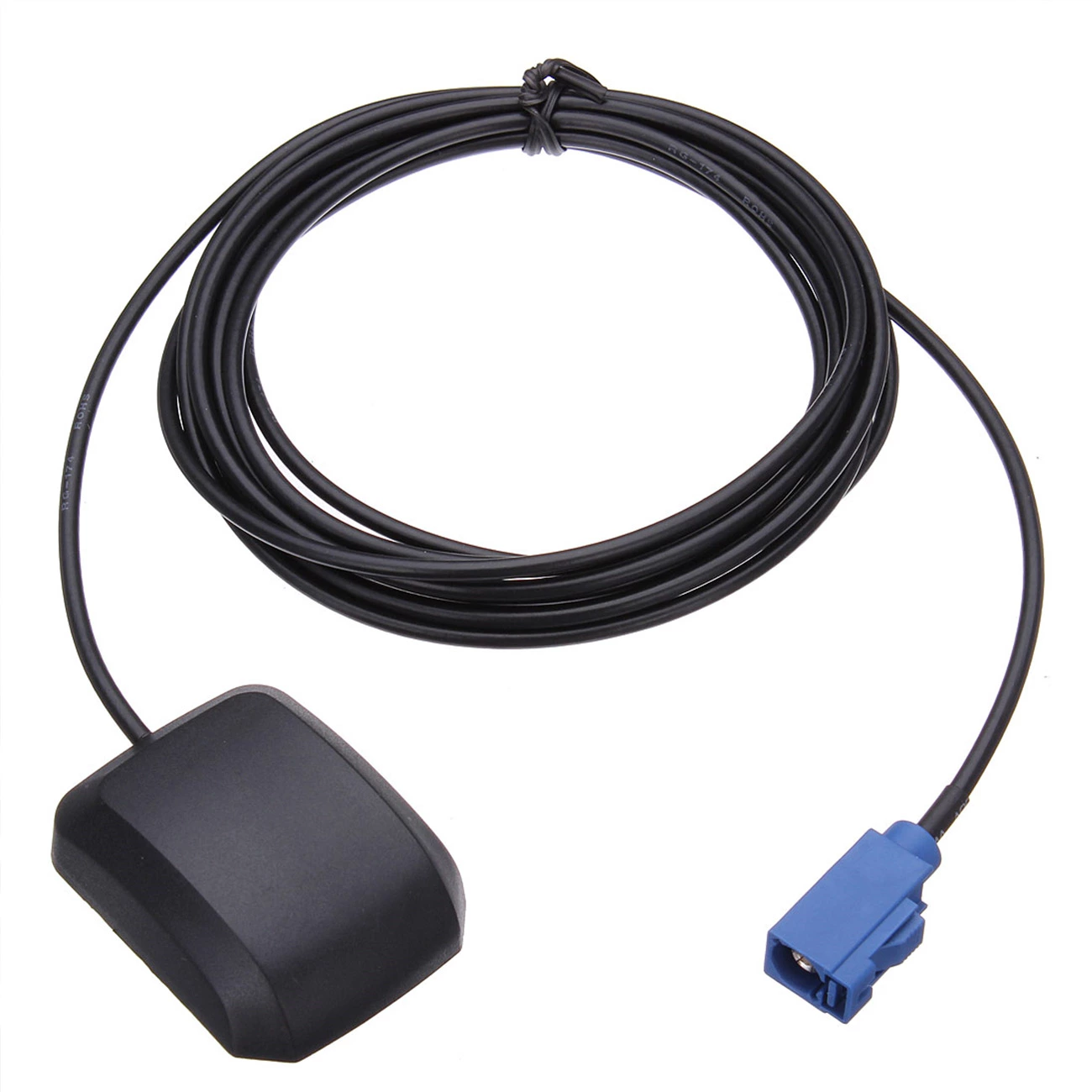

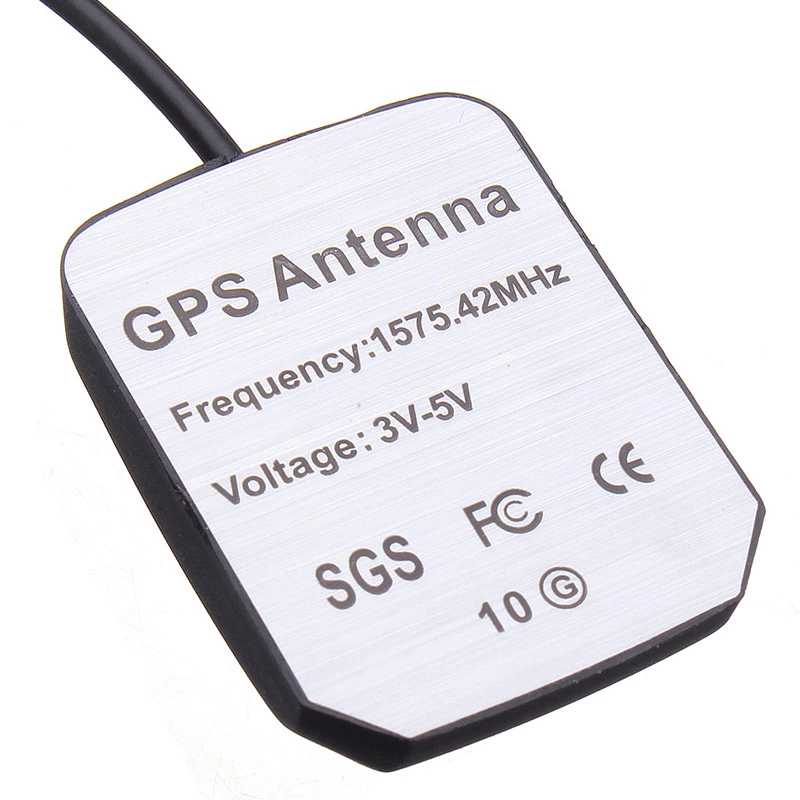

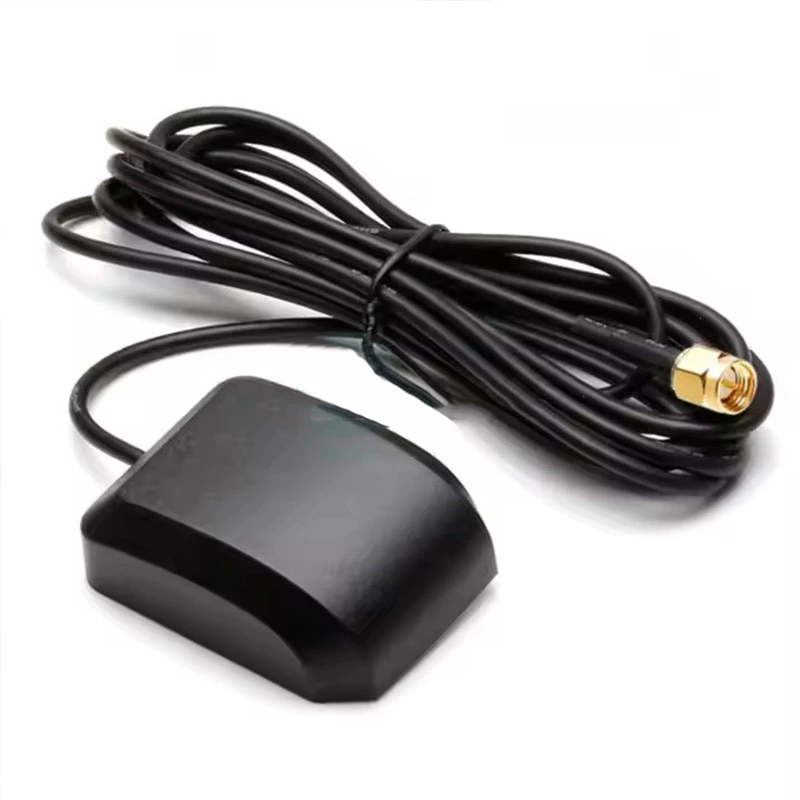

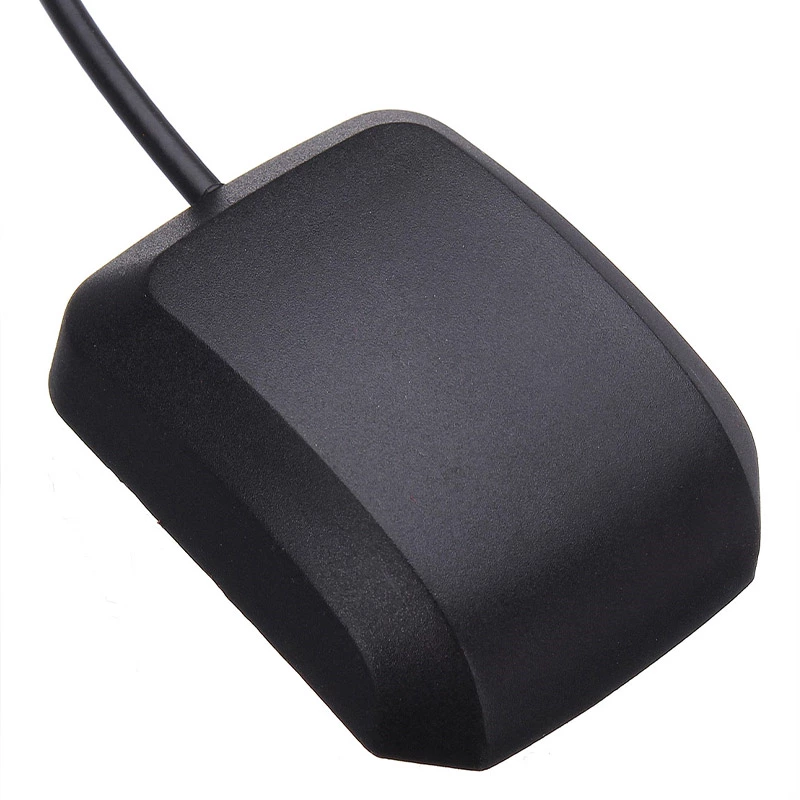

GPS Active Antenna – 3-5VDC 28dB High Gain Waterproof Antenna for Vehicle Tracking Device
- Model No.
- SDGPS-004
- Type
- GPS/GNSS Antenna
- Place of Origin
- China
- Frequency Range
- 1575.42 MHz
- Gain
- 28 dBi
- Connector
- SMA-Male

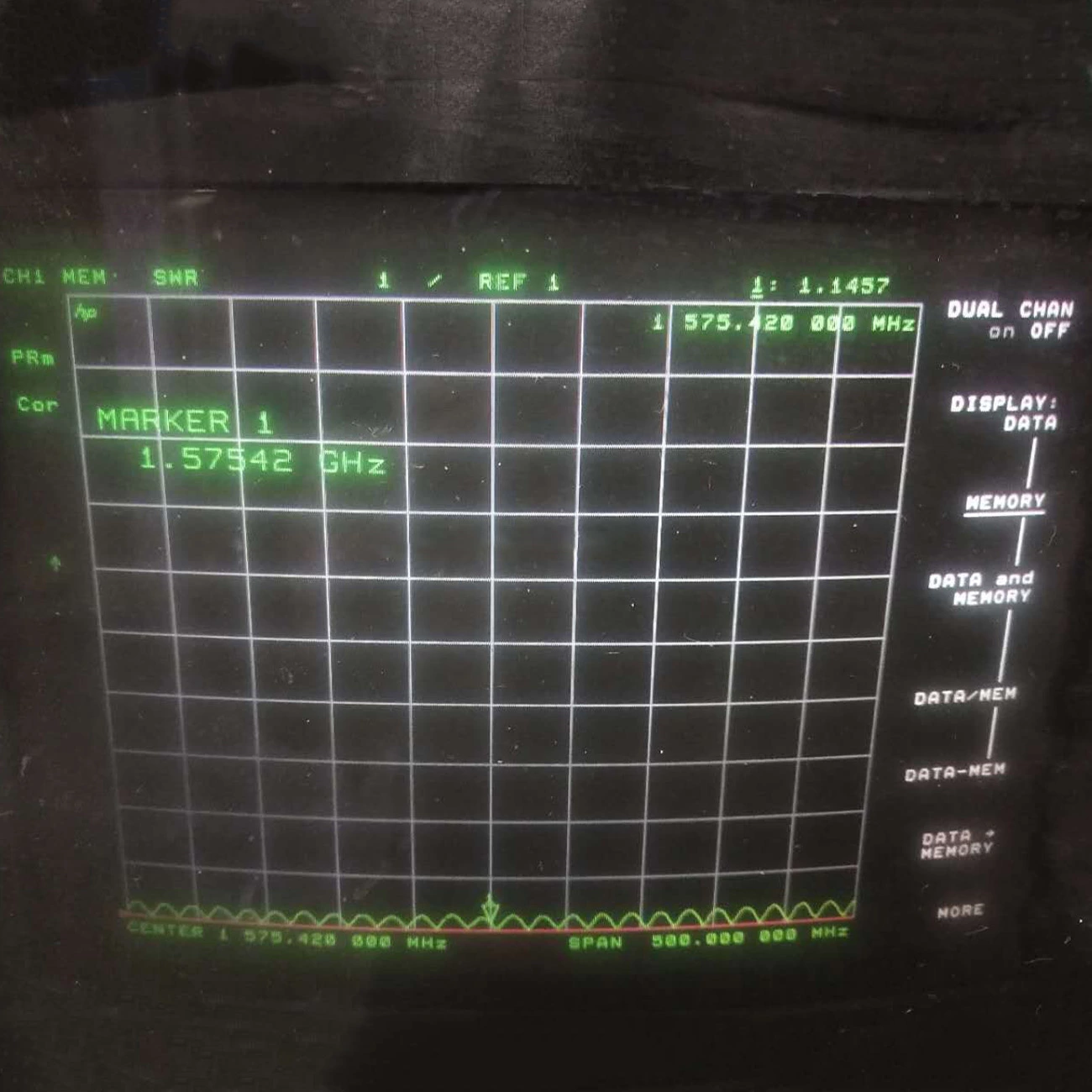

- V.S.W.R
- <1.5
- Impedance
- 50 Ohm
- Accept OEM
- yes
- Color
- Black
- Length
- 45L*38W*12H
- Material
- ABS+Copper
Technical Highlights:
This GPS active antenna is specially designed for vehicle tracking devices. It has an operating voltage range of 3-5VDC, a high gain of 28dB, and excellent waterproof performance. It can work stably in various complex environments and provide accurate and reliable signal reception and transmission support for vehicle tracking.
Installation Guide：
Magnetic Base Installation
- Select a flat metal surface on the vehicle, such as the roof or hood, as the installation location, and ensure the installation area is clean and free of debris.
- Directly attach the magnetic base of the antenna to the selected metal surface, press it firmly to ensure the antenna does not shake or fall off during vehicle operation.
-
Glue Adhesion Installation
- Similarly, choose a suitable metal installation surface, clean the surface, and ensure it is dry, flat, and free of oil stains.
- Peel off the protective film from the adhesive layer at the bottom of the antenna, accurately stick the antenna to the predetermined position, and press it firmly for a few seconds to ensure secure adhesion. After installation, it is recommended to wait for a period of time to allow the glue to fully cure, so as to enhance the adhesion stability.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
