SD-BC100S 115-174MHz VHF Base Station Antenna | 4.5dBi Vertical Fiberglass/Brass Omni Antenna
The SD-BC100S is engineered for compact VHF base station installations, offering reliable omni-directional radiation and vertical polarization. Its design ensures stable performance across the 115-174 MHz range, suitable for communication towers, rooftops, and repeater applications.

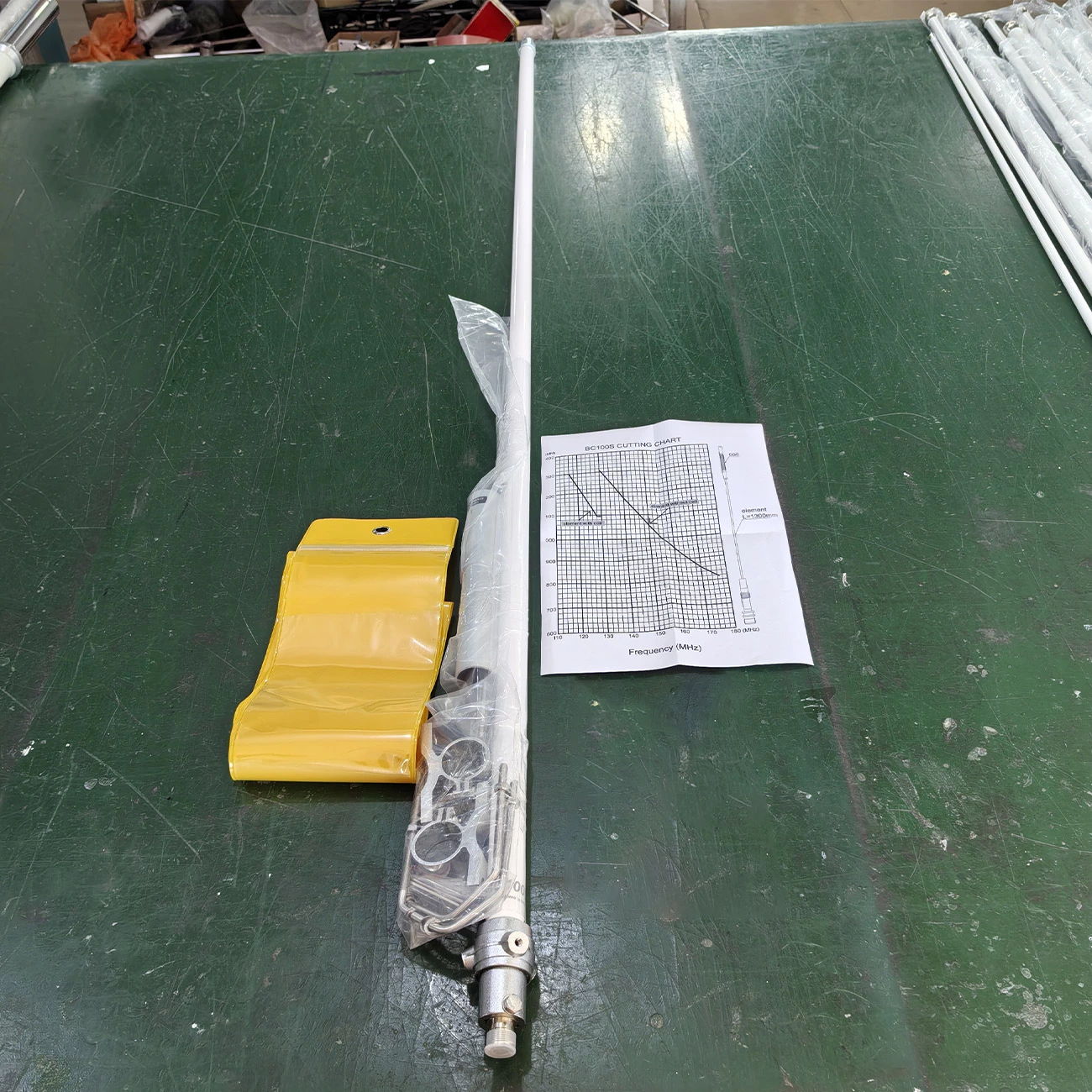

The antenna comes with a cutting chart for precise frequency tuning, allowing users to optimize performance for their specific VHF application.
- Model No.
- SD-BC100S
- Type
- Base station Antenna
- Place of Origin
- China
- Frequency Range
- 115-174MHz
- Gain
- 4.5dBi

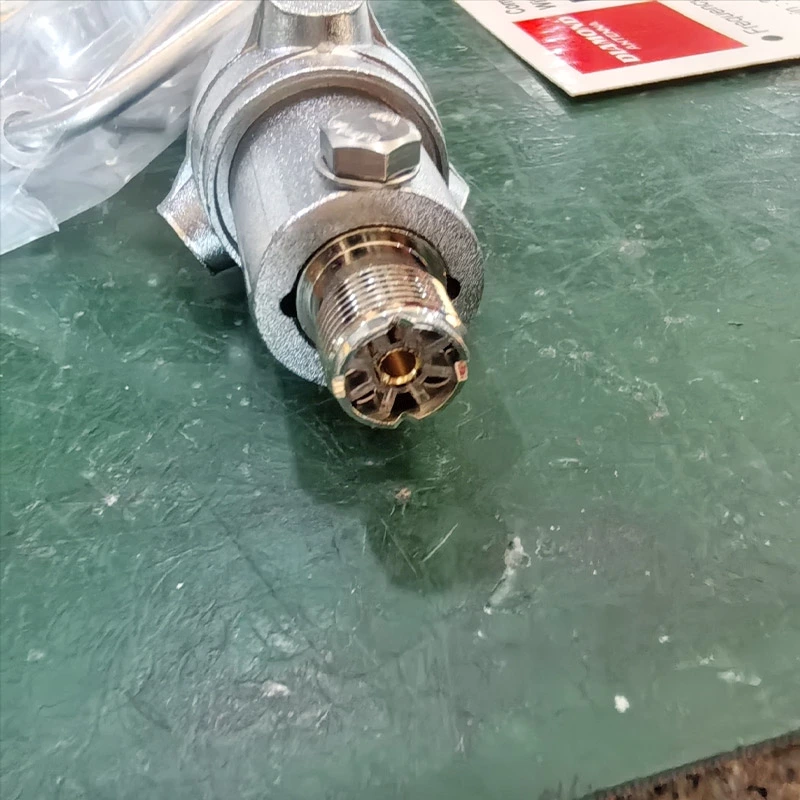

- Connector
- UHF-Female/N-Female
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 1.7m
- Material
- Fiberglass
Product Overview
The SD-BC100S is engineered for compact VHF base station installations, offering reliable omni-directional radiation and vertical polarization. Its design ensures stable performance across the 115-174 MHz range, suitable for communication towers, rooftops, and repeater applications.
The antenna comes with a cutting chart for precise frequency tuning, allowing users to optimize performance for their specific VHF application.
Electrical Specifications
Frequency Range Options:
Frequency Range: 115-174 MHz
Gain: 4.5 dBi
VSWR: < 1.5
Impedance: 50 Ohm
Polarization: Vertical
Radiation Pattern: Omni-directional
Mechanical Specifications
-
Material: Fiberglass / Brass
-
Design: Lightweight and durable, suitable for outdoor installation
-

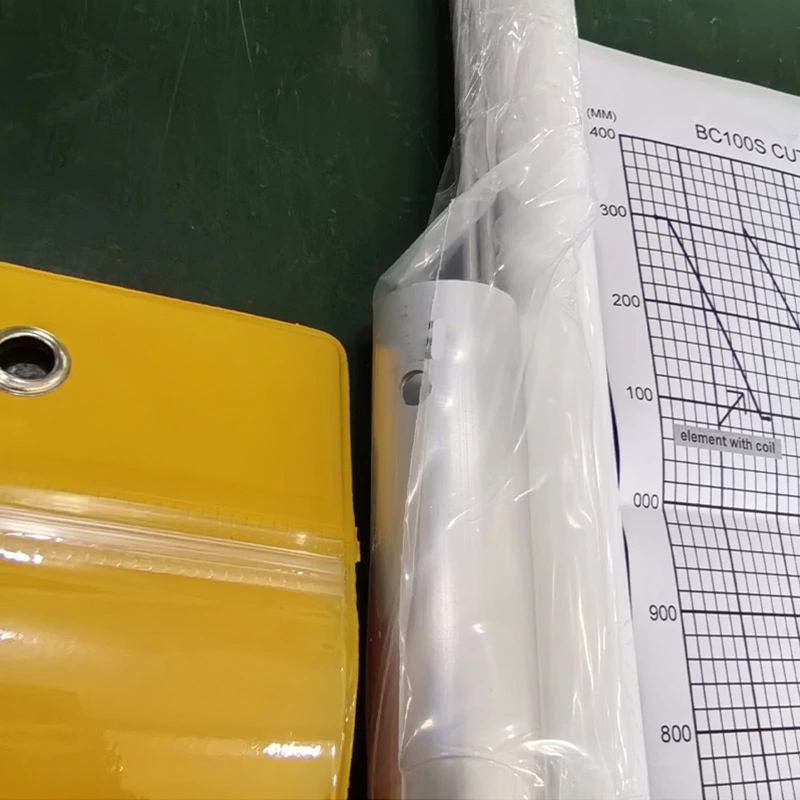

Tuning: Cutting chart included for easy frequency adjustment
The combination of fiberglass and brass ensures both environmental durability and stable electrical performance.

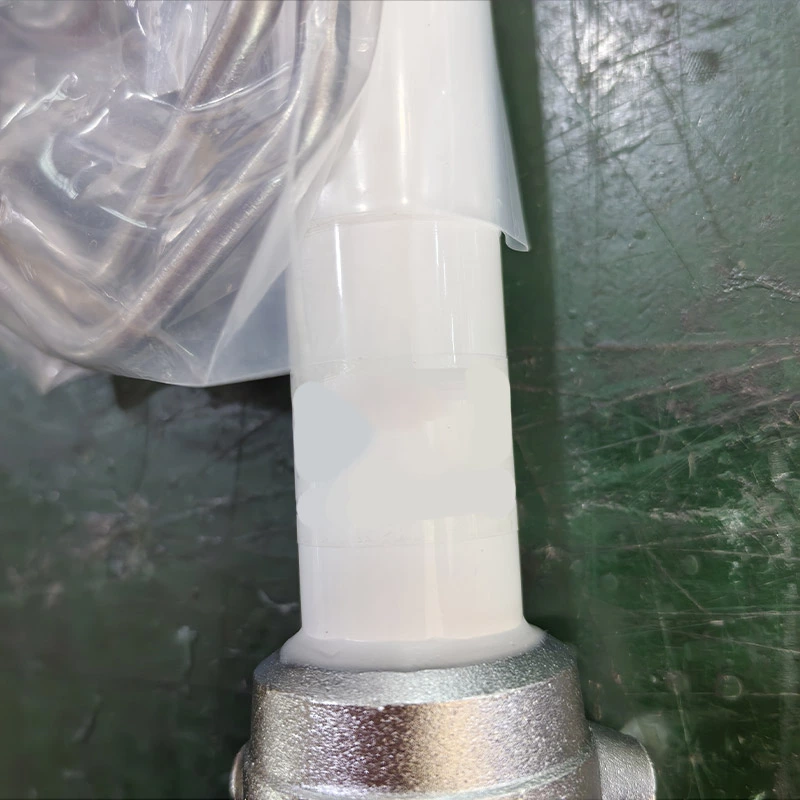

- part of antenna is individual packed in PE/PVC Bag.

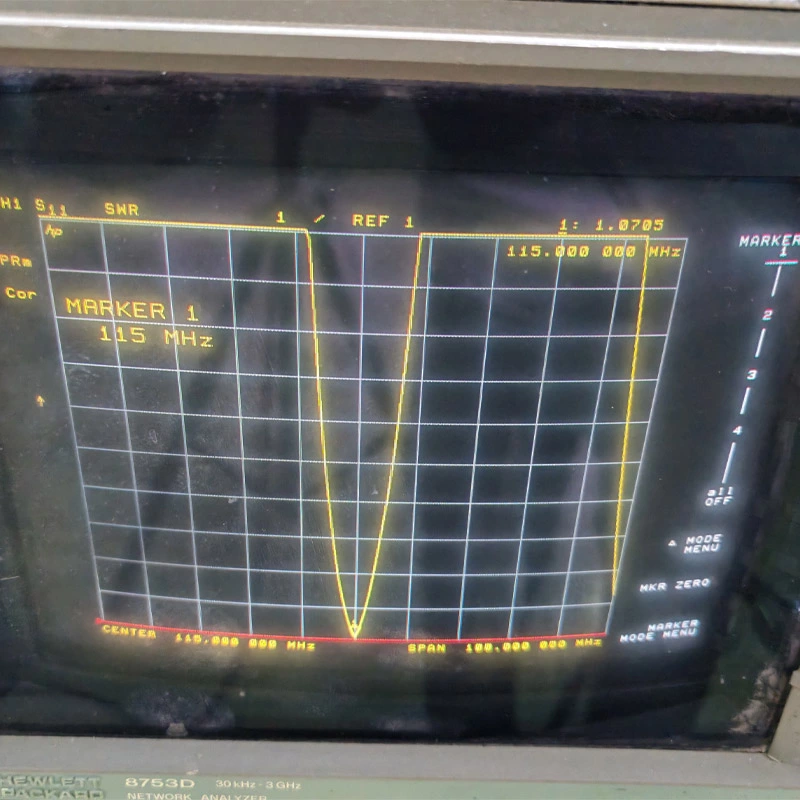

- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
