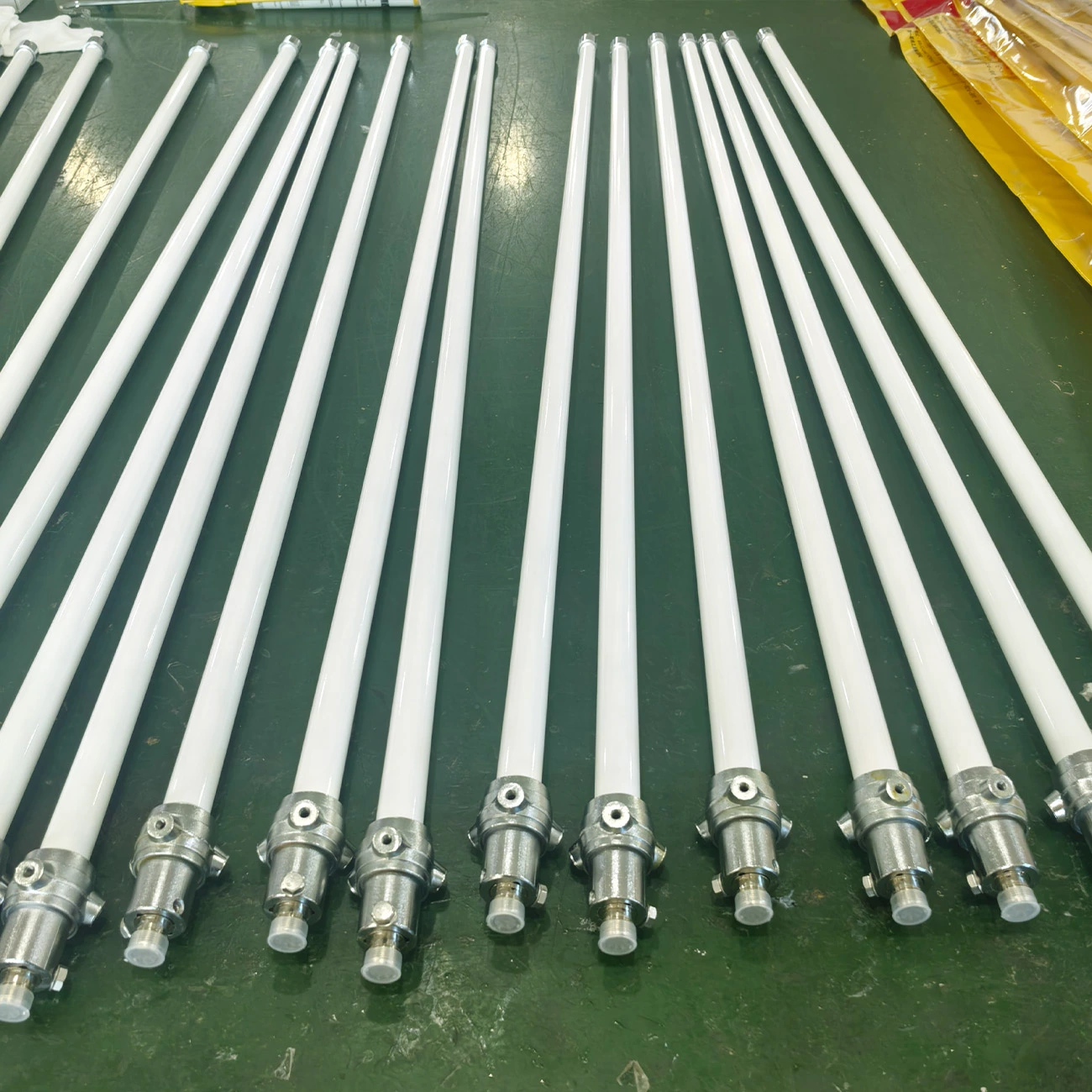

BF130VF 136-174MHz / 400-470MHz Fiberglass Base Station Antenna | 1.3m 3.5dBi Vertical Omni N-Female
The Shengda BF130VF is a 1.3-meter fiberglass omni-directional base station antenna designed for VHF and UHF communication systems. It supports multiple frequency ranges including 118-136 MHz, 136-174 MHz, and 400-470 MHz, making it suitable for aviation, VHF, and UHF applications.
With a gain of 3.5 dBi, vertical polarization, and a low VSWR of less than 1.5, the BF130VF ensures stable signal transmission and reliable 360° coverage. The durable fiberglass construction and N-Female connector provide long-term outdoor performance for base stations, repeater systems, and industrial wireless networks.
- Model No.
- BF130VF
- Type
- Base station Antenna
- Place of Origin
- China
- Frequency Range
- 136-174MHz 400-470MHz 118-136MHz
- Gain
- 3.5dBi
- Connector
- N-Female
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 1.3m
- Material
- Fiberglass
Product Overview
The BF130VF is a compact fiberglass base station antenna engineered for reliable VHF and UHF communication. Designed for outdoor installations, it provides stable omni-directional radiation with vertical polarization, ensuring uniform horizontal coverage.
Its 1.3-meter length offers a balanced design between portability and performance, making it suitable for rooftop, mast, and tower mounting.
Electrical Specifications
Frequency Range Options:
-
118-136 MHz (Aviation Band)
-
136-174 MHz (VHF Band)
-
400-470 MHz (UHF Band)
Polarization: Vertical
Radiation Pattern: Omni-directional (360° horizontal coverage)
Gain: 3.5 dBi
Impedance: 50 Ohm

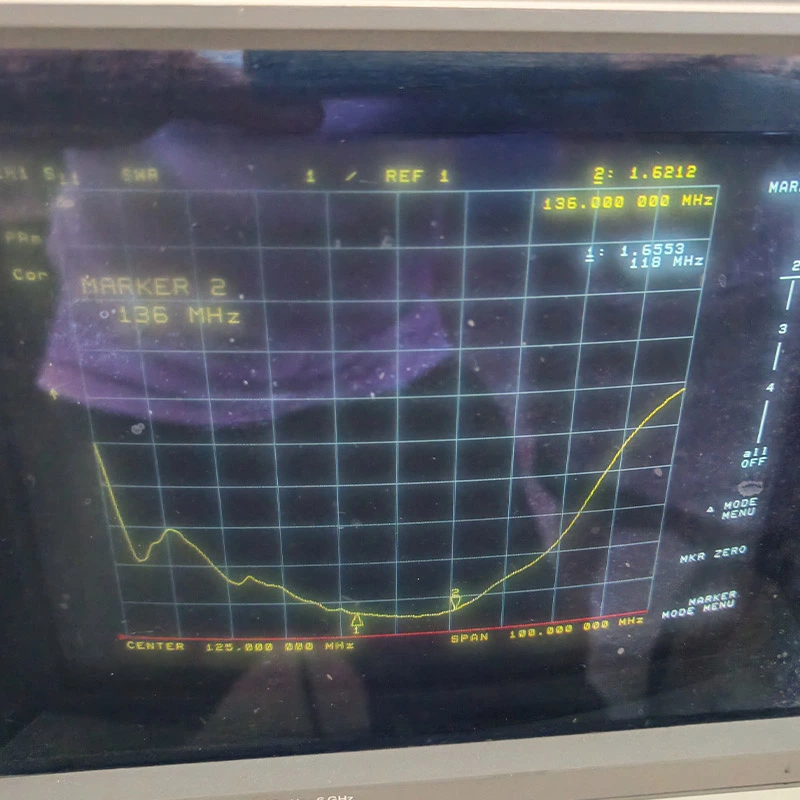

VSWR: < 1.5
Mechanical Specifications
- Length: 1.3 meters

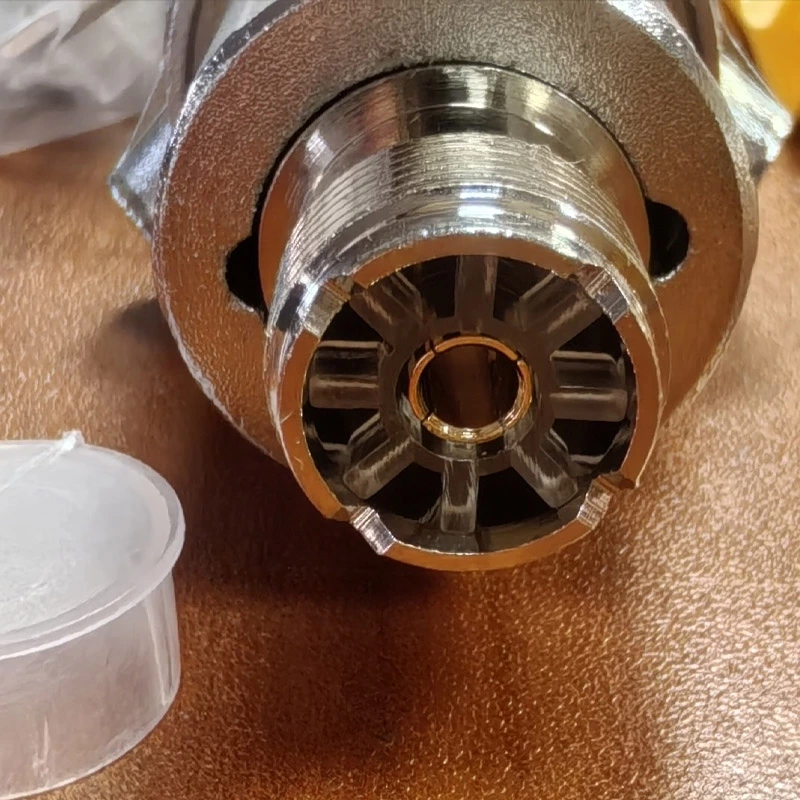

- Connector: N-Female
- Material: Fiberglass
The fiberglass radome protects internal radiating elements from UV radiation, moisture, and corrosion, ensuring stable long-term outdoor performance.

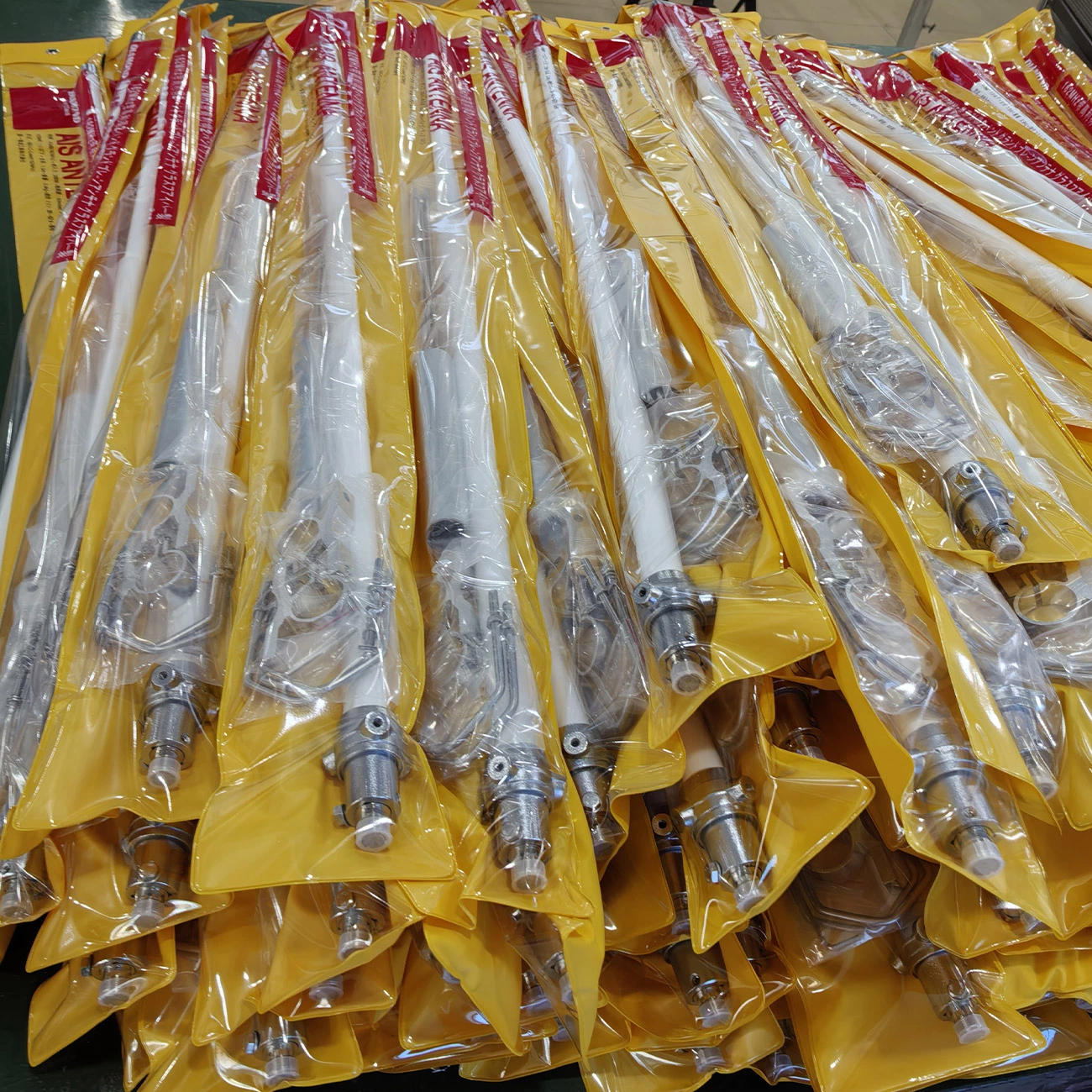

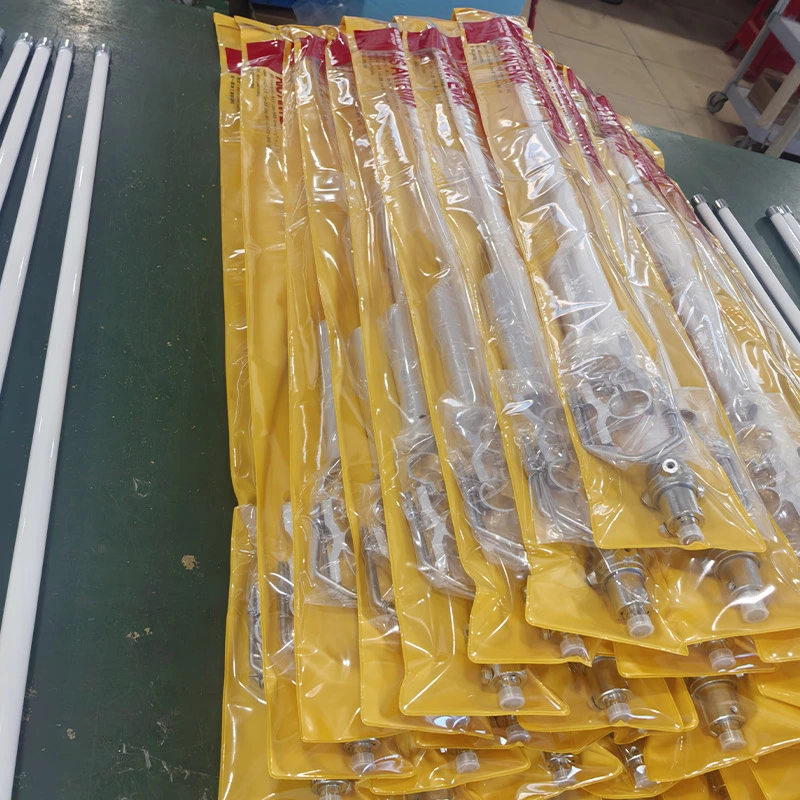

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
