BF170GS 1090MHz LoRa Antenna | 12dBi 1.7M Vertical N-Female Outdoor Fiberglass GSM Antenna
The Shengda BF170GS is a high-gain 1090MHz LoRa antenna designed for outdoor wireless communication applications. With a gain of 12 dBi and a compact 1.7-meter fiberglass structure, it provides reliable omni-directional coverage with vertical polarization.
Equipped with a standard N-Female connector and 50 Ohm impedance, the BF170GS ensures efficient power transfer and stable signal performance. Its durable fiberglass construction makes it suitable for long-term outdoor deployment in GSM, IoT, and LoRa network environments.
- Model No.
- BF170GS
- Type
- Base station Antenna
- Place of Origin
- China
- Frequency Range
- 1090MHz
- Gain
- 12dbi
- Connector
- N-Female
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- 1700mm
- Material
- Fiberglass, Copper
Electrical Specifications
-
Frequency Range: 1090 MHz
-
Gain: 12 dBi
-
Impedance: 50 Ohm
-
VSWR: Typically low (ensures efficient transmission)
-
Radiation Pattern: Omni-directional
-
Polarization: Vertical
Mechanical Specifications
-
Length: 1700 mm
-

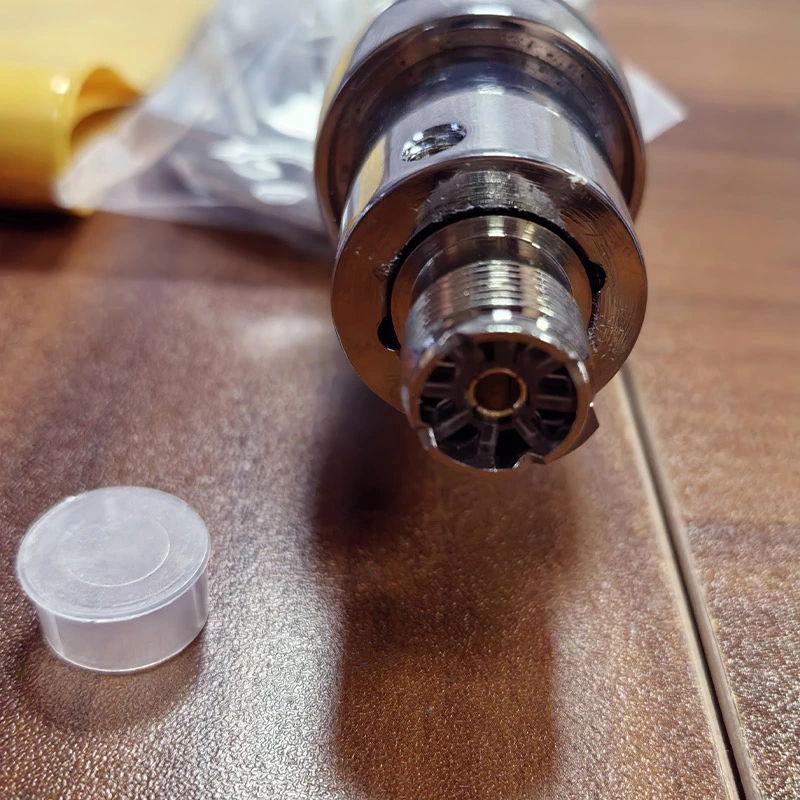

Connector: N-Female
-
Material: Fiberglass
-
Durability: Weatherproof for outdoor deployment
The fiberglass radome protects the internal radiating element from UV, moisture, and corrosion, ensuring long-term stability in harsh environments.
Product Overview
-
The BF170GS is a high-performance LoRa antenna engineered for 1090MHz wireless systems. Designed for outdoor installation, it supports omni-directional radiation and vertical polarization, ensuring uniform horizontal coverage and stable long-range signal transmission.

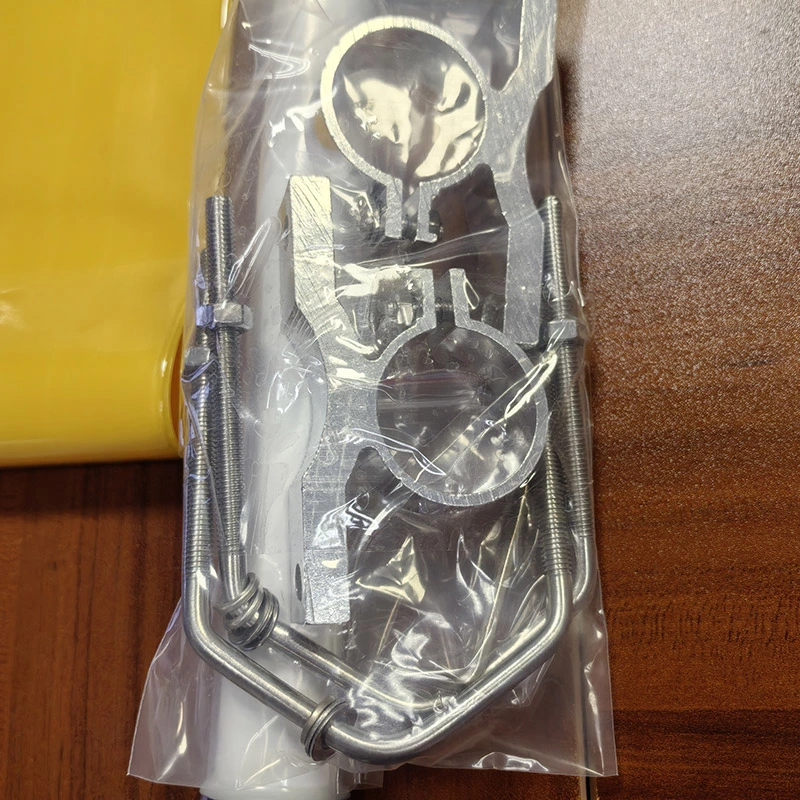

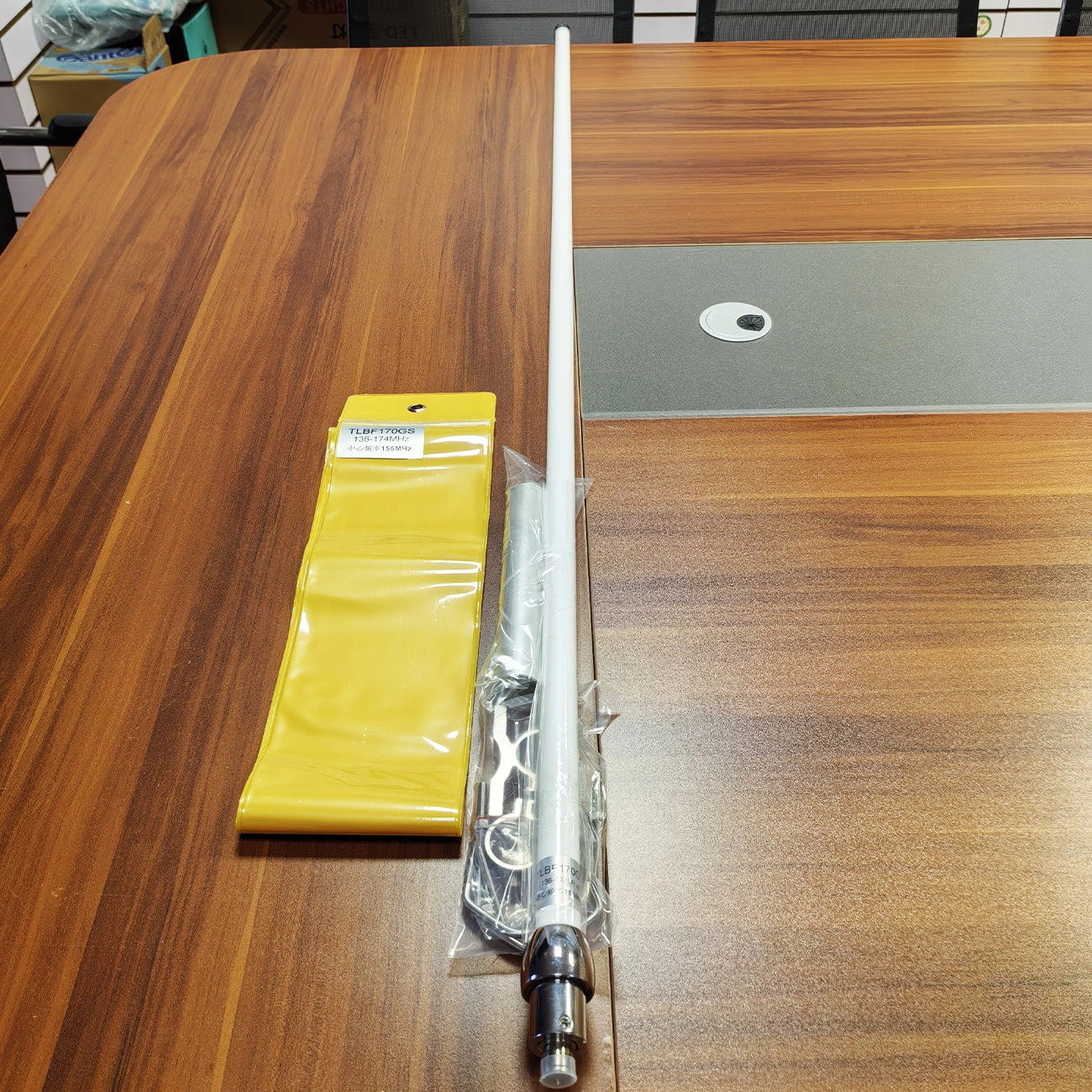

With a total length of 1.7 meters, the antenna combines high gain and compact size for easy mounting on rooftops, masts, and towers.

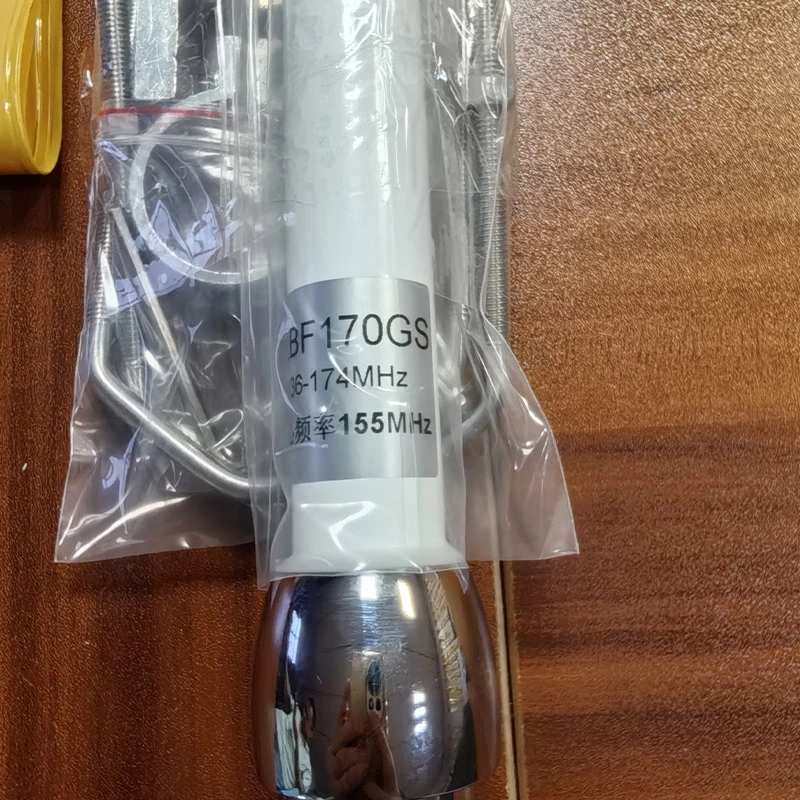

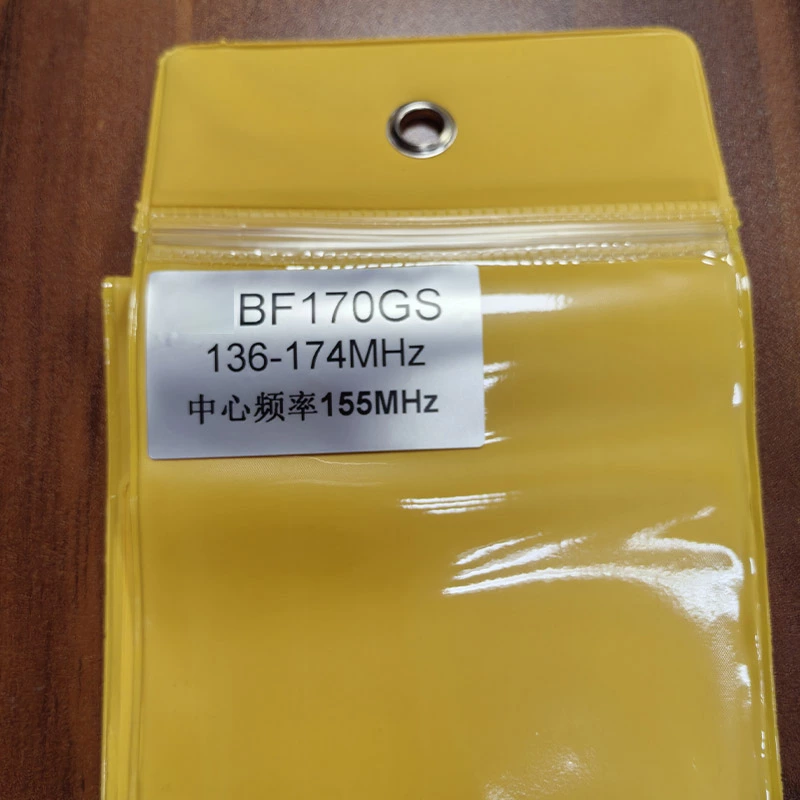

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
