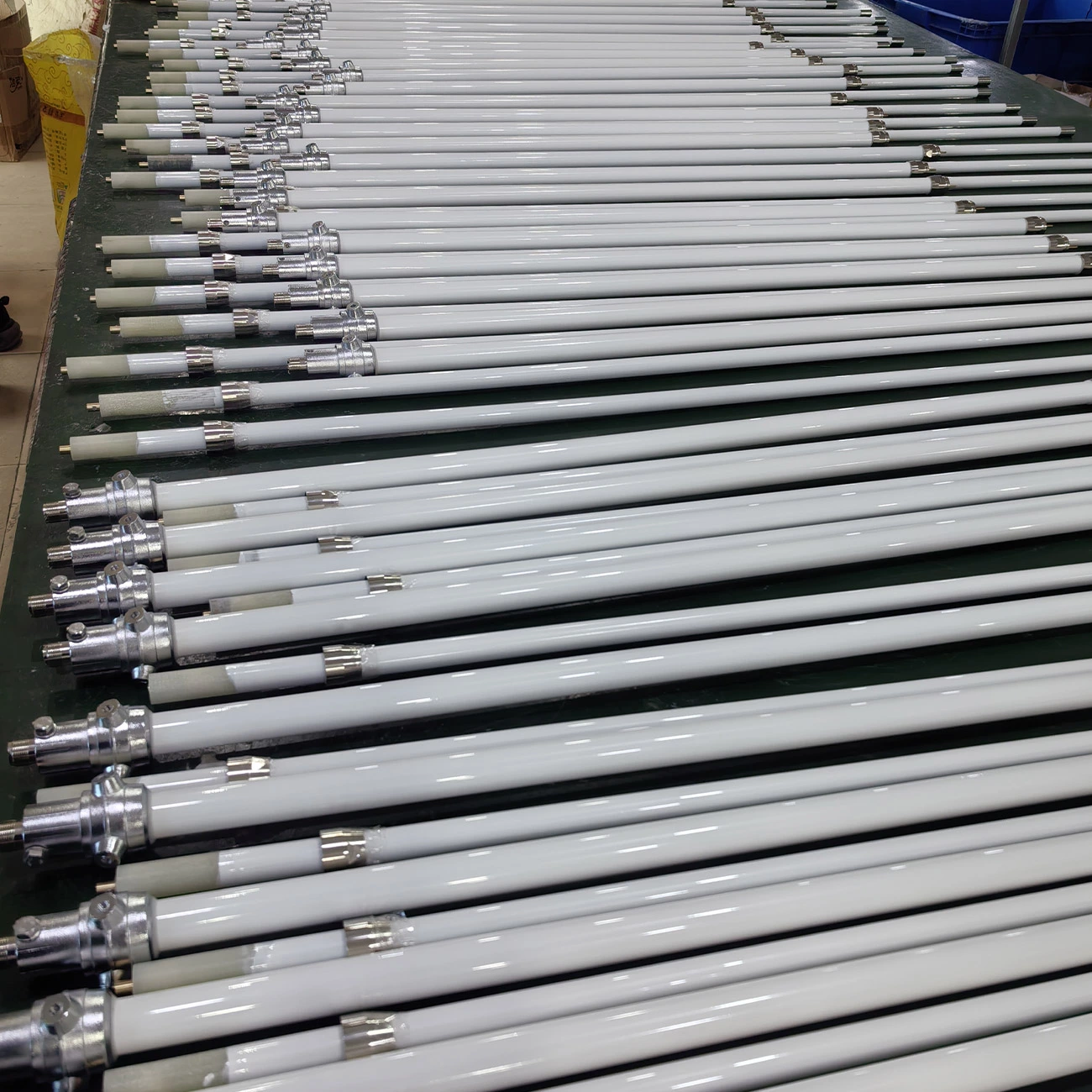

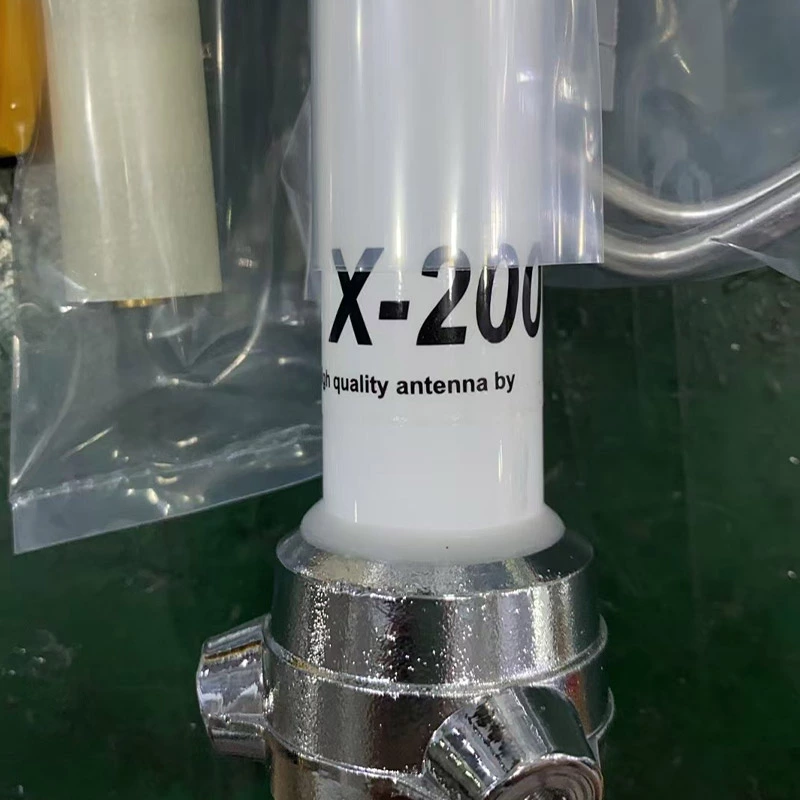

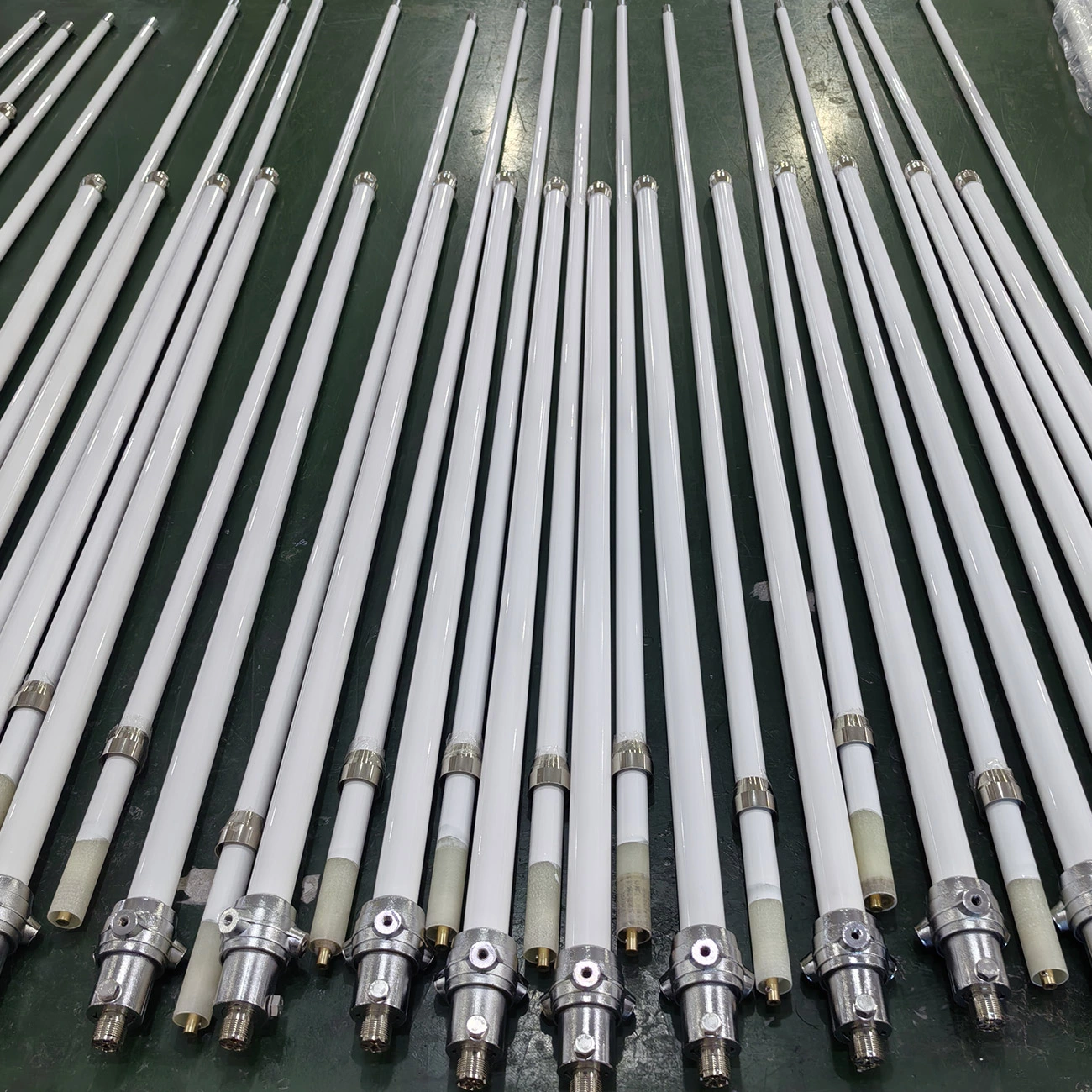

144/430MHz VHF UHF Dual Band Base Station Antenna X200 6/8dBi – Fiberglass Vertical Antenna
The X300 is a dual-band VHF/UHF base station antenna designed for stable and extended-range communication in 144 MHz and 430 MHz frequency bands. Featuring a high-gain collinear structure (6.5 dBi @ 144 MHz, 9.0 dBi @ 430 MHz), it delivers enhanced signal strength and reliable omni-directional coverage for fixed station installations.
With a low VSWR (≤1.5) and 50 Ohm impedance, the X300 ensures efficient power transmission and reduced signal reflection, supporting a maximum input power of 200W. The antenna is vertically polarized and constructed with a durable fiberglass radome and copper radiating elements, providing strong weather resistance and long-term outdoor stability.
Standing at 3.1 meters in height and available with SO239 or N-Female connectors, the X300 is suitable for amateur radio base stations, repeater systems, emergency communication networks, and industrial wireless applications. OEM customization is available to meet specific project requirements.
- Model No.
- X200
- Type
- Base station Antenna
- Place of Origin
- China
- Frequency Range
- 144/430MHz
- Gain
- 6/8dBi
- Connector
- SO239 (MJ) or N-Female
- V.S.W.R
- Less than 1.5
- Impedance
- 50ohm
- Accept OEM
- yes
- Length
- about 2.5m
- Material
- Fiberglass, Copper
Core Parameters
Operating Frequency:
-
144 MHz (VHF)
-
430 MHz (UHF)
Gain:
-
6 dBi @ 144 MHz
-
8 dBi @ 430 MHz
The optimized internal radiator design enhances signal strength and improves effective communication range.
Impedance: 50 Ohm
Ensures compatibility with standard coaxial cable systems.

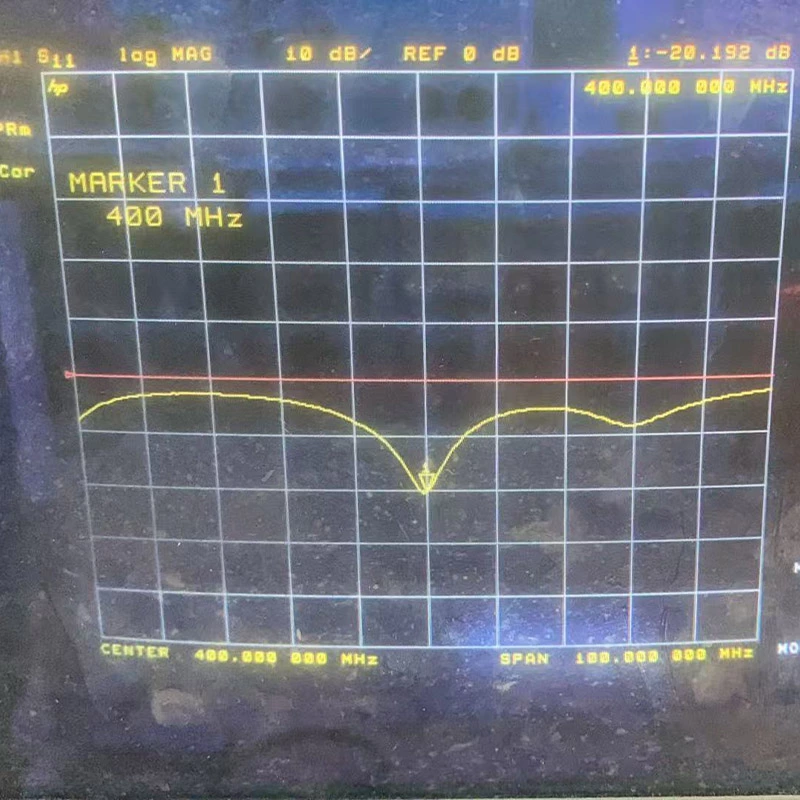

VSWR: ≤ 1.5
Low standing wave ratio minimizes signal reflection and improves transmission efficiency.
Polarization: Vertical
Compatible with standard ground-based communication systems.
Structural Design
Height: Approx. 2.5 meters
Weight: 1.5 kg
Lightweight structure allows easier installation and reduced wind load impact.

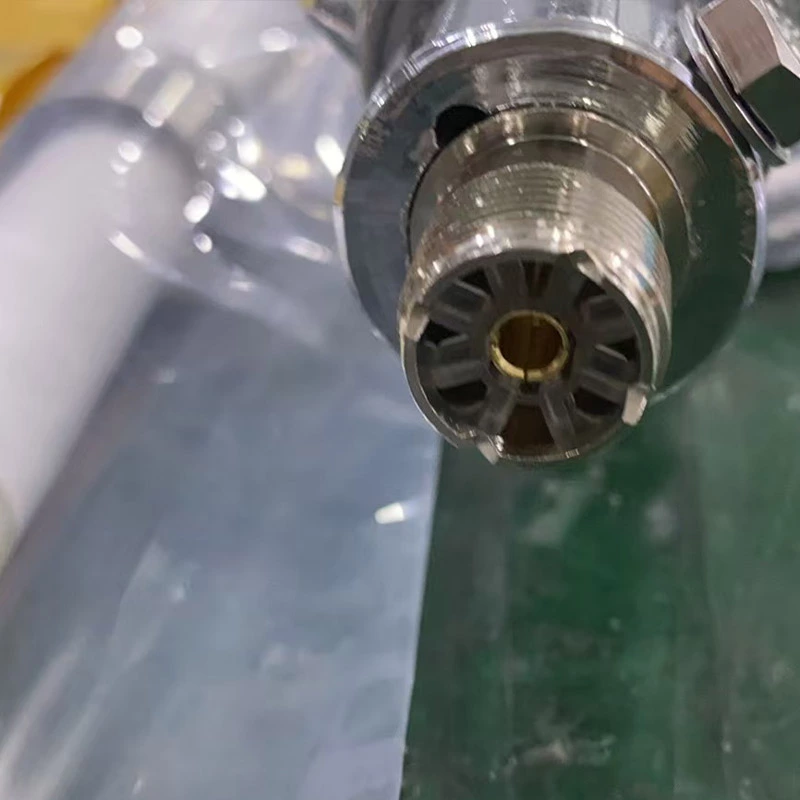

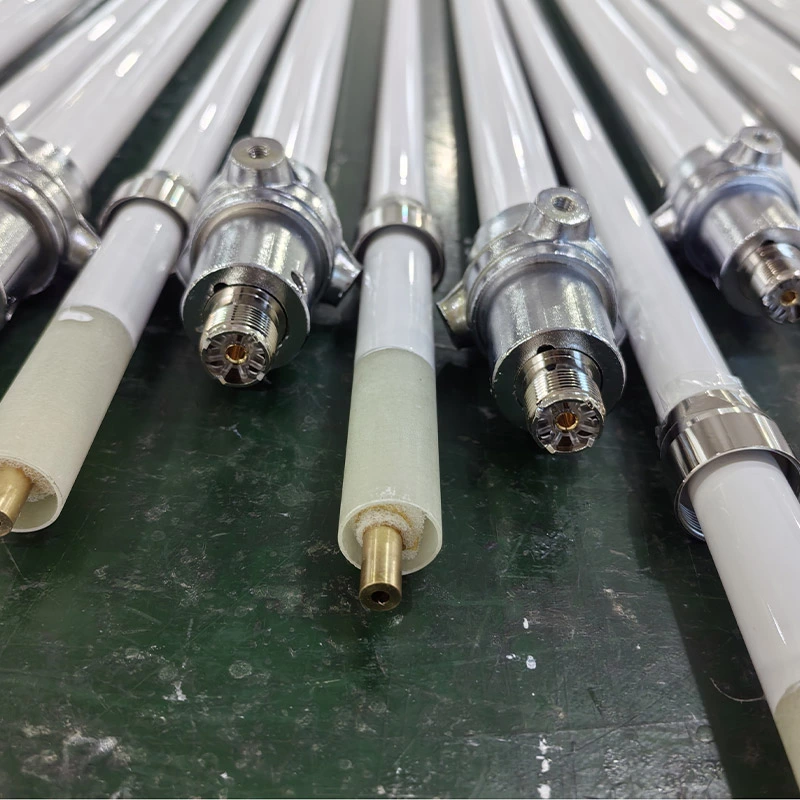

Connector Options:
-
SO239 (MJ)
-
N-Female
Flexible connector selection for different installation requirements.
Material: Fiberglass
The fiberglass radome protects internal elements from UV exposure, moisture, and corrosion, ensuring long-term outdoor durability.
Color: White
UV-resistant coating suitable for outdoor environments.
Transport
SHENGDA supports OEM customization including:
-
Brand labeling
-
Connector type customization
-
Packaging customization
-
Frequency tuning adjustment

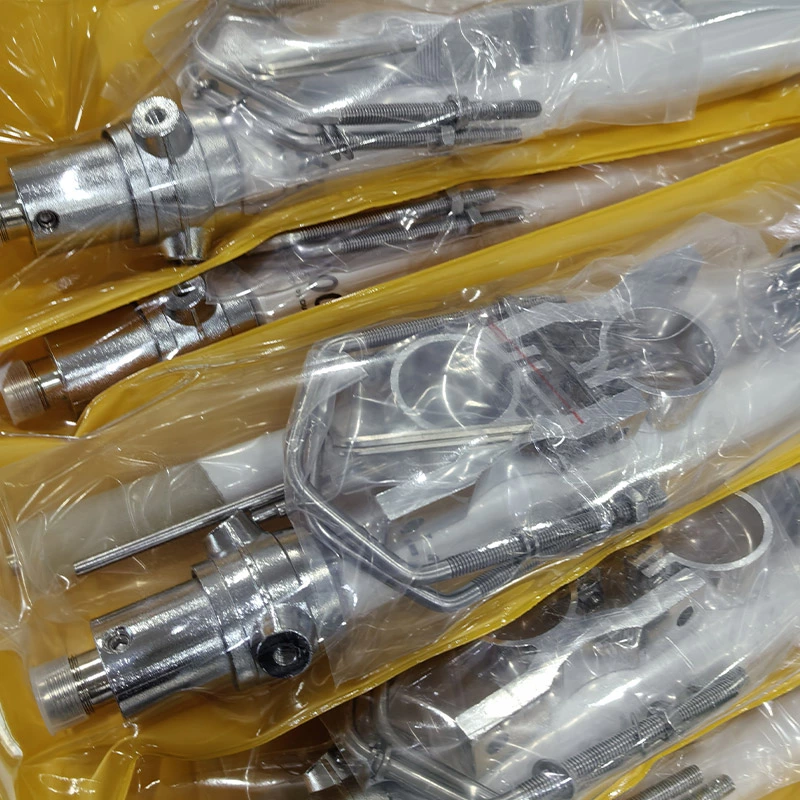

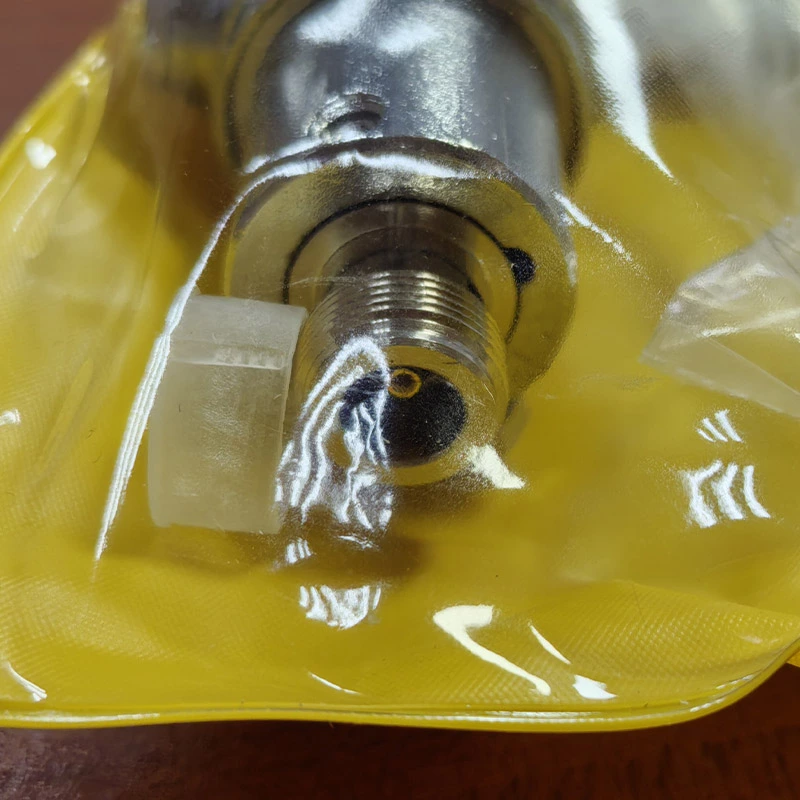

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
