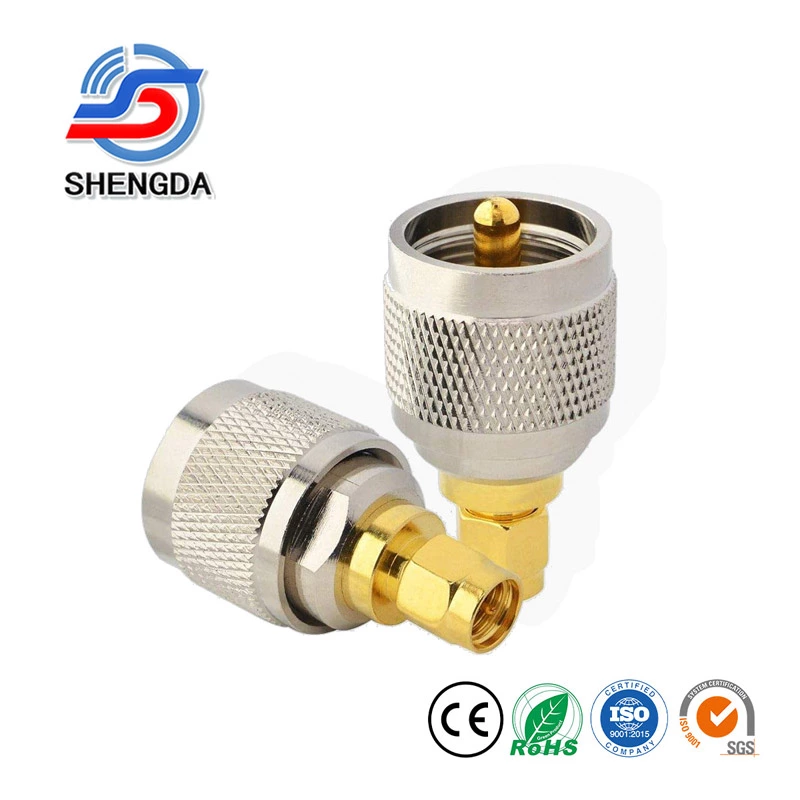

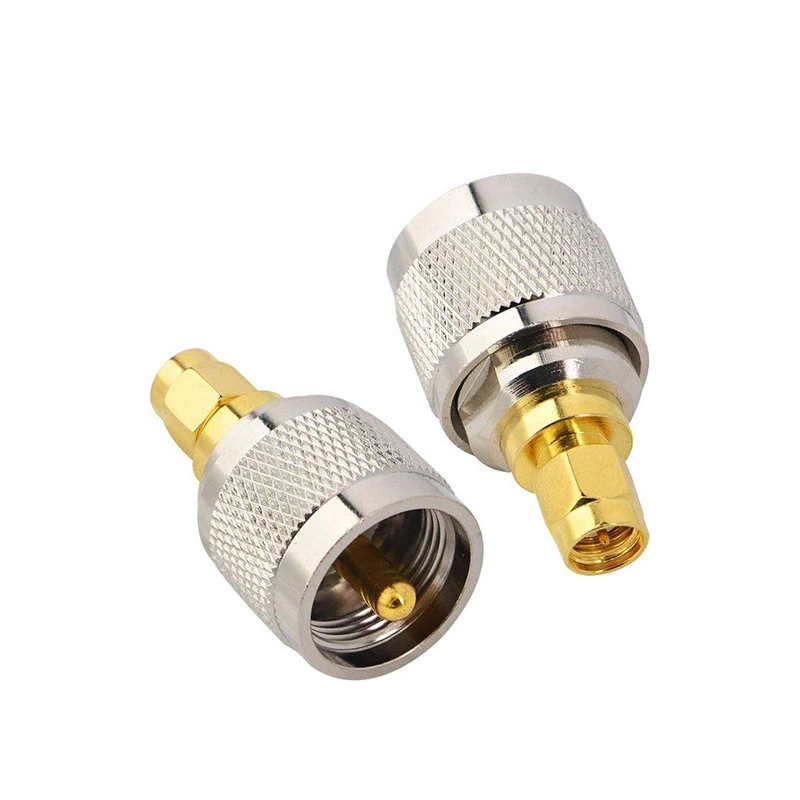

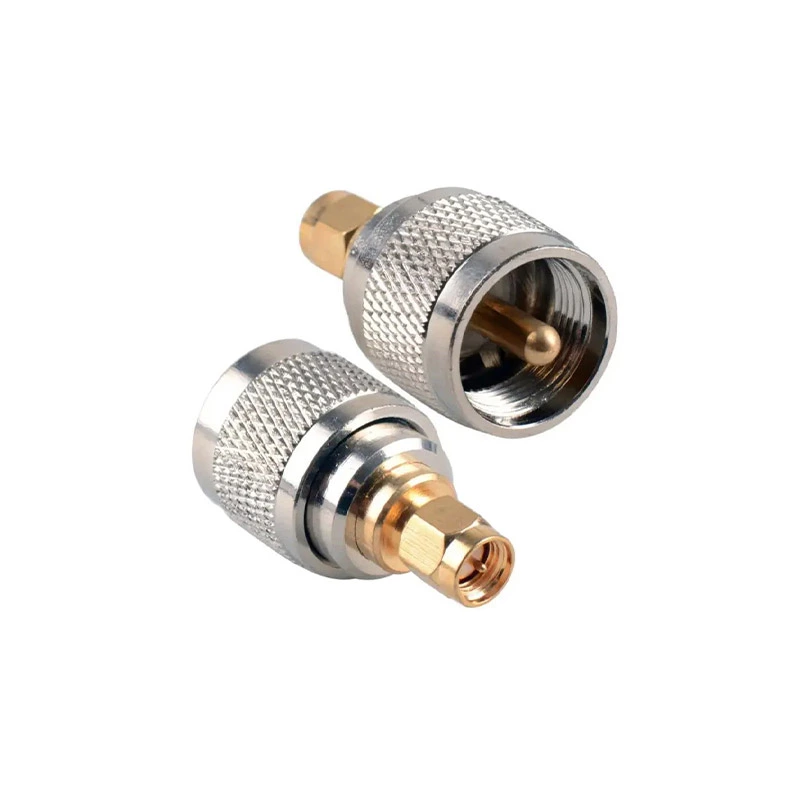

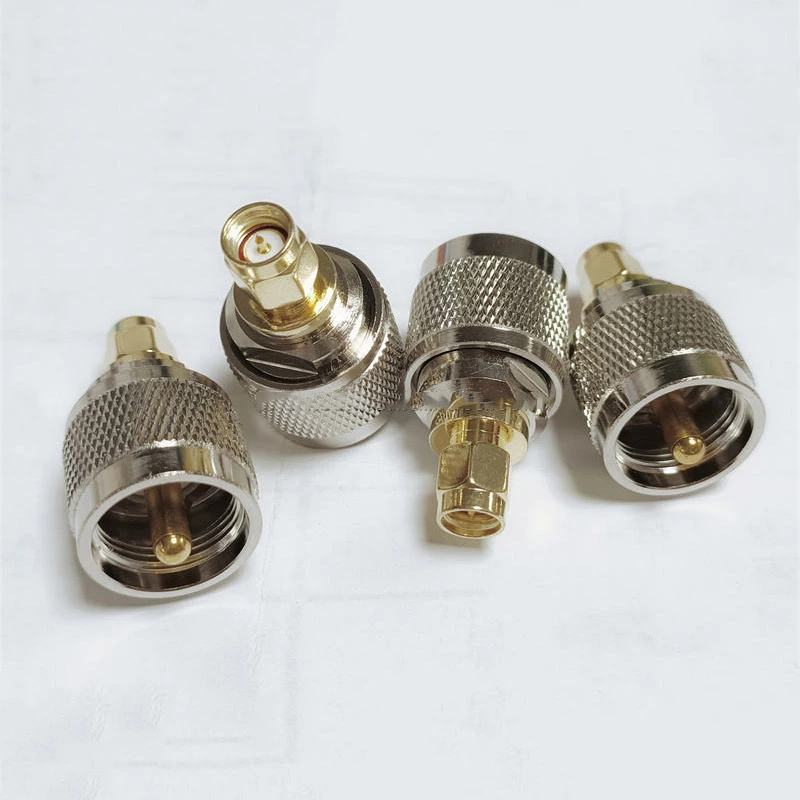

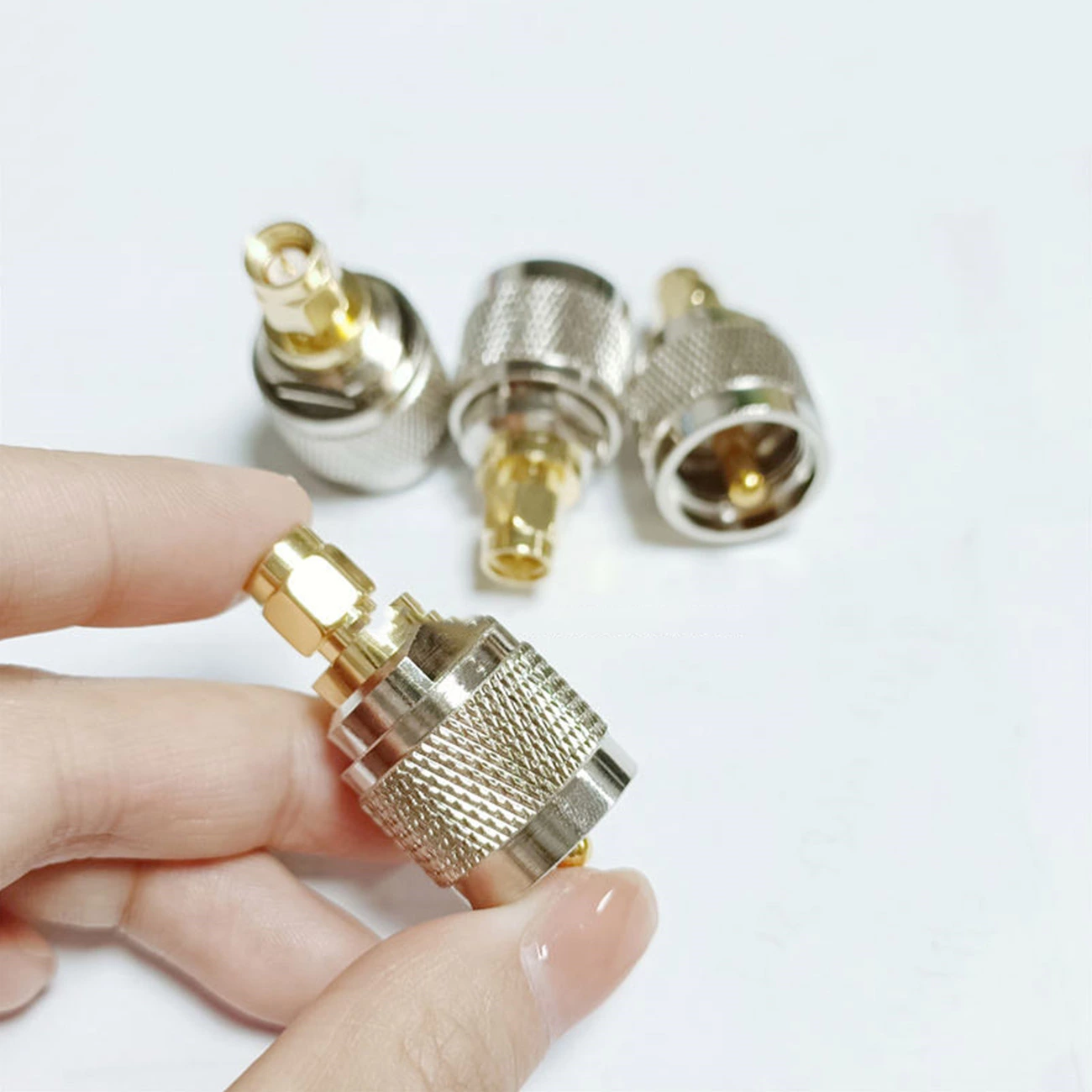

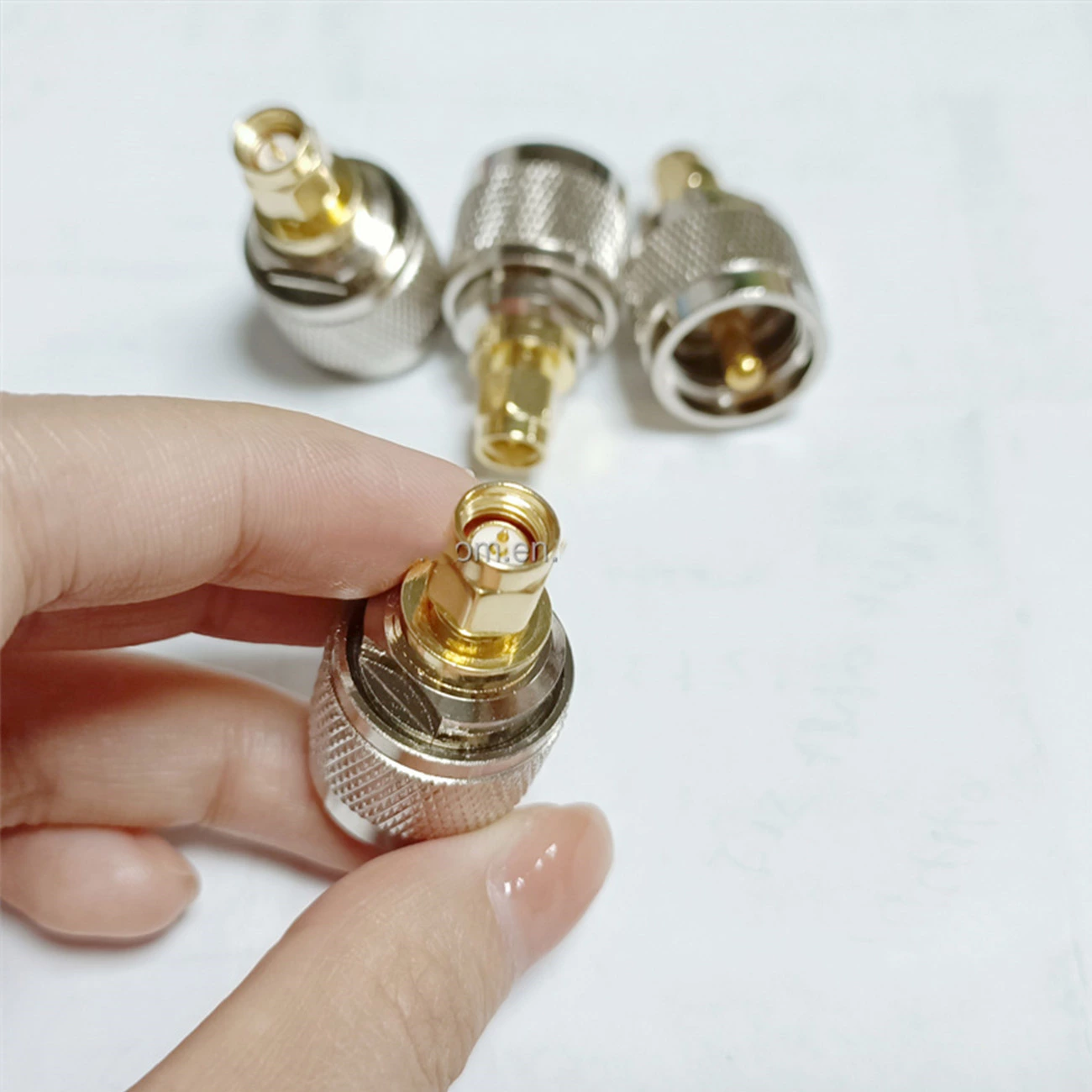

SMA Male to PL259 Walkie Talkie Antennas Broadcast Radios WiFi Low Loss UHF Male Adapter Coaxial Connector
- Model No.
- SMA-Male to PL259
- Type
- Antenna Adapter
- Place of Origin
- China
- Connector
- SMA-Male to PL259
- Impedance
- 50
- Material
- Copper,Stainless Steel
- Connector 1
- SMA-Male
- Connector 2
- UHF-Male(PL259)
Characteristic
Wideband compatibility: Supports DC-300MHz operating frequency, 50Ω impedance matching, VSWR ≤ 1.25 @ 200MHz, and is suitable for converting 2.4GHz WiFi to UHF broadcast signals.
Low-loss design: Gold-plated phosphor bronze contacts and PTFE insulation layer combine to achieve insertion loss < 0.15dB @ 100MHz, exceeding MIL-STD-348 standard interface performance.
Core Performance
Dual locking mechanism: The SMA end features a 2.4mm threaded lock (torque ≥ 0.8 N·m), while the PL259 end features a 7/16" threaded reinforcement with a tensile strength >120N.
Environmental protection: The nickel-plated brass housing has passed a 48-hour salt spray test, with a contact resistance variation of <5mΩ over a temperature range of -40°C to +85°C.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.
- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
