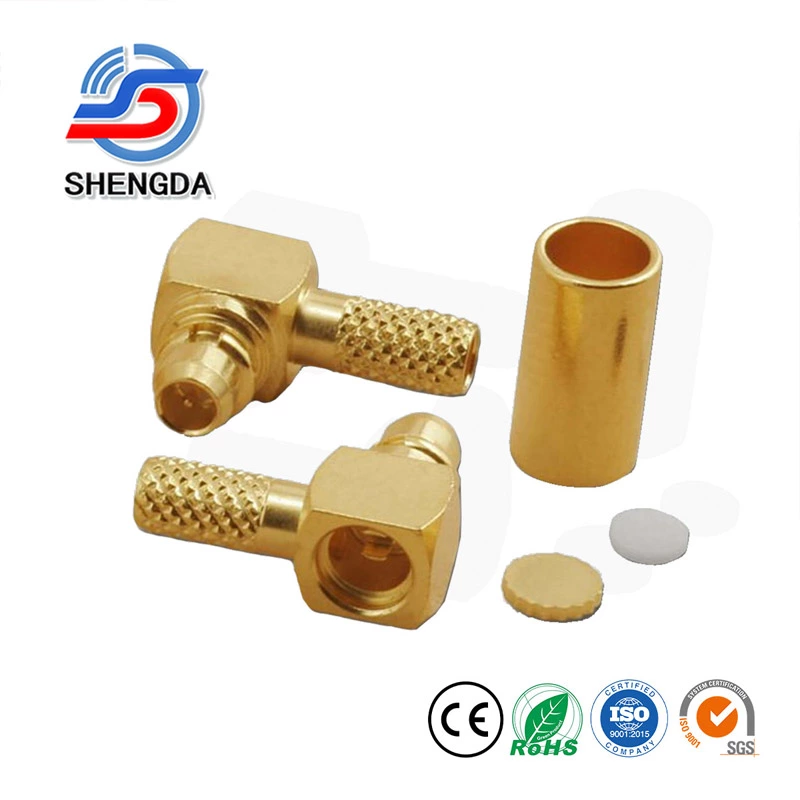

MMCX Jack Female Right Angle 90 Degree Crimp for RG174 RG316 RG178 Cable Connector
- Model No.
- MMCX
- Type
- Antenna Adapter
- Place of Origin
- China
- Connector
- MMCX Right Angle
- Impedance
- 50
- Material
- Copper,Stainless Steel
Characteristic
Wide Band Coverage: Supports DC-6 GHz operating frequencies, features 50Ω impedance matching, and a VSWR ≤ 1.25 @ 4 GHz, meeting the high-frequency signal transmission requirements of 5G small base stations and IoT devices.
Military-Grade Contact Design: Gold-plated beryllium copper alloy center conductor, with a mating lifespan of >500 cycles and a stable contact resistance below 3 mΩ.
Core Performance
Space Optimization: A 90° right-angle design reduces installation space by 30% and is 50% smaller than standard SMA connectors.
Triple Crimp Guarantee: A unique copper sleeve + tin layer + stainless steel ring crimp structure offers a tensile strength of >40N and is compatible with wire diameters from RG174 (1.6mm) to RG316 (2.6mm).
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

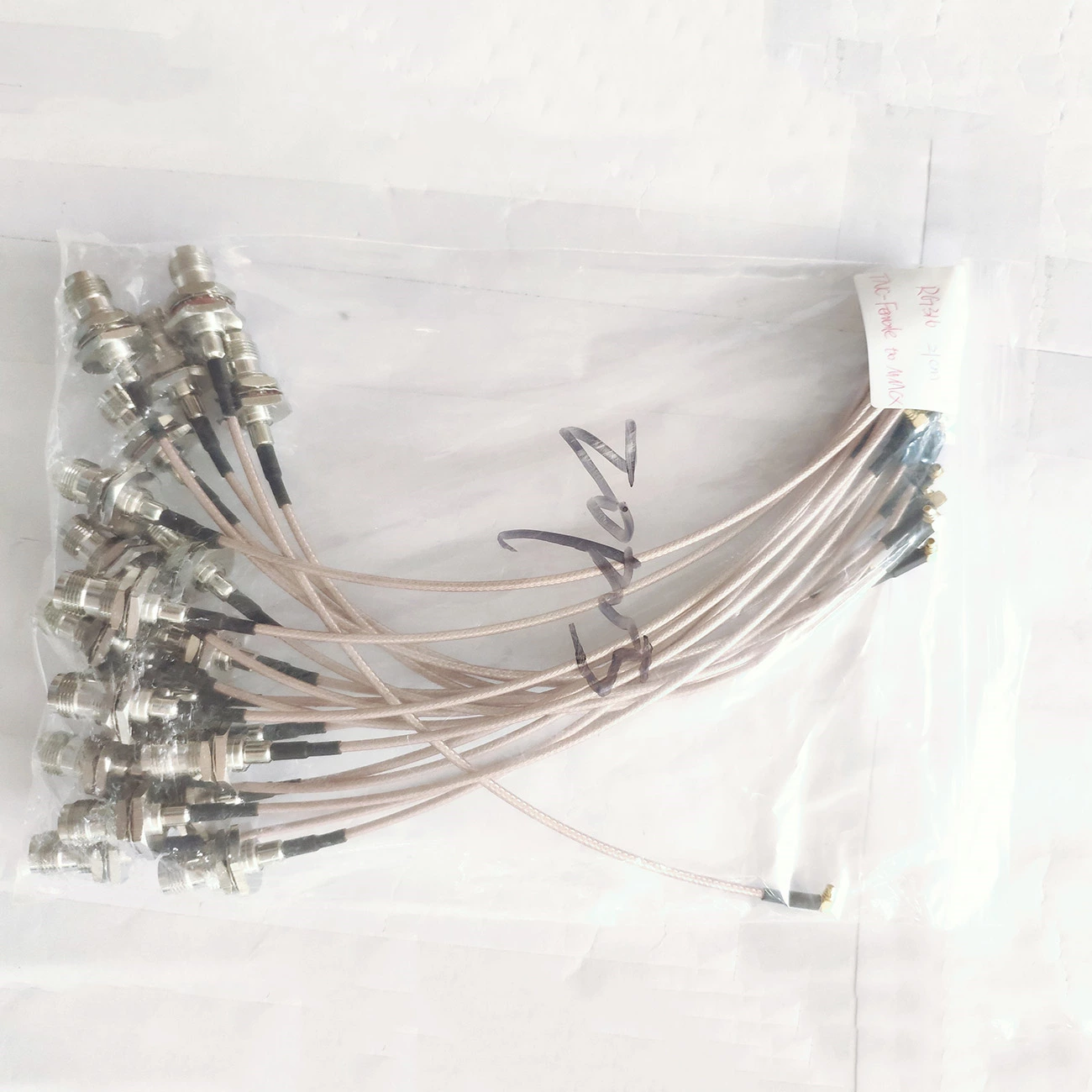

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.

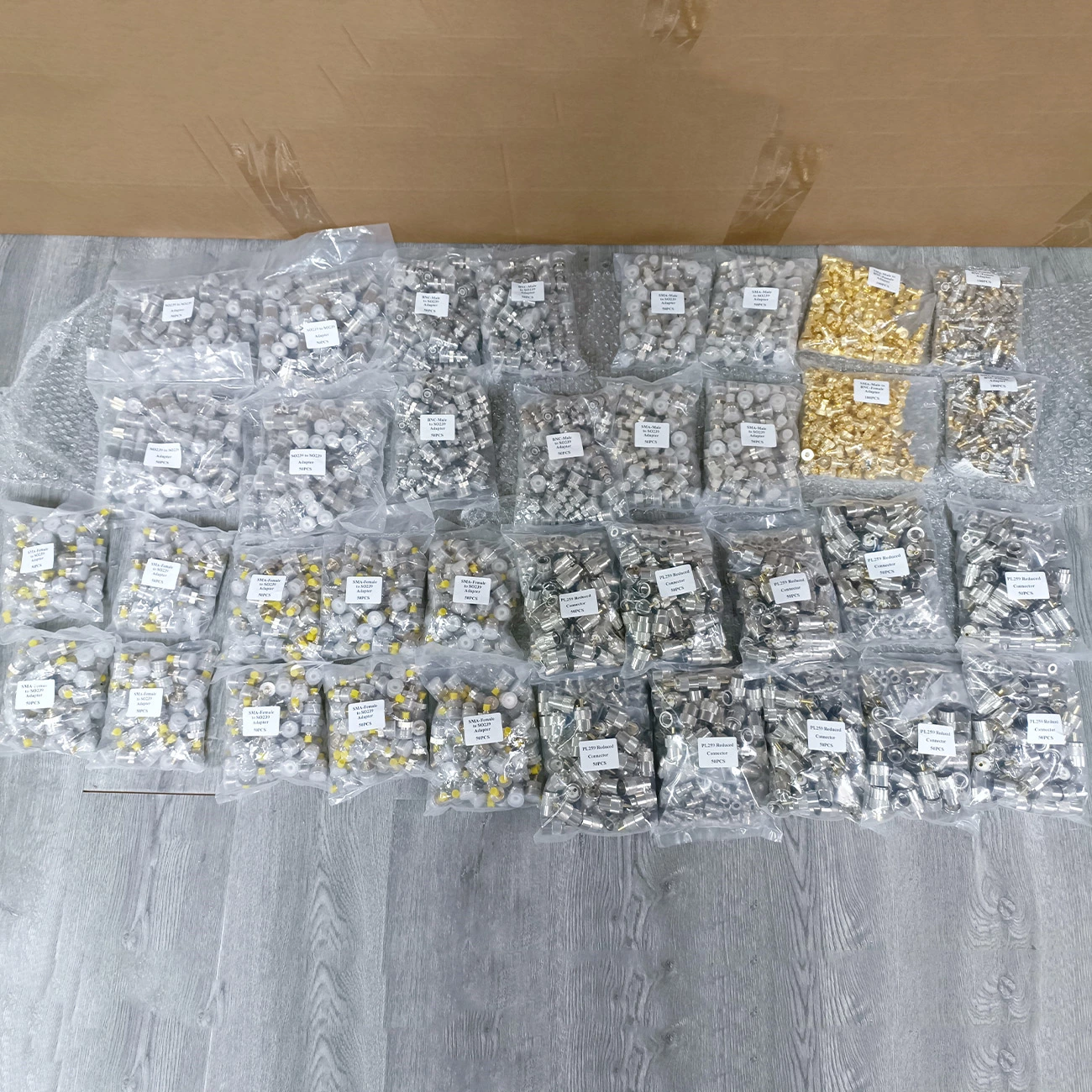

- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
