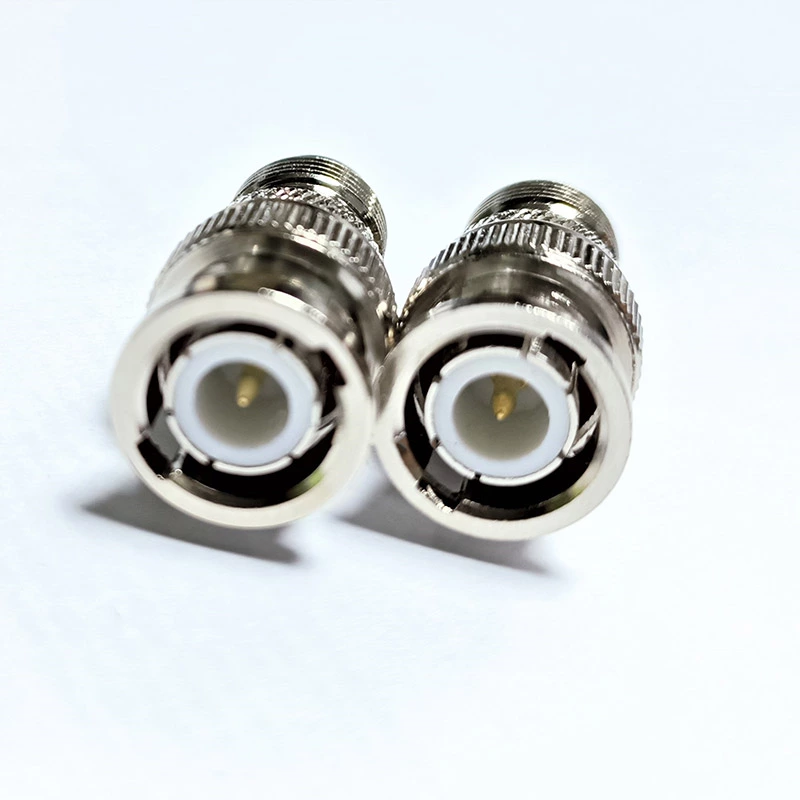

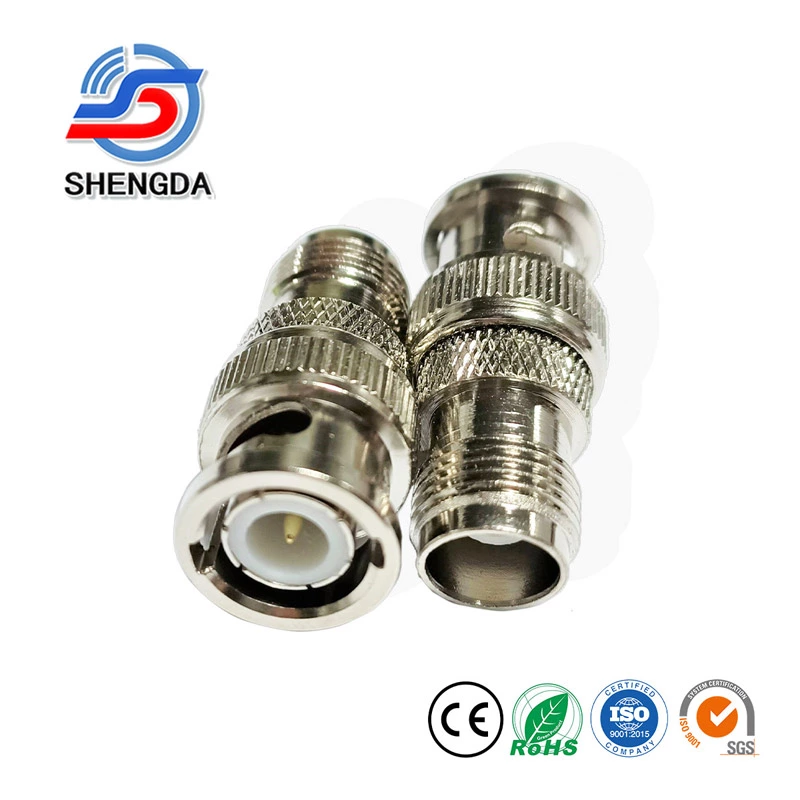

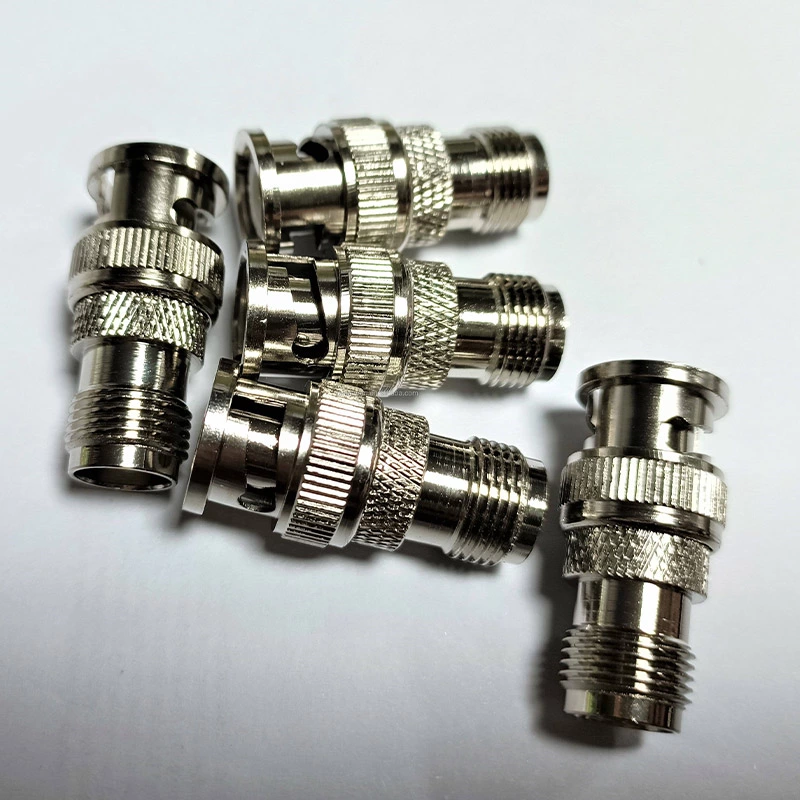

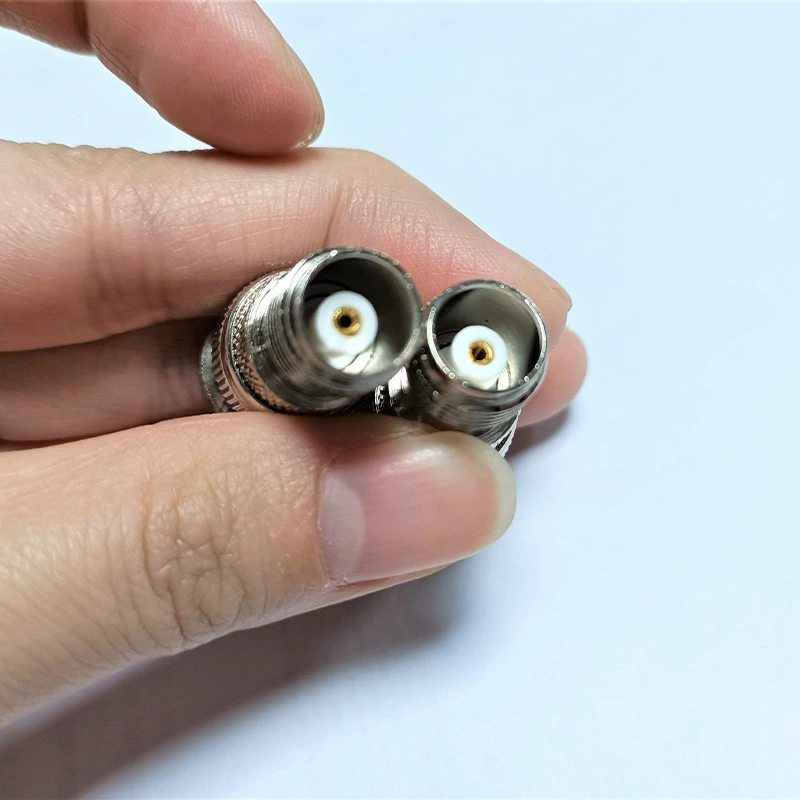

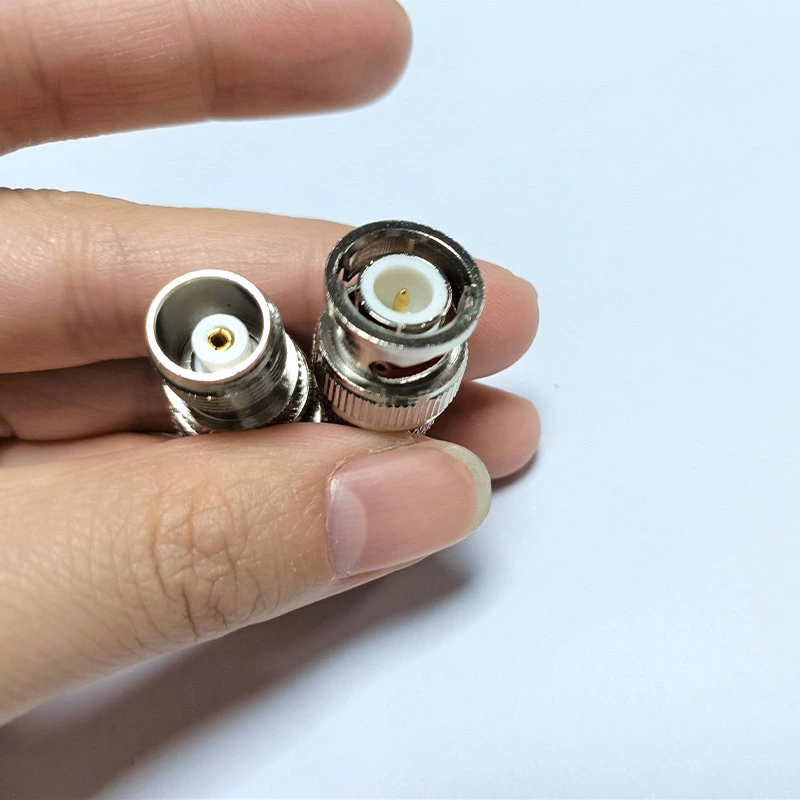

BNC Male to TNC female RF Connector Straight RF coaxial Coax Adapter
- Model No.
- BNC-Male to TNC-Female
- Type
- Antenna Adapter
- Place of Origin
- China
- Connector
- BNC-Male to TNC-Female
- Material
- Copper,Stainless Steel
- Connector 1
- BNC-Male
- Connector 2
- TNC-Female
Characteristic
Wide frequency coverage: Supports DC-6 GHz operating frequencies, 50Ω impedance matching, VSWR ≤ 1.25 @ 4 GHz, and is compatible with 5G Sub-6 GHz (n78 band) and WiFi 6 (5.8 GHz) applications.
Gold-plated contact system: Beryllium copper alloy center conductor is gold-plated, with a contact resistance of < 2 mΩ, ensuring signal integrity after 1,000 plug-in cycles.
Core Performance
Dual-mode locking mechanism: The BNC port features a bayonet-style quick-release (270° rotation and lock), while the TNC port features 7/16-28 thread reinforcement. Vibration resistance reaches 15G (MIL-STD-202 standard).
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

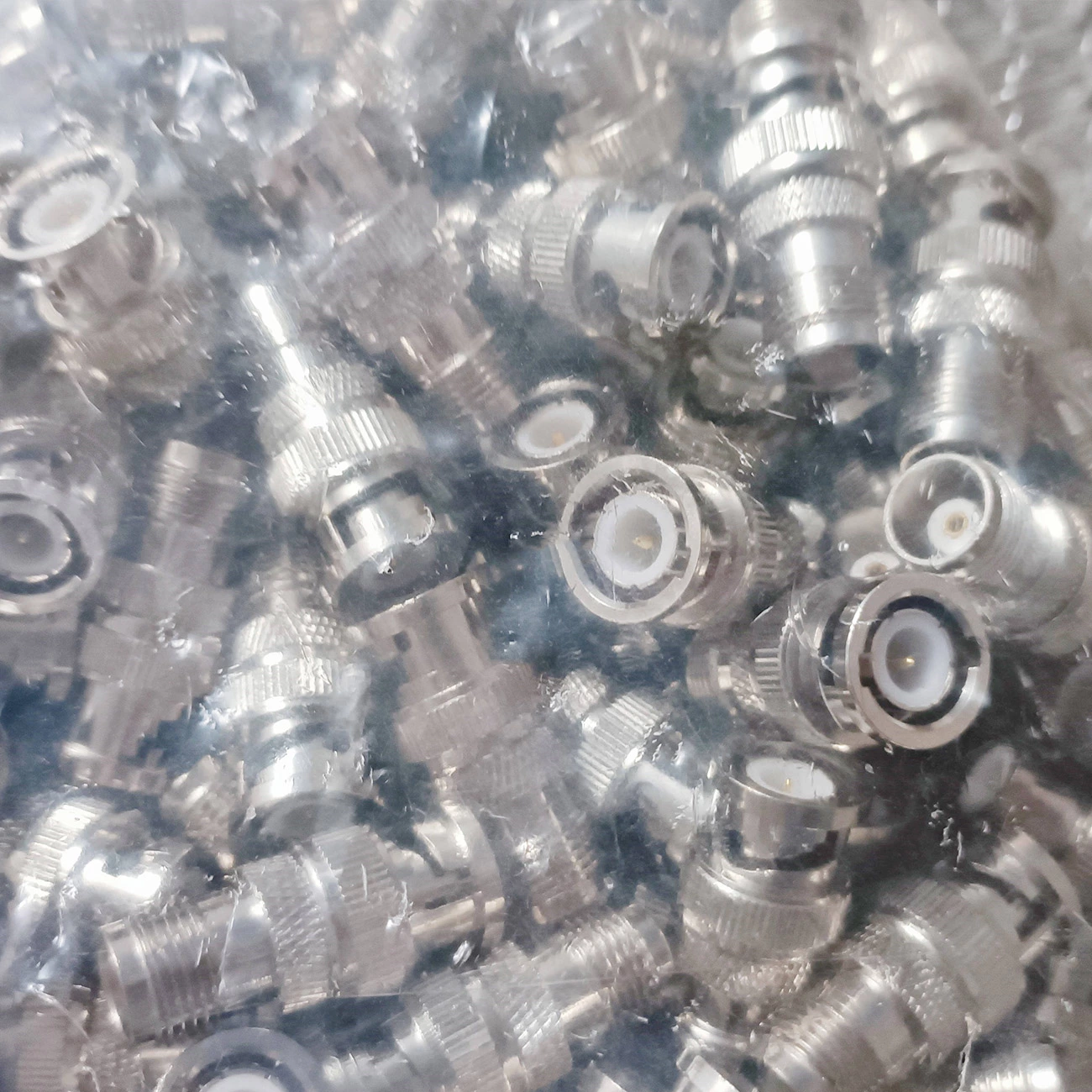

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
