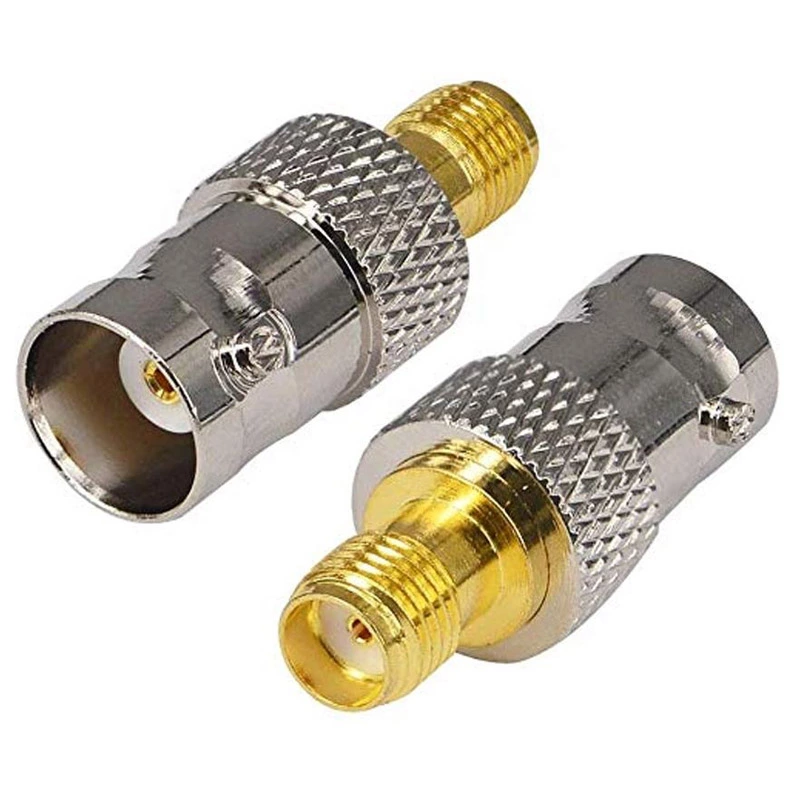

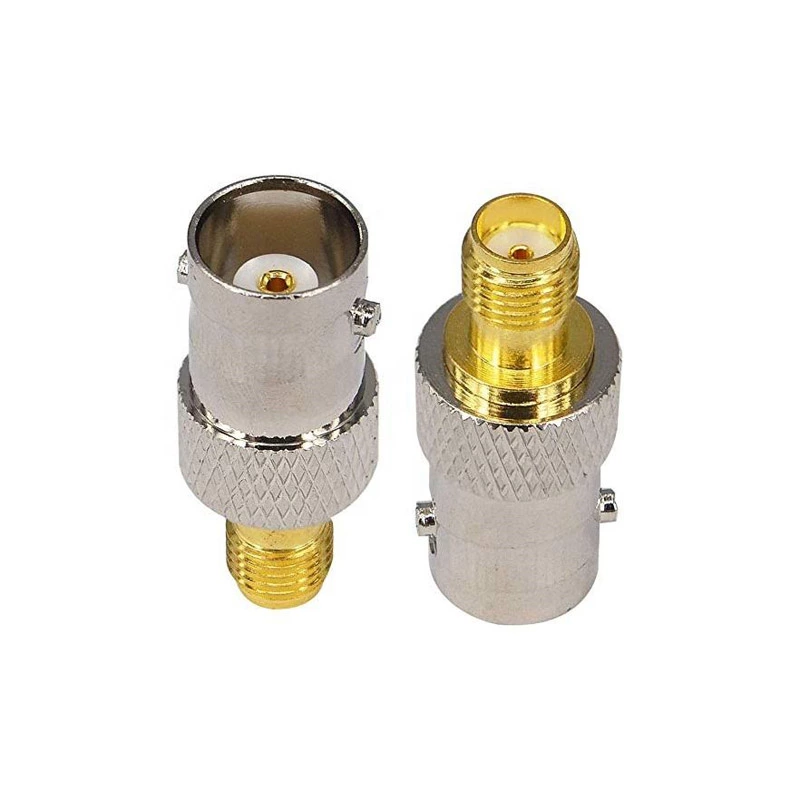

BNC Female to SMA Female RF Coaxial Adapter BNC to SMA Coax Jack Antenna Connector for RF Antennas Wireless LAN Devices
- Model No.
- BNC Female to SMA Female
- Type
- Antenna Adapter
- Place of Origin
- China
- Connector
- BNC Female to SMA Female
- Impedance
- 50 Ohm Antenna Surge protector
- Material
- Copper,Stainless Steel
Characteristic
Wideband Compatibility: Supports DC-4 GHz operating frequencies, features 50Ω impedance matching, and a VSWR ≤ 1.25, ensuring lossless signal transmission between wireless LAN devices and test instruments.
Core Performance
Dual Locking Mechanism: The BNC end features a bayonet-style quick-release design, while the SMA end features a 1/4-turn thread for reinforcement. Vibration resistance is MIL-STD-202 certified.
Environmental Adaptability: The nickel-plated housing withstands salt spray for 96 hours and operates in a temperature range of -40°C to +105°C, meeting the requirements for outdoor communication equipment deployment.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

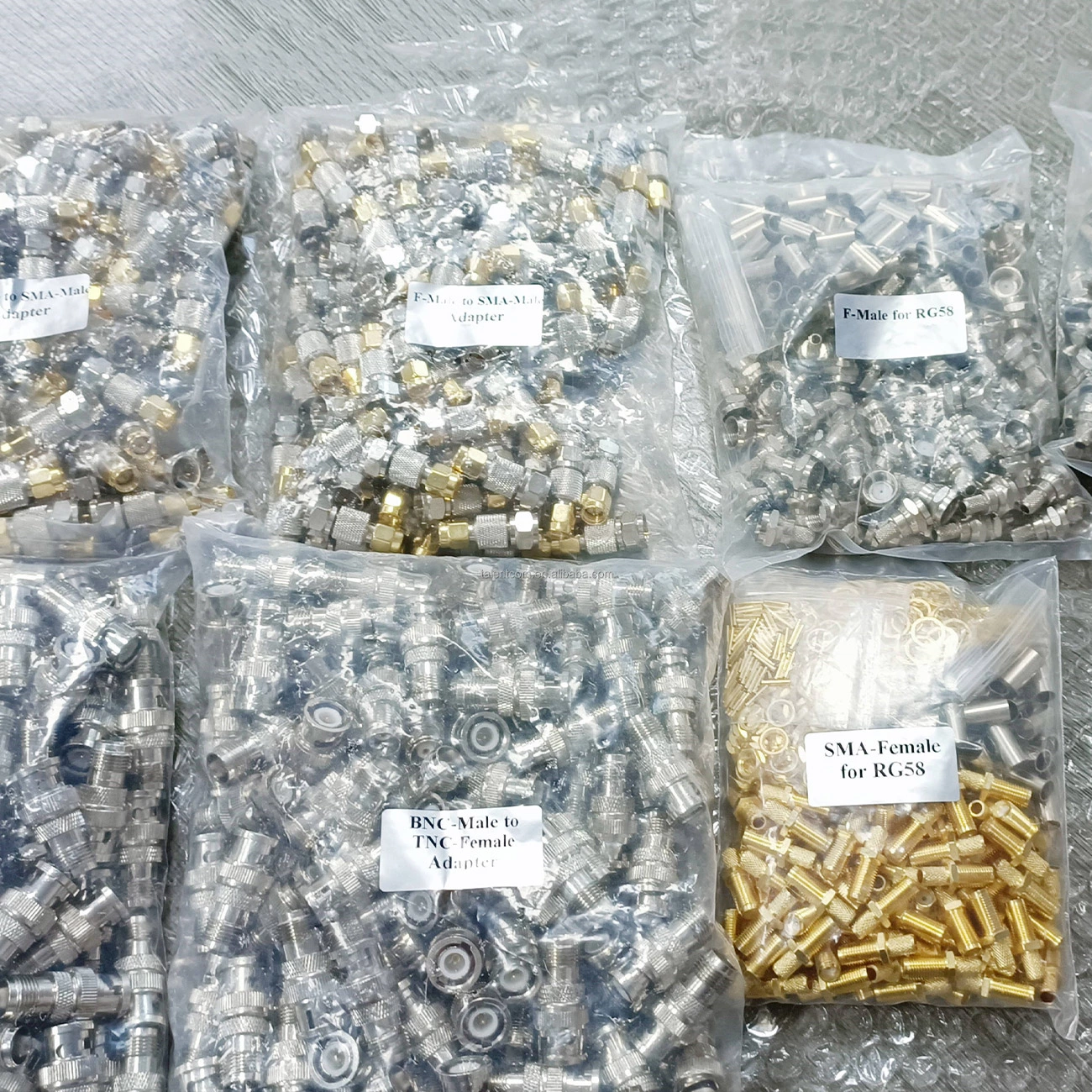

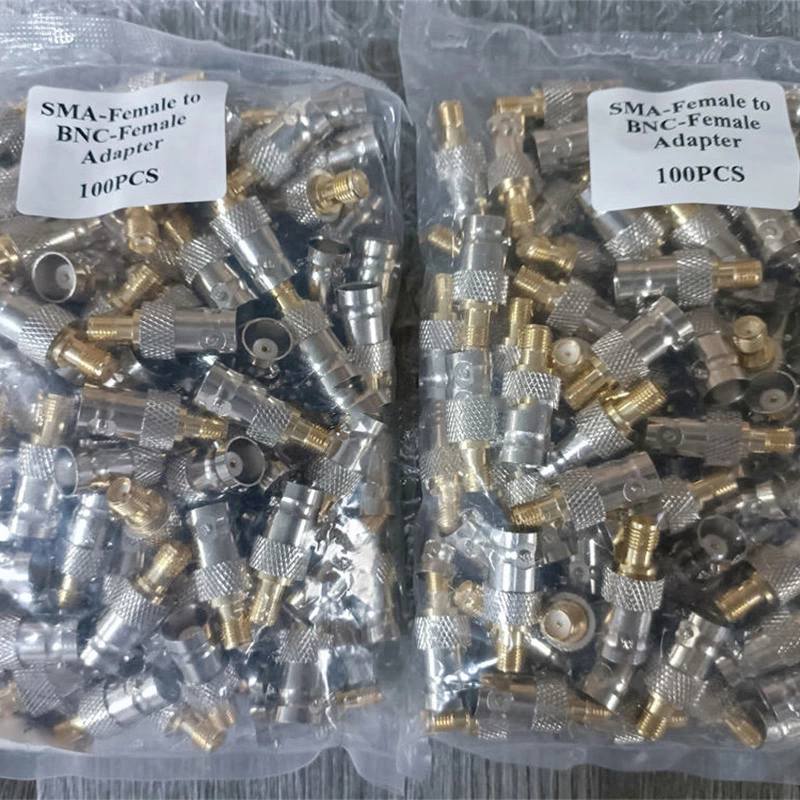

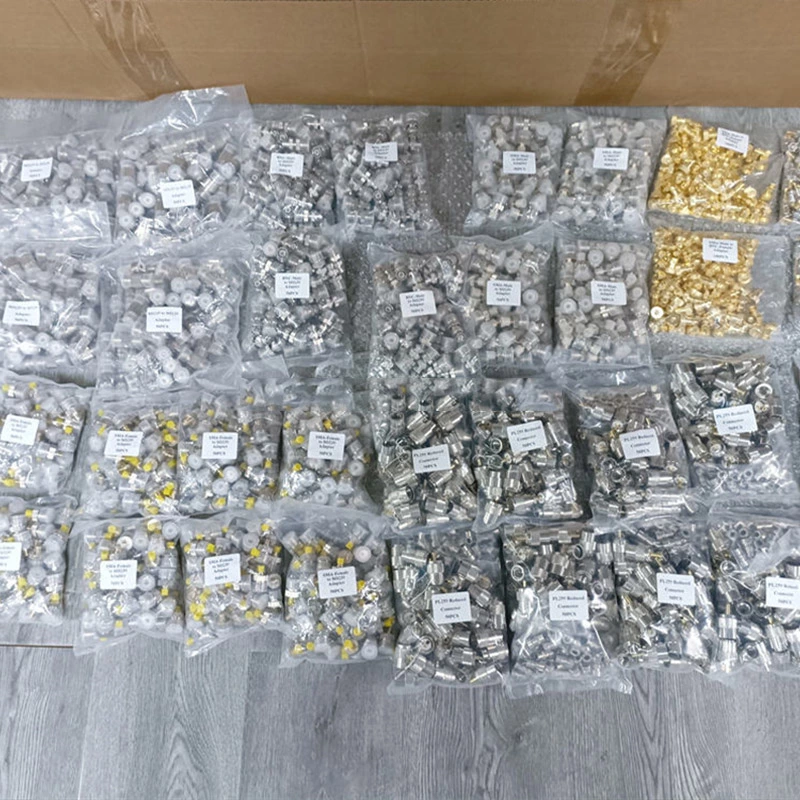

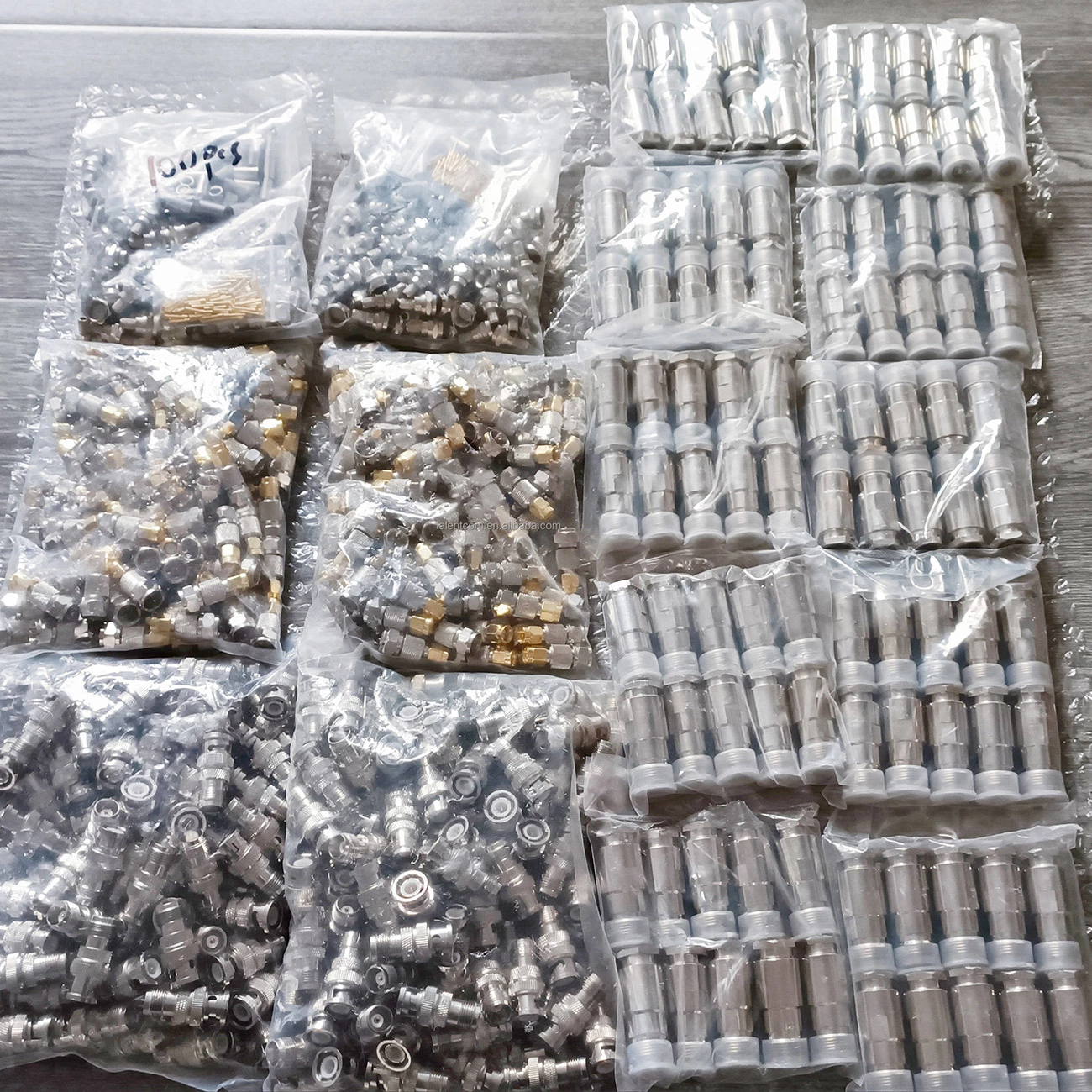

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
