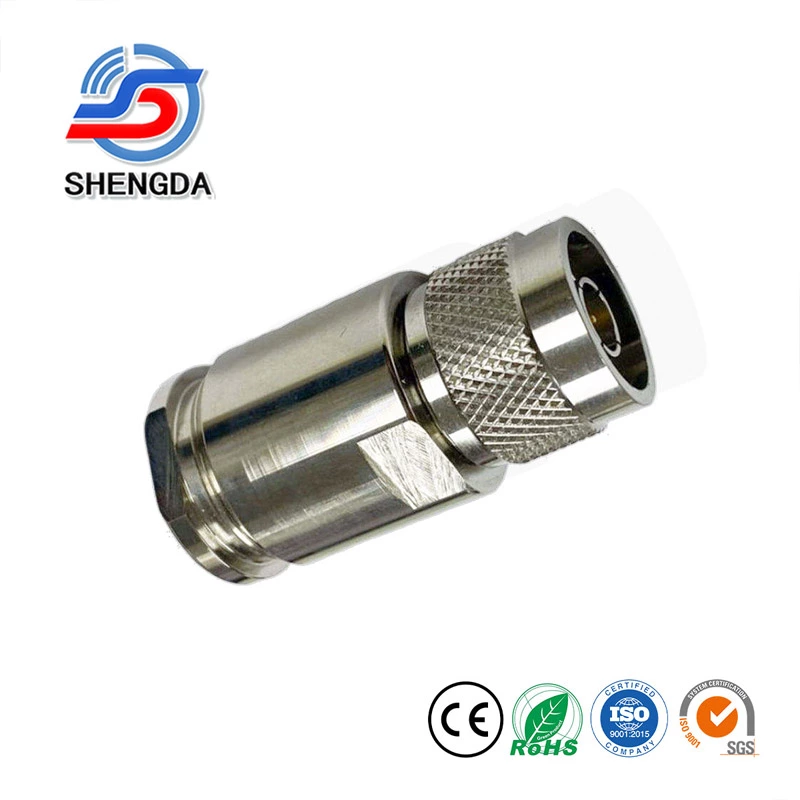

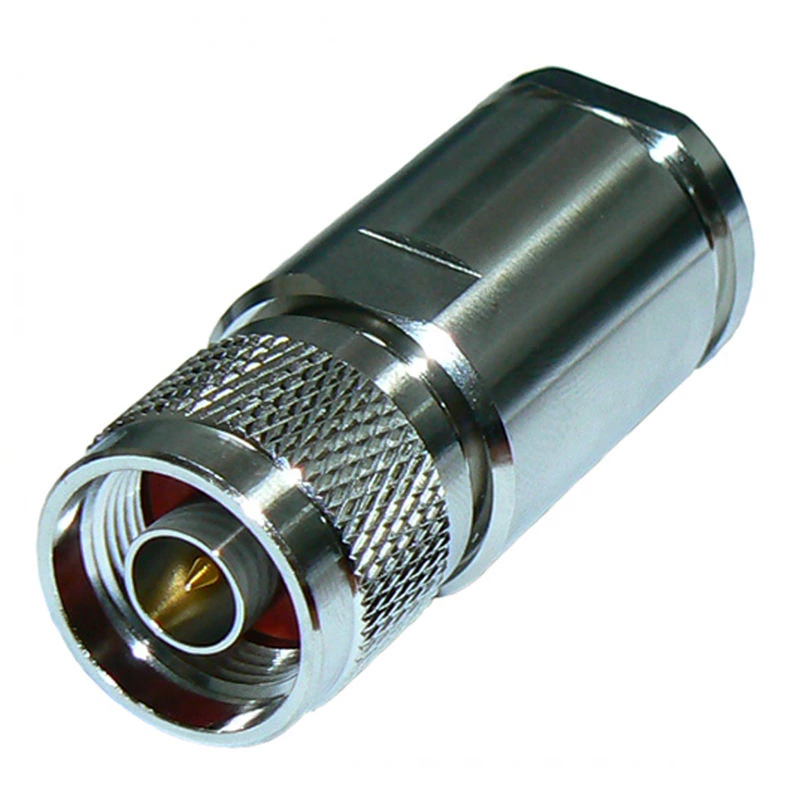

50 ohm RF Coaxial Connector N type male Straight Clamp Connector For Coaxial LMR300 RG58 LMR400 LMR600 5D-FB Cable
- Model No.
- N-Male
- Type
- Antenna Adapter
- Place of Origin
- China
- Connector
- N-Male
- Impedance
- 50
- Material
- Copper,Stainless Steel
Characteristic
Wideband coverage: Supports DC-11 GHz operating frequency, 50Ω impedance matching, and VSWR ≤ 1.25 @ 6 GHz, meeting the requirements of 5G mid-band (n77/n78) and satellite communications (C-band).
Low-loss design: Combination of silver-plated beryllium copper inner conductor and PTFE dielectric achieves insertion loss < 0.15 dB/m @ 3 GHz, exceeding MIL-STD-348 standards.
Core Performance
All-metal crimping system: nickel-plated brass housing with stainless steel clamps, tensile strength >300N, compatible with various wire diameters from LMR600 (16mm) to RG58 (5mm).
Environmental durability: IP67 protection, MIL-STD-810G vibration tested, and a wide operating temperature range of -40°C to +125°C.
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

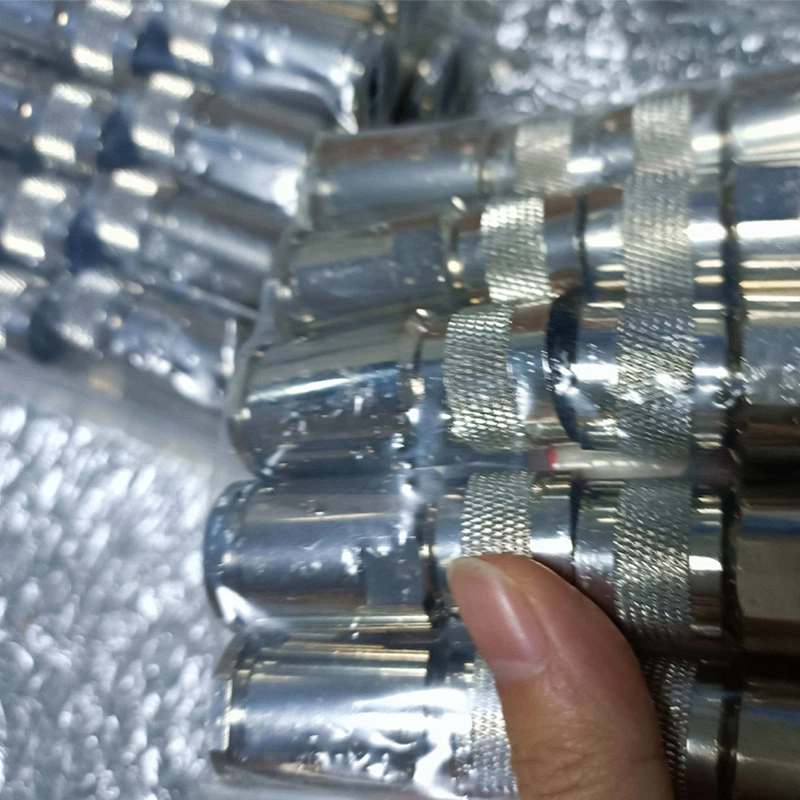

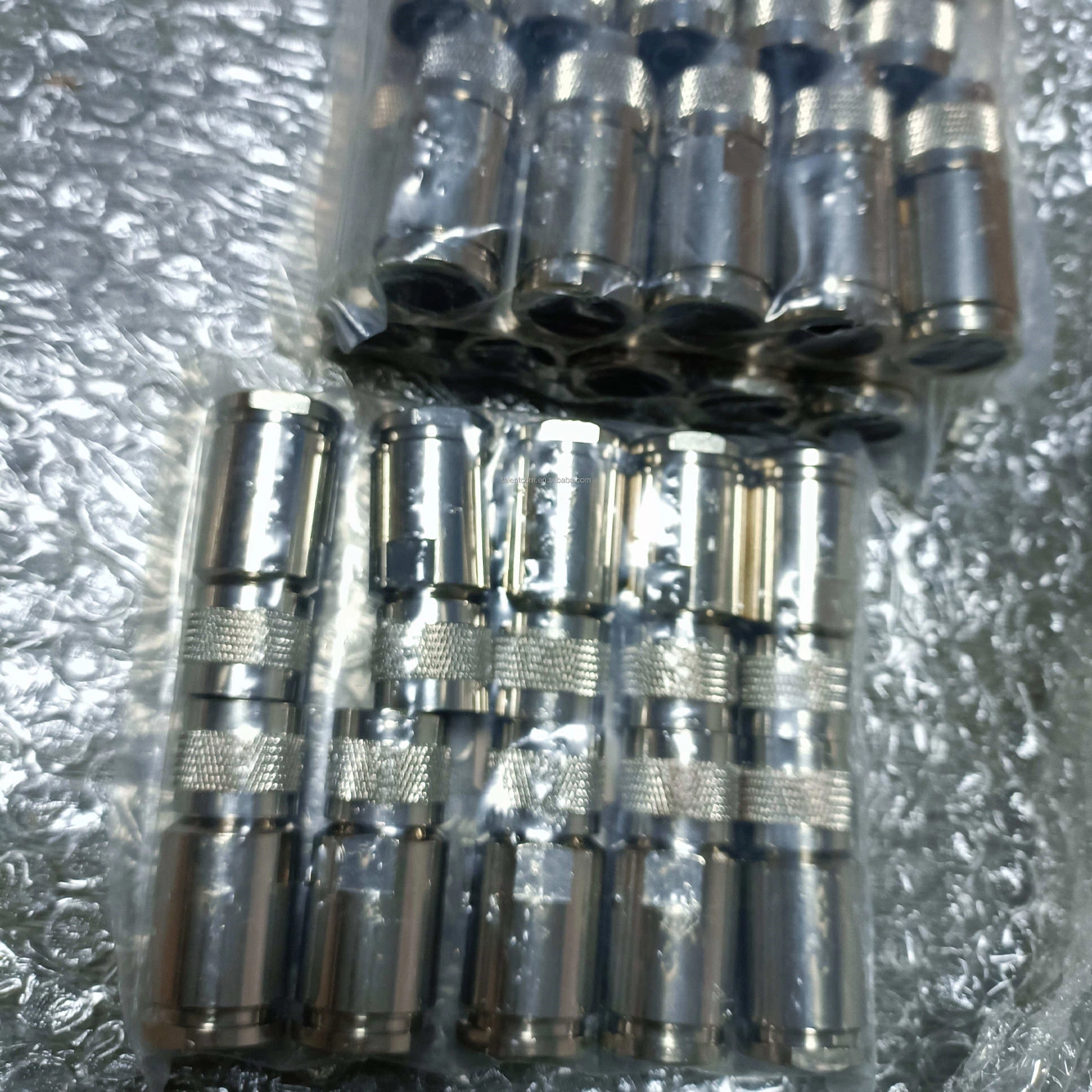

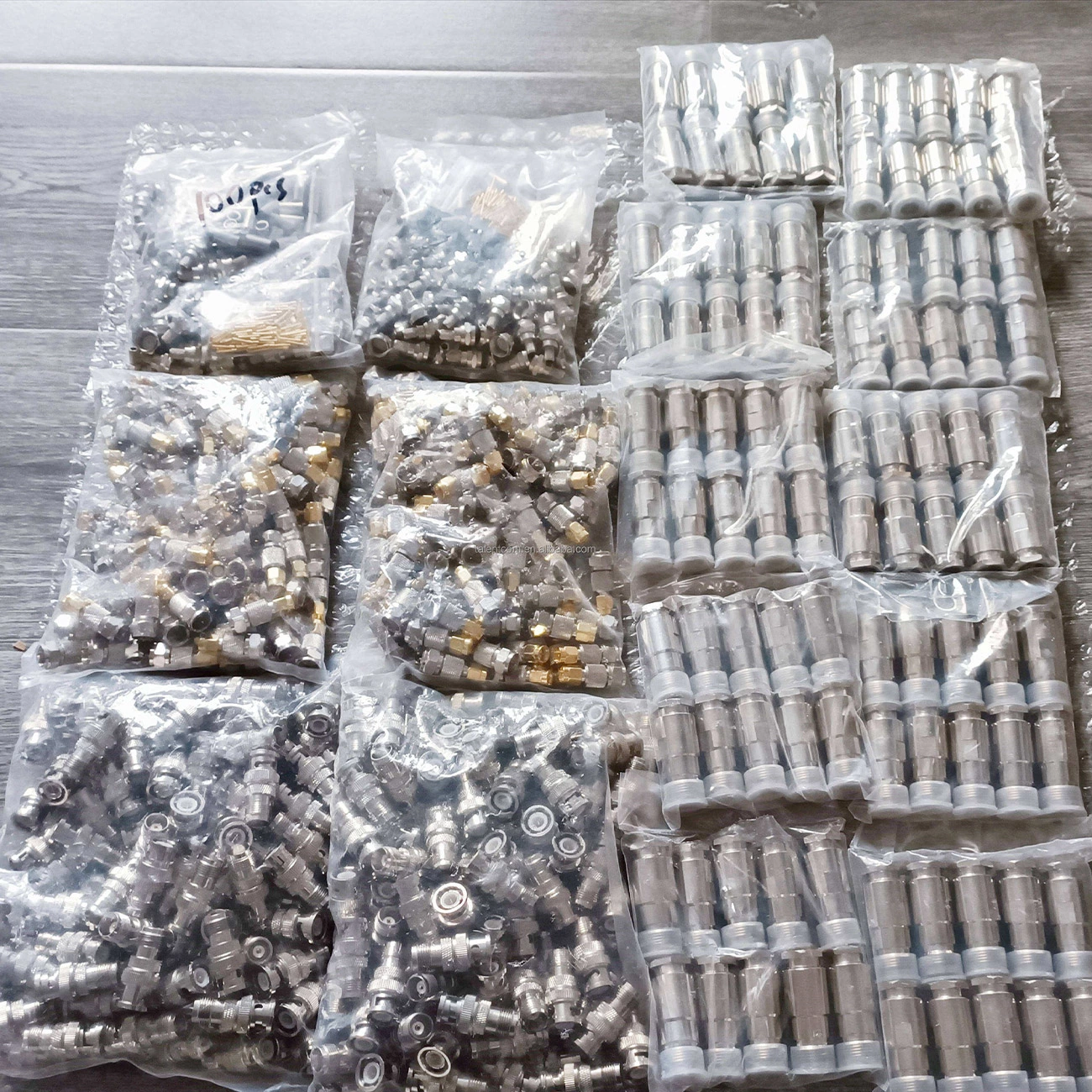

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
