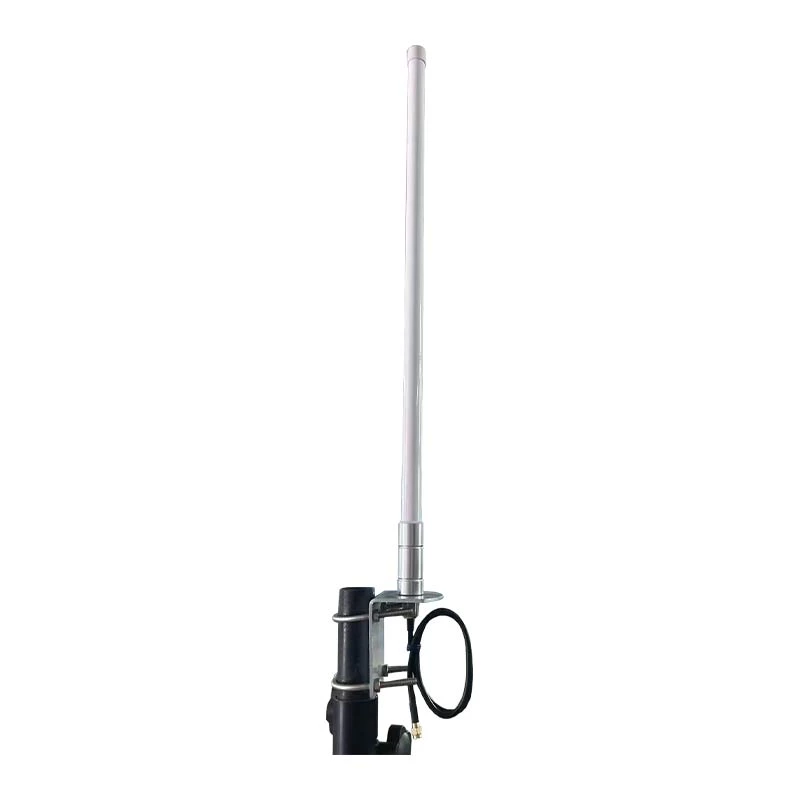

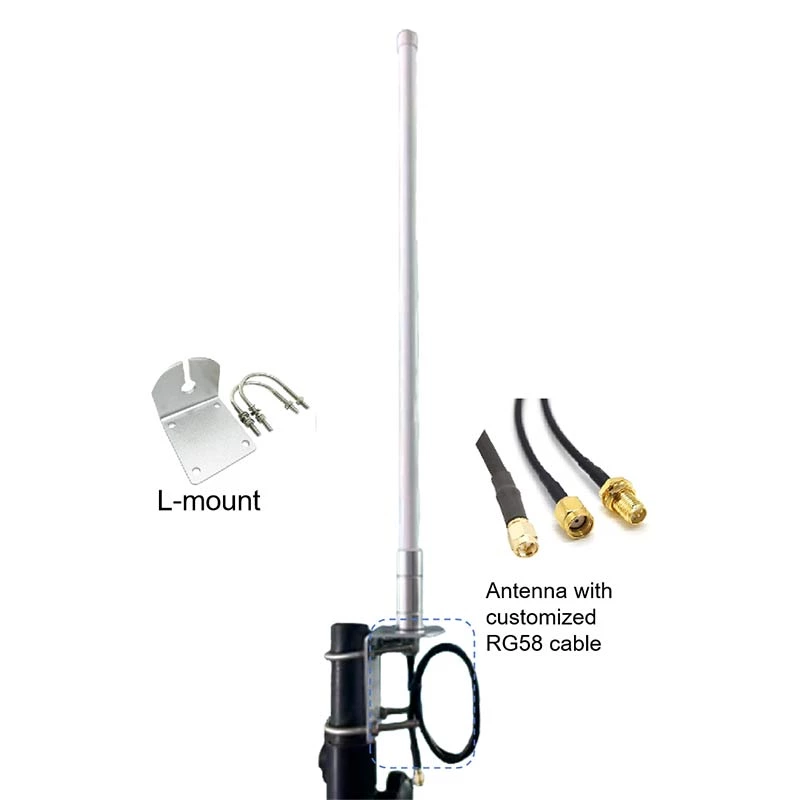

BF80-5G N-Male Outdoor Antenna – 600~6000MHz 5G FRP Waterproof Omni Antenna (5M Low Loss RG58 Cable)
- Model No.
- BF80-5G
- Type
- 4G/5G
- Place of Origin
- China
- Frequency Range
- 600-6000MHz
- Gain
- 7.5dBi
- Connector
- N-Male
- Accept OEM
- yes
- Length
- 850mm
- Material
- Fiberglass
Characteristic
Applicable to 5.8GHz system, the antenna has stable performance, easy installation, wind resistance, waterproof and good anti-corrosion performance. It is an ideal communication antenna for various types of networking and point-to-multipoint transmission.
Core Performance
Broadband coverage
50W power handling
7.5 dBi omnidirectional radiation pattern
Rugged construction to withstand repeated impacts at speeds over 30MPH
Weatherproof antenna
Open spring base with drainage holes
Type-N (male) RF connector
Transport
We can deliver the goods to your country for you. We will load the containers for you free of charge to ensure that the goods will not be damaged during transportation.
You can either use our freight forwarding service or arrange it yourself. It all depends on you.
Although the deployment process is relatively simple, we do not currently offer installation services. However, we can provide on-site technical support for you.

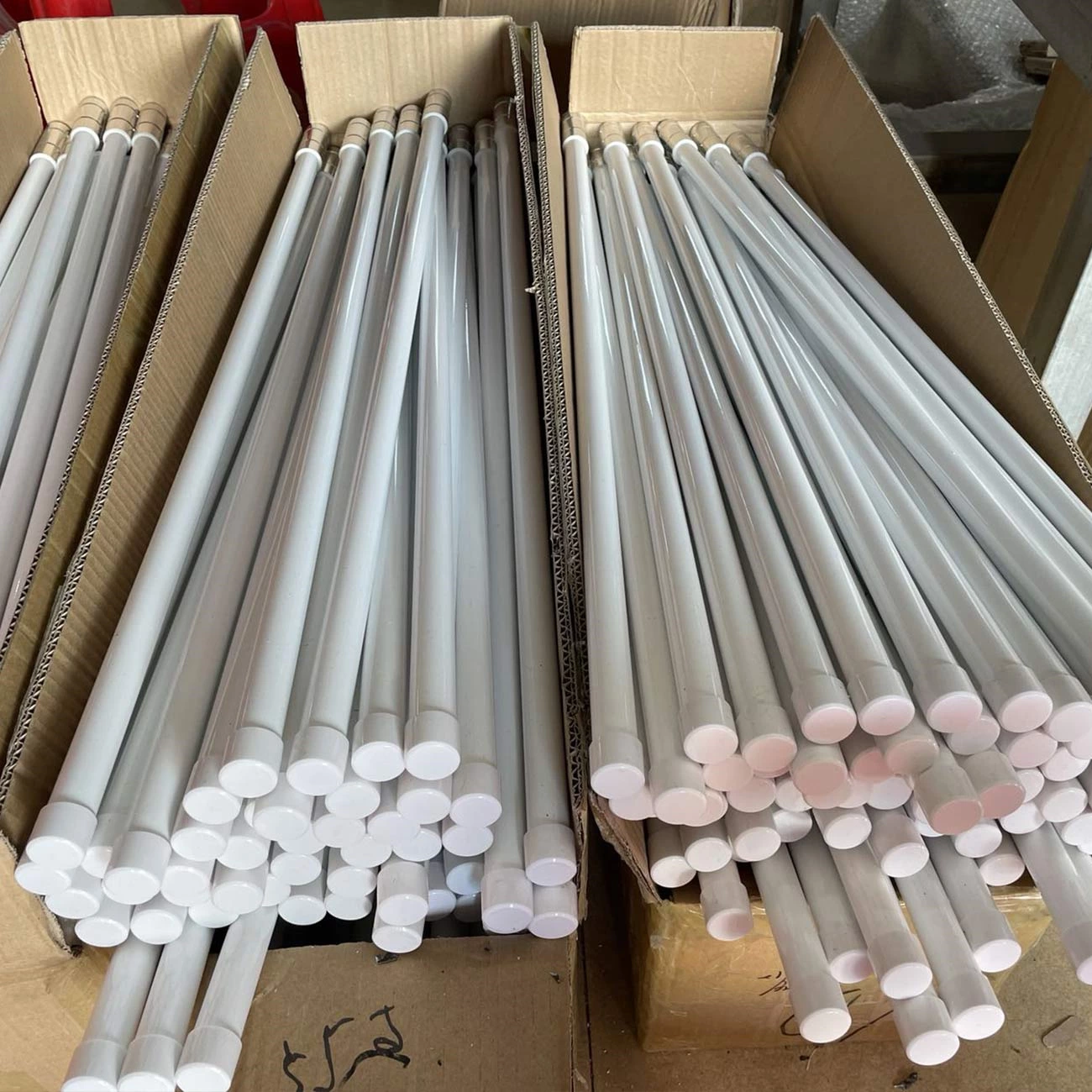

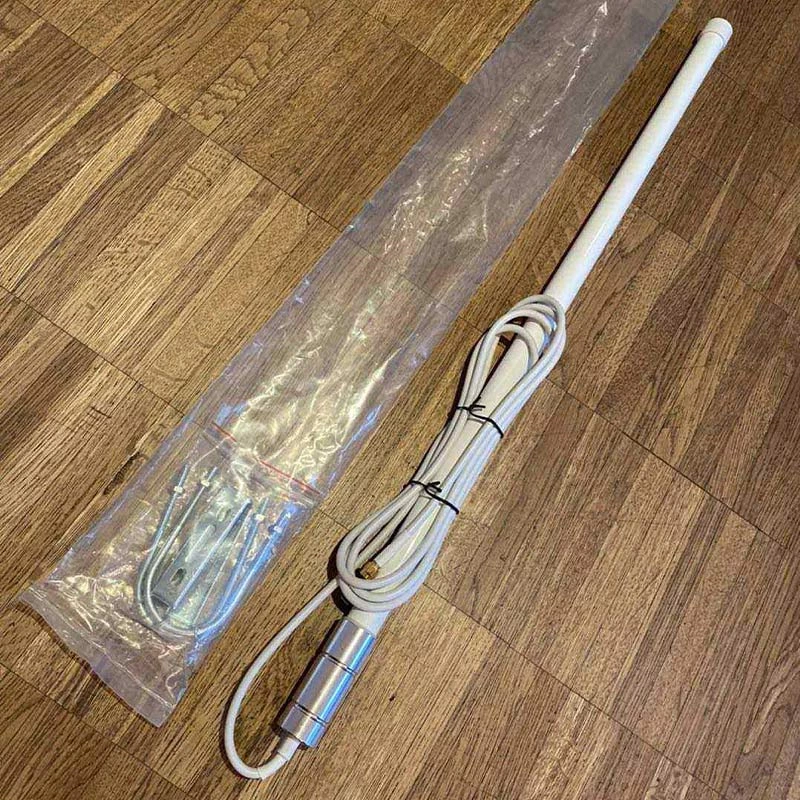

- part of antenna is individual packed in PE/PVC Bag.
- Each antenna will be tuned to best performance before delivery.
- We will provide customized packaging services based on the size of your antenna products (such as length, diameter, interface type, etc.) to ensure zero damage during transportation.
- All packages have passed the 1.2m drop test
During the installation process, avoid any collisions.
It is strictly prohibited to disassemble the antenna components; otherwise, it may lead to poor antenna performance.
The installation position of the antenna should be free of any obstructions.
When used outdoors, it is necessary to equip with lightning protection facilities.
may contain electronic components. Do not discard them randomly.
